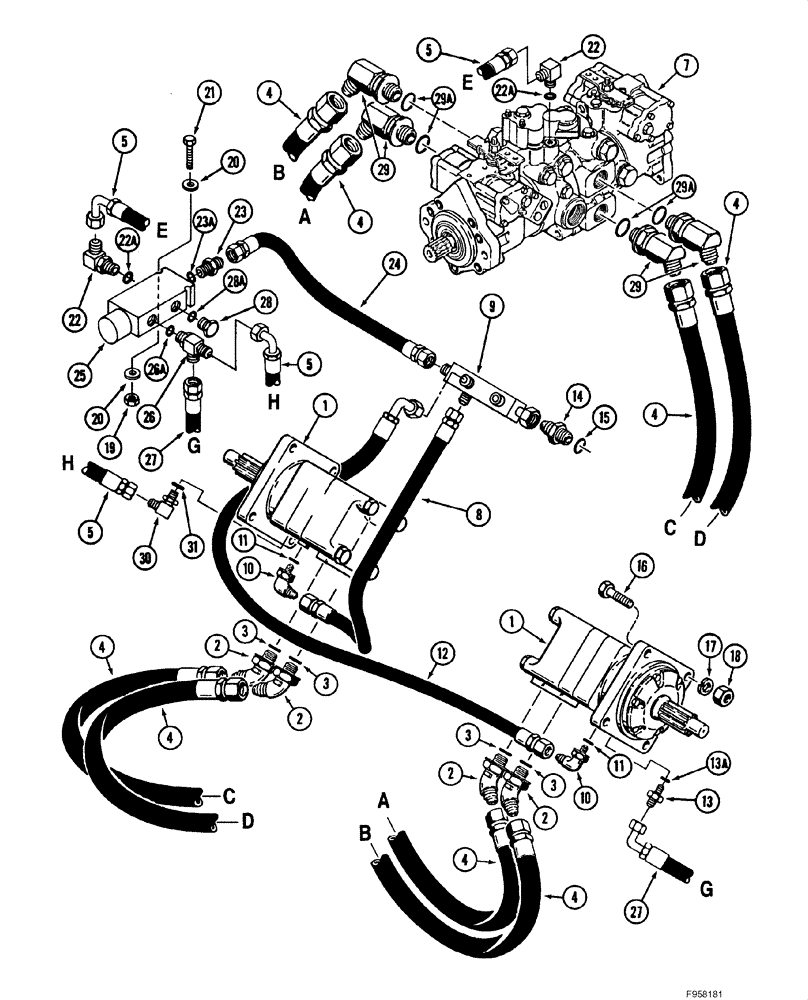

Запчасти Case IH 1840 (08-10) - HYDROSTATIC DRIVE HYDRAULICS, (EUROPE) (08) - HYDRAULICS

1

135858A2

MOTOR, HYDRAULIC

Hydraulic Drive; With Hydraulic Brakes; See Figure 08-18; No Longer Available, Order 230460A1, See Figure 08-18A

2шт.

2

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

45 degree, 1-1/16-12 in flare x adj O-ring boss; Incl. 3

4шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

H435736

HOSE ASSY.,19.05mm ID x 1100mm L, SAE 100R12

1100 mm (43-5/16 in); Drive Motors To Tandem Pump

4шт.

5

D138813

HOSE,9.53mm ID x 370mm L, SAE 100R1

370 mm (14-9/16 in); Solenoid Valve To Tandem Pump

2шт.

7

REF

INSTRUCTION

Pump Assy; Tandem; See Figure 06-07 - 06-09D

1шт.

8

H436667

HOSE ASSY.

356 mm (14 in); Left Hand; Drive Motor To Manifold; Replaces H195750

1шт.

9

141133A1

MANIFOLD

Adapter

1шт.

10

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 degree, 3/4-16 flare x 9/16-18 in adj O-ring boss; Incl. 11

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

H436616

HOSE ASSY.

650 mm (25-1/2 in); Right Hand; Drive Motor To Manifold; Replaces D125524

1шт.

13

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 13A

1шт.

13a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

O-Ring boss; Incl. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

428-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

5/8 NF x 2 in; 8

8шт.

17

492-11062

BEARING WASHER,5/8"

8шт.

18

429-1110

NUT,5/8"-18, G8

8шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

20

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

21

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1/4 NC x 1-3/4 in

2шт.

21

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Replaces 413-428

2шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss; Incl. 22A

2шт.

22a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 23A

1шт.

23a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

141168A1

HOSE

270 mm (10-5/8 in); Solenoid Valve To Case Drain Manifold

1шт.

25

187505C91

VALVE

Solenoid

1шт.

26

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 26A

1шт.

26a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

H433467

HOSE

Hydraulic; Solenoid To Right Hand Drive Motor

1шт.

28

76349

PLUG,9/16" - 18 ORB

Incl. 28A

1шт.

28a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree, 1-5/16-12 in flare x adj O-ring boss; Incl. 29A

4шт.

29a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.

30

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Adj. O-ring boss; Incl. 30A

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
