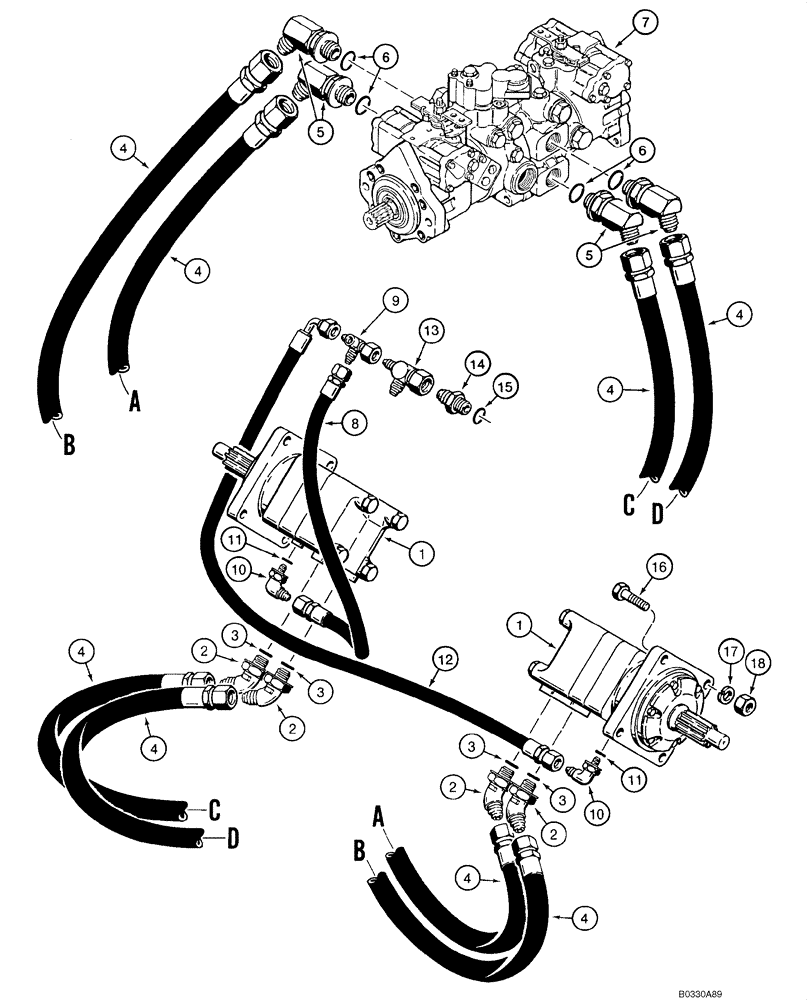

Запчасти Case IH 1840 (08-09) - HYDROSTATIC DRIVE HYDRAULICS, (NORTH AMERICA) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
Motor Assy; Hydraulic Drive; See Figure 08-14 - 08-17; North America
2шт.
2
218-5138
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
45 degree, 1-1/16-12 inch flare x adj O-ring boss; Incl. 3
4шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
H435736
HOSE ASSY.,19.05mm ID x 1100mm L, SAE 100R12
1100 mm (43-5/16 in); Drive Motors To Tandem Pump
4шт.
5
218-5140
45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
45 degree, 1-5/16-12 inch flare x adj O-ring boss; Incl. 6
4шт.
7
REF
INSTRUCTION
Pump Assy; Tandem; See Figure 06-07 - 06-09D
1шт.
8
H436667
HOSE ASSY.
356 mm (14 in); Left Hand; Drive Motor To Tee; Replaces H195750
1шт.
9
H435873
TEE
Adapter
1шт.
10
218-5280
ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring
90 degree, 3/4-16 flare x 9/16-18 in adj O-ring boss; Incl. 11
2шт.
12
H436616
HOSE ASSY.
650 mm (25-1/2 inch); Right Hand; Drive Motor To Tee; Replaces D125524
1шт.
13
218-5488
TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12
1-1/16-12 flare branch x swivel x 3/4-16 in flare
1шт.
14
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
O-Ring boss; Incl. 15
1шт.
15
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
16
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
5/8 NC x 2-1/4 in; Use With H673449 or H673057 Motors; See Figure 08-15 - 08-14
8шт.
16
428-1032
BOLT,Hex, 5/8" - 18 x 2", Gr 8
5/8 NF x 2 inch; 8; Use With 141387A2 or 135858A2 Motors; See Figure 08-16, 08-18
8шт.
17
492-11062
BEARING WASHER,5/8"
8шт.
18
425-1010
NUT,5/8"-11, G5
Use with H673449 or H673057 Motors; See Figure 08-15 - 08-14
8шт.
18
429-1110
NUT,5/8"-18, G8
Use with 141387A2 or 135858A2 Motors; See Figure 08-16, 08-18
8шт.
11
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 20
