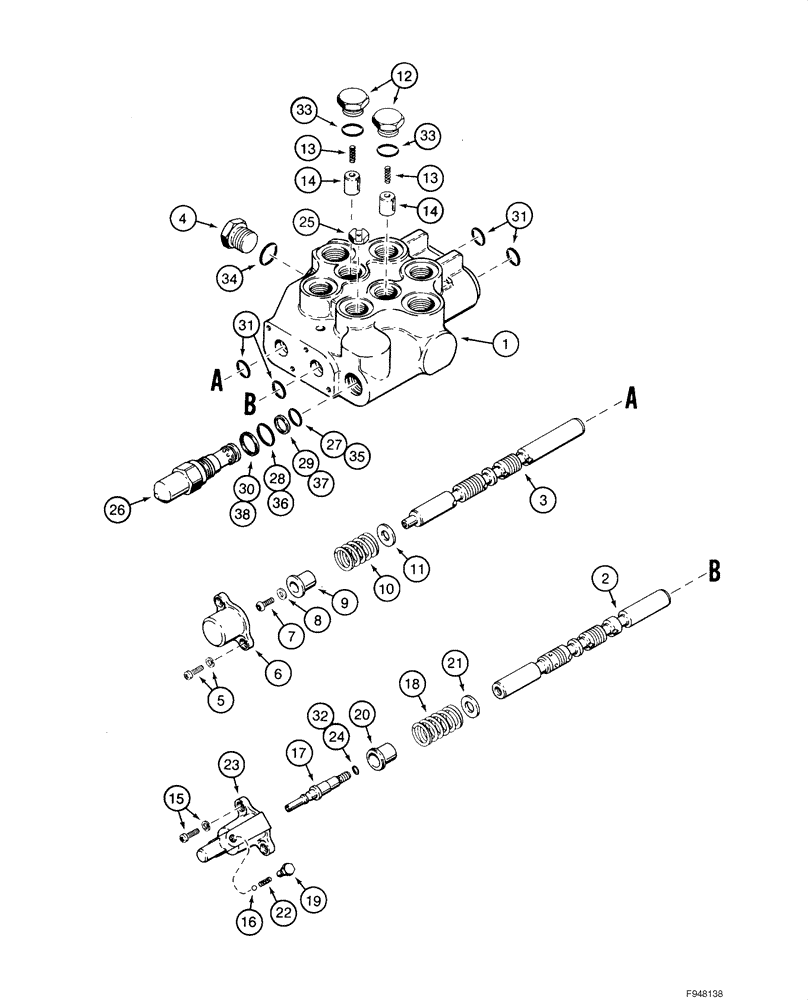

Запчасти Case IH 1840 (08-07) - VALVE, CONTROL - LOADER (08) - HYDRAULICS

108222A1

VALVE

Loader Control; Incl. 1 - 38

1шт.

1

NSS

NOT SOLD SEPARAT

Valve Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Spool; Loader Lift

1шт.

3

NSS

NOT SOLD SEPARAT

Spool; Loader Bucket

1шт.

4

132547A1

PLUG

1шт.

H674816

KIT

Centering Spring; Incl. 5 - 11

1шт.

5

221655A1

CAPTIVE WASHER SCREW,Phillips Drive, Round HD, #12 - 24 x 1/2"

Incl. Lock Washer

2шт.

6

N9528

CAP

Bucket Spool End

1шт.

7

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

.344 x .688 x .065; Spring Seat; Bucket Spool

1шт.

8

492-11010

LOCK WASHER,#10

Spring Seat; Bucket Spool

1шт.

9

N9529

SEAT

Bucket Spool

1шт.

10

N9539

TENSION SPRING

Bucket Spool

1шт.

11

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

142999A1

KIT

Load Check; Incl. 12 - 14, Instructions; Replaces H673572

2шт.

12

NSS

NOT SOLD SEPARAT

Plug; Load Check

1шт.

13

NSS

NOT SOLD SEPARAT

Spring; Load Check

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet; Load Check

1шт.

H673573

KIT

Detent Float; Incl. 15 - 24

1шт.

15

NSS

NOT SOLD SEPARAT

Screw; Incl. Lock Washer, Detent Float

2шт.

16

NSS

NOT SOLD SEPARAT

Ball; Detent Cap

2шт.

17

NSS

NOT SOLD SEPARAT

Spool; Detent

1шт.

18

D86558

SPRING

Return

1шт.

19

D86560

SCREW

Detent

2шт.

20

D86559

SEAT

Spring

1шт.

21

D86557

WASHER

Lift Spool

1шт.

22

N9506

COIL SPRING

Detent

2шт.

23

N9540

COVER

Detent

1шт.

24

NSS

NOT SOLD SEPARAT

O-ring; Detent Spool

1шт.

25

H436436

PLATE

0.81 inch (4.6 mm); Lift; Port B

1шт.

26

H673574

VALVE, PRESSURE RELI

EF Main Relief; Incl. H674535, H673569, H673570, REF 27 - 38

1шт.

H674535

GASKET KIT

Main Relief Valve; Incl. 27 - 30, Instructions

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Relief Valve; Inner

1шт.

28

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Relief Valve; Outer

1шт.

29

H438044

GASKET

9/16 x 1/16 x 11/16; Relief Valve; Inner

1шт.

30

NSS

NOT SOLD SEPARAT

Ring; Relief Valve; Outer

1шт.

H673569

KIT

Seal; Incl. REF 31 -34, Instructions

1шт.

31

H438030

O-RING

5/8 x 3/32 x 13/16; Valve Body

4шт.

32

NSS

NOT SOLD SEPARAT

O-ring, 15/64 x 1/16 x 3/8; Detent Spool

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Load check plug

2шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Power Beyond Plug

1шт.

H673570

SEAL PACKAGE

Main Relief Valve; Incl. 35 - 38, Instructions; External

1шт.

35

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Relief Valve; Inner

1шт.

36

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Relief Valve; Outer

1шт.

37

H438044

GASKET

9/16 x 1/16 x 11/16; Relief Valve; Inner

1шт.

38

H438329

GASKET

11/16 x 1/16 x 13/16; Relief Valve; Outer

1шт.
