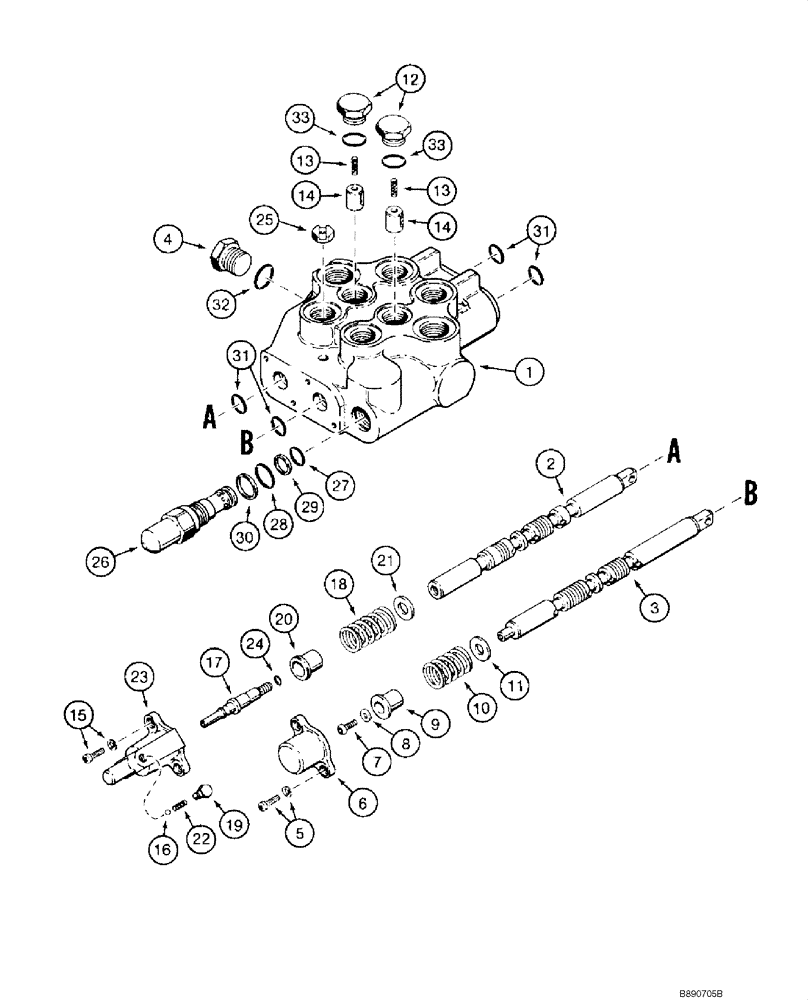

Запчасти Case IH 1840 (08-05) - VALVE, CONTROL - LOADER, - JAF0120445 (MODELS WITHOUT SELF-LEVELING) (08) - HYDRAULICS

H673218

VALVE

Loader Control; - JAF0120445; See Figure 08-13; No Longer Available, Order H674734

1шт.

H674307

VALVE

Loader Control; No Longer Available, Order H674734

1шт.

H674734

VALVE

Loader Control; - JAF0120445; Incl. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

Body; Valve

1шт.

2

H674795

CONVERSION PACKAGE

Kit, spool; Loader Lift; For H674307 Valve; Code White; If Used

1шт.

2

H674796

CONVERSION PACKAGE

Kit, spool; Loader Lift; For H674307 Valve; Code Black; If Used

1шт.

2

NSS

NOT SOLD SEPARAT

Spool; Loader Lift; For H673218 and H674734 Valve

1шт.

3

NSS

NOT SOLD SEPARAT

Spool; Loader Bucket

1шт.

4

H436435

PLUG

Power Beyond

1шт.

H673571

KIT

Centering Spring; Incl. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

Screw; Incl. Lock Washer, End Cap

2шт.

6

N9528

CAP

Bucket Spool End

1шт.

7

NSS

NOT SOLD SEPARAT

Screw; Spring Seat; Bucket Spool

1шт.

8

NSS

NOT SOLD SEPARAT

Washer; Spring Seat; Bucket Spool

1шт.

9

N9529

SEAT

Spring Seat; Bucket Spool

1шт.

10

N9539

TENSION SPRING

Bucket Spool

1шт.

11

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

142999A1

KIT

Load Check; Incl. 12 - 14; Replaces H673572

2шт.

12

NSS

NOT SOLD SEPARAT

Plug; Load Check

1шт.

13

NSS

NOT SOLD SEPARAT

Spring; Load Check

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet; Load Check

1шт.

H673573

KIT

Detent; Used With H673218 Control Valve

1шт.

H674617

SET

Detent Float; Incl. 15 - 24; Used With H674307 Control Valve

1шт.

15

NSS

NOT SOLD SEPARAT

Screw; Incl. Lock Washer, Detent Float

2шт.

16

NSS

NOT SOLD SEPARAT

Ball; Detent Cap

2шт.

17

NSS

NOT SOLD SEPARAT

Spool; Detent

1шт.

18

D86558

SPRING

Return

1шт.

19

D86560

SCREW

Detent

2шт.

20

D86559

SEAT

Spring

1шт.

21

D86557

WASHER

Lift Spool

1шт.

22

N9506

COIL SPRING

Detent

2шт.

23

N9540

COVER

Detent

1шт.

24

NSS

NOT SOLD SEPARAT

Detent Spool

1шт.

25

H436436

PLATE

0.181 in; Lift; Port B

1шт.

H673574

VALVE, PRESSURE RELI

EF Main Relief; Incl. H64535, REF 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

Valve; Main Relief

1шт.

H674535

GASKET KIT

Main Relief; Incl. H673570, REF 27 - 30; Incl. Internal Seal, Nut, Adjusting Bolt, And Instructions, Not Illustrated

1шт.

H673570

SEAL PACKAGE

External; Main Relief Valve

1шт.

27

NSS

NOT SOLD SEPARAT

O-ring; Main Relief Valve; Inner

1шт.

28

NSS

NOT SOLD SEPARAT

O-ring; Relief Valve; Outer

1шт.

29

NSS

NOT SOLD SEPARAT

O-ring; Relief Valve; Inner

1шт.

30

NSS

NOT SOLD SEPARAT

Ring; Relief Valve; Outer

1шт.

31

NSS

NOT SOLD SEPARAT

O-ring; Valve Body

4шт.

32

NSS

NOT SOLD SEPARAT

O-ring; Power Beyond Plug

1шт.

33

NSS

NOT SOLD SEPARAT

O-ring; Load Check Plug

2шт.

H436154

FITTING,7/8" - 14

Power Beyond; - JAF0037367; Not Illustrated

1шт.

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 inch flare x O-ring boss; - JAF0037367; Not Illustrated

1шт.

H673569

KIT

Seal; Incl. 24, 27 - 33

1шт.
