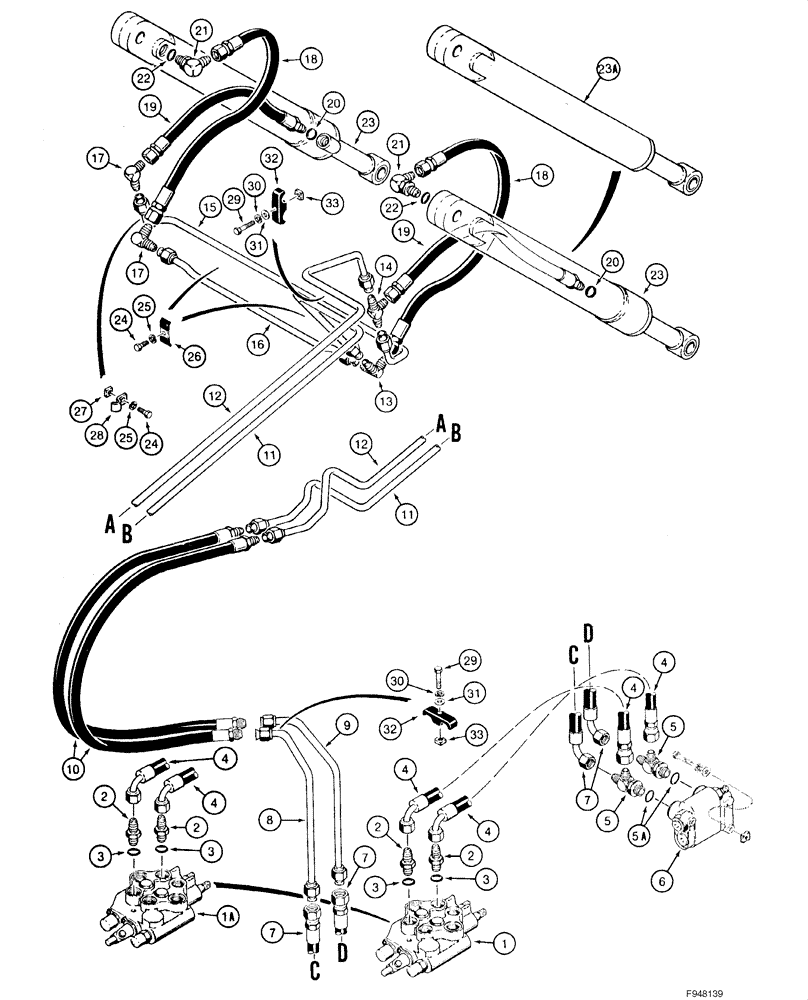

Запчасти Case IH 1840 (08-04) - HYDRAULICS - LOADER BUCKET (MODELS WITH SELF-LEVELING) (08) - HYDRAULICS

1

H674275

VALVE

Loader Control; Incl. 1 - 33; See Figure 08-06; No Longer Available, Order 108222A1, See Figure 08-07

1шт.

1a

108222A1

VALVE

Loader Control; See Figure 08-07

1шт.

1b

195614A1

BOOT

Loader Valve; Not Illustrated

1шт.

1c

194403A2

SUPPORT

Incl. 3; Not Illustrated

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 inch flare x O-ring boss; Incl. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H437670

HOSE

600 mm (23-5/8 in); Loader Control Valve To Self-Leveling Valve

2шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 5A

2шт.

5a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H673705

VALVE

Self-Leveling; See Figure 08-08

1шт.

7

H437671

HOSE

700 mm (27-1/2 in); At Self-Leveling Valve

2шт.

8

H673919

TUBE,0.5" OD

Intermediate; To Hose At Loader Arm; To Rod End Of Bucket Tilt Cylinders

1шт.

9

H673920

TUBE,0.5" OD

Intermediate; To Hose At Loader Arm; To Closed End Of Bucket Tilt Cylinder

2шт.

10

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

950 mm (37-13/32 in); At Loader Arm

2шт.

11

H673482

TUBE ASSY.,12.7 mm OD

Intermediate; To Closed End Of Bucket Tilt Cylinder

1шт.

12

H673483

TUBE ASSY.,12.7 mm OD x 341, 480 mm L

Intermediate; To Rod End Of Bucket Tilt Cylinder

1шт.

13

D124661

ELBOW

Crossover Tube To Closed End Of Bucket Tilt Cylinders

1шт.

14

218-594

TEE,3/4"-16, 37 Degree

3/4-16 inch flare branch x flare x flare

1шт.

15

D139303

TUBE ASSY.

Crossover; To Rod End Of Bucket Tilt Cylinders

1шт.

16

D139301

TUBE ASSY.

Crossover; To Rod End Of Bucket Tilt Cylinders

1шт.

17

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

18

D54382

HOSE ASSY.,9.53mm ID x 381mm L, SAE 100R2

381 mm (15 in); To Closed End Of Bucket Tilt Cylinder

2шт.

18a

135157A1

TUBE

Used On REF 18; European Models; Not Illustrated

2шт.

19

D137692

HOSE ASSY.,9.53mm ID x 430mm L

430 mm (16-15/16 in); To Rod End Of Bucket Tilt Cylinders

2шт.

19a

128775A1

LOOM

Used On REF 19; European Models; Not Illustrated

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

G103407

CYLINDER

64 (2-1/2) ID x 403 mm (15-7/8 in) stroke; Bucket Tilt; See Figure 08-27; No Longer Available, Order 118110A1

2шт.

23

118110A1R

REMAN-HYD CYLINDER

1840 CASE UNI LOADER SKID STEER LOADER, (MODELS WITHOUT SELF-LEVELING), Reman for New PN G103407

2шт.

23

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

23a

118110A1

CYLINDER,Double Acting, 31.8mm Rod, 402.6mm Stroke

65 (2-1/2) ID x 403 mm (15-7/8 in); Smooth Cylinder Walls; See Figure 08-28

2шт.

23a

118110A1R

REMAN-HYD CYLINDER

1840 CASE UNI LOADER SKID STEER LOADER, (MODELS WITH SELF-LEVELING)

2шт.

23a

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

24

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

3шт.

25

492-11031

LOCK WASHER,5/16"

3шт.

26

R17319

CLAMP

Crossover Tubes

2шт.

27

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

1шт.

28

D140709

CLAMP

Crossover Tubes To Rod End Of Tilt Cylinder

1шт.

29

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

32

D120679

CLAMP,Tube, 1/2"

2шт.

33

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.
