Запчасти Case IH 1840 (08-03) - HYDRAULICS - LOADER BUCKET (MODELS WITHOUT SELF-LEVELING) (08) - HYDRAULICS

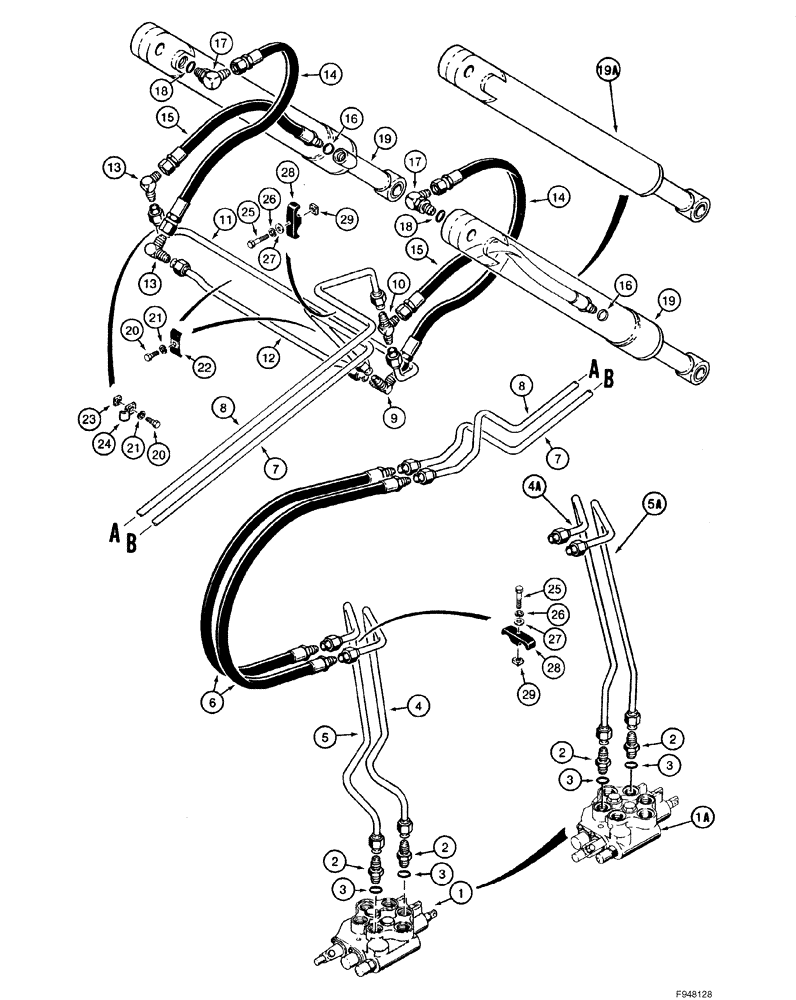

Схема запчастей Case IH 1840 - (08-03) - HYDRAULICS - LOADER BUCKET (MODELS WITHOUT SELF-LEVELING) (08) - HYDRAULICS
3
24
9
27
8
2
21
13
14
17
1
26
18
27
3
19a
13
2
3
3
8
6
25
4
19
1a
20
11
5a
22
17
20
15
10
28
25
7
19
7
15
2
4a
14
29
28
16
23
21
29
2
16
12
18
5
26

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Valve Assy; Loader Control; - JAF0120445; See Figure 08-05

1шт.

1a

108222A1

VALVE

Loader Control; JAF0120445 - ; See Figure 08-07

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 inch flare x O-ring boss; Incl. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H673267

TUBE ASSY.,12.7 mm OD x 407, 396 mm L

Control Valve, Port A; Front; - JAF0120445

1шт.

4a

129368A1

TUBE

Control Valve, Port B; Rear; JAF0120445 - ; Models Without Emissions Certified Engine

1шт.

4b

292678A1

TUBE,564, 293 mm Length

Control Valve, Port B; Rear; Models With Emissions Certified Engine; Not Illustrated

1шт.

5

H673268

TUBE ASSY.,12.7 mm OD x 341, 480 mm L

Control Valve, Port B; Rear; - JAF0120445

1шт.

5a

129366A1

TUBE

Control Valve, Port A; Front; JAF0120445 - ; Models Without Emissions Certified Engine

1шт.

5b

292680A1

TUBE,504, 365 mm Length

Control Valve, Port A; Front; Models With Emissions Certified Engine; Not Illustrated

1шт.

6

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

950 mm (37-13/32 in); At Loader Arm

2шт.

7

H673482

TUBE ASSY.,12.7 mm OD

Intermediate; To Closed End Of Bucket Tilt Cylinder

1шт.

8

H673483

TUBE ASSY.,12.7 mm OD x 341, 480 mm L

Intermediate; To Rod End Of Bucket Tilt Cylinder

1шт.

9

D124661

ELBOW

Crossover Tube To Closed End Of Bucket Tilt Cylinders

1шт.

10

218-594

TEE,3/4"-16, 37 Degree

3/4-16 inch flare branch x flare x flare

1шт.

11

D139303

TUBE ASSY.

Crossover; To Rod End Of Bucket Tilt Cylinders

1шт.

12

D139301

TUBE ASSY.

Crossover; To Closed End Of Bucket Tilt Cylinders

1шт.

13

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

14

D54382

HOSE ASSY.,9.53mm ID x 381mm L, SAE 100R2

381 mm (15 in); To Closed End Of Bucket Tilt Cylinder; North American Models

2шт.

14

E20503

HOSE ASSY.

381 mm (15 in); To Closed End Of Bucket Tilt Cylinder; European Models

2шт.

135157A1

TUBE

Used On REF 14; European Models

2шт.

15

D137692

HOSE ASSY.,9.53mm ID x 430mm L

430 mm (16-15/16 in); To Rod End Of Bucket Tilt Cylinder; North American Models

2шт.

15

E20504

HOSE ASSY.

430 mm (16-15/16 in); To Rod End Of Bucket Tilt Cylinder; European Models

2шт.

128775A1

LOOM

Used On REF 15; European Models

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

G103407

CYLINDER

64 (2-1/2) ID x 403 mm (15-7/8 inch) stroke; Bucket Tilt; See Figure 08-27; No Longer Available, Order 118110A1

2шт.

19

118110A1R

REMAN-HYD CYLINDER

1840 CASE UNI LOADER SKID STEER LOADER, (MODELS WITHOUT SELF-LEVELING), Reman for New PN G103407

2шт.

19

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

19a

118110A1

CYLINDER,Double Acting, 31.8mm Rod, 402.6mm Stroke

65 (2-1/2) ID x 403 mm (15-7/8 in) stroke; Bucket Tilt; See Figure 08-28

2шт.

19a

118110A1R

REMAN-HYD CYLINDER

1840 CASE UNI LOADER SKID STEER LOADER (MODELS WITHOUT SELF-LEVELING)

2шт.

19a

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

20

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

3шт.

21

492-11031

LOCK WASHER,5/16"

3шт.

22

R17319

CLAMP

Crossover Tubes

2шт.

23

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

1шт.

24

D140709

CLAMP

Crossover Tubes To Rod End Of Tilt Cylinder

1шт.

25

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

28

D120679

CLAMP,Tube, 1/2"

2шт.

29

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.
