Запчасти Case IH 1840 (08-02) - HYDRAULICS - LOADER LIFT (MODELS WITH SELF-LEVELING) (08) - HYDRAULICS

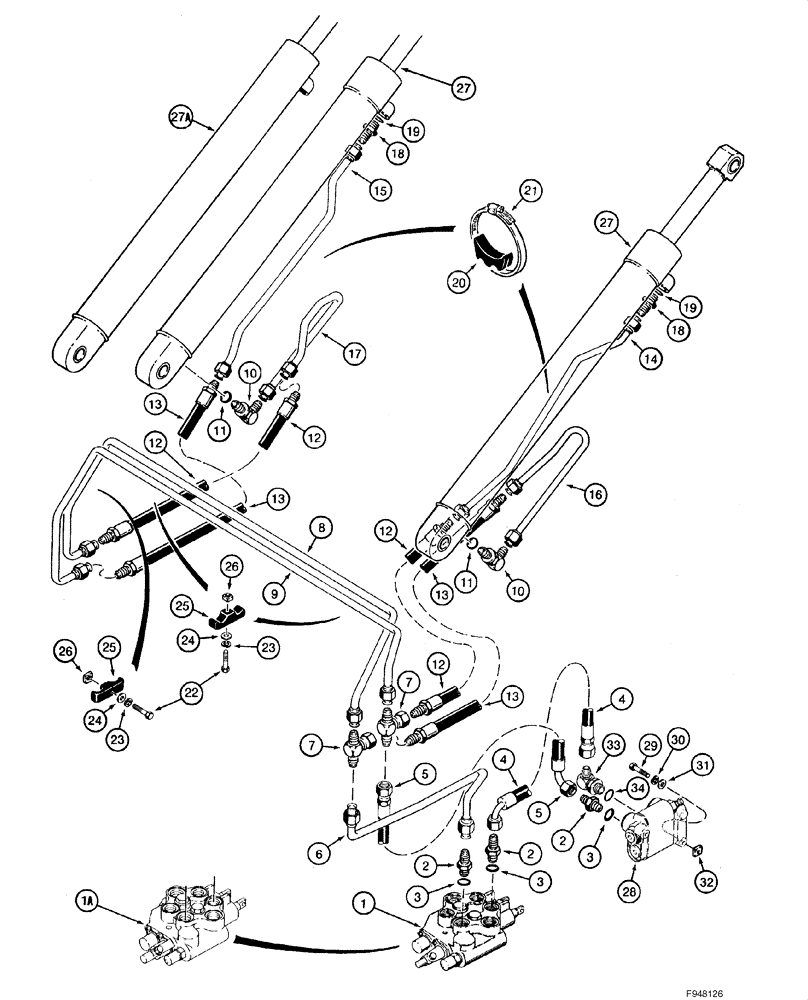

Схема запчастей Case IH 1840 - (08-02) - HYDRAULICS - LOADER LIFT (MODELS WITH SELF-LEVELING) (08) - HYDRAULICS
30
27a
12
26
3
24
18
9
17
11
10
29
20
34
4
13
4
19
12
7
19
2
13
32
7
6
33
25
3
12
23
31
13
5
28
10
27
2
13
5
16
1
8
24
2
18
12
25
3
15
26
1a
14
11
21
23
22
27

Артикул

Название

Примечание

Количество

1

H674275

VALVE

Loader Control; See Figure 08-06; No Longer Available, Order 108222A1, REF 1A

1шт.

1a

108222A1

VALVE

Loader Control; See Figure 08-07

1шт.

1b

195614A1

BOOT

Loader Valve; Not Illustrated

1шт.

1c

194403A2

SUPPORT

Not Illustrated

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 inch flare x O-ring boss; Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H437668

HOSE

690 mm (27-5/32 in); Loader Control Valve To Self-Leveling Valve

1шт.

5

H437669

HOSE

780 mm (30-11/16 in); Self-Leveling Valve To Crossover Tube

1шт.

6

H673924

PIPE ASSY.,0.5" OD

Control Valve, Port D; Rear

1шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4-16 inch swivel branch x flare x flare

2шт.

8

H673695

TUBE,12.7 mm OD

Crossover; To Closed End Of Lift Cylinders

1шт.

9

H673696

TUBE,0.5" OD

Crossover; To Rod End Of Lift Cylinders

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

H436410

HYDRAULIC HOSE,9.53mm ID x 400mm L

To closed end of LH lift cylinder and rod end of RH lift cylinders

2шт.

13

H436409

HYDRAULIC HOSE,9.53mm ID x 475mm L

To rod end of LH lift cylinder and closed end of RH lift cylinders

2шт.

14

D125480

TUBE ASSY.

To Rod End Of Right Hand Lift Cylinder

1шт.

15

H673439

TUBE ASSY.,0.5" OD

To Rod End Of Left Hand Lift Cylinder

1шт.

16

D125488

TUBE ASSY.

To Closed End Of Right Hand Lift Cylinder

1шт.

17

H673438

TUBE ASSY.,0.5" OD

To Closed End Of Left Hand Lift Cylinder

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 inch flare x O-ring boss; Incl. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

R24703

SUPPORT

Tubes To Lift Cylinder

2шт.

21

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 inch dia; Tube Support

2шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

23

492-11038

LOCK WASHER,3/8"

3шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

25

D120679

CLAMP,Tube, 1/2"

3шт.

26

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

27

G110666

CYLINDER

64 (2-1/2) ID x 679 mm 3]26-3/4 in) stroke; See Figure 08-25; No Longer Available, Order 117824A1, REF 27A

2шт.

27a

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

64 (2-1/2) ID x 679 mm (26-3/4 in) stroke; See Figure 08-26

2шт.

28

H673705

VALVE

Self-Leveling; See Figure 08-08

1шт.

29

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

30

492-11031

LOCK WASHER,5/16"

2шт.

31

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

32

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

33

H439269

ELBOW

90 degree; Incl. 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
