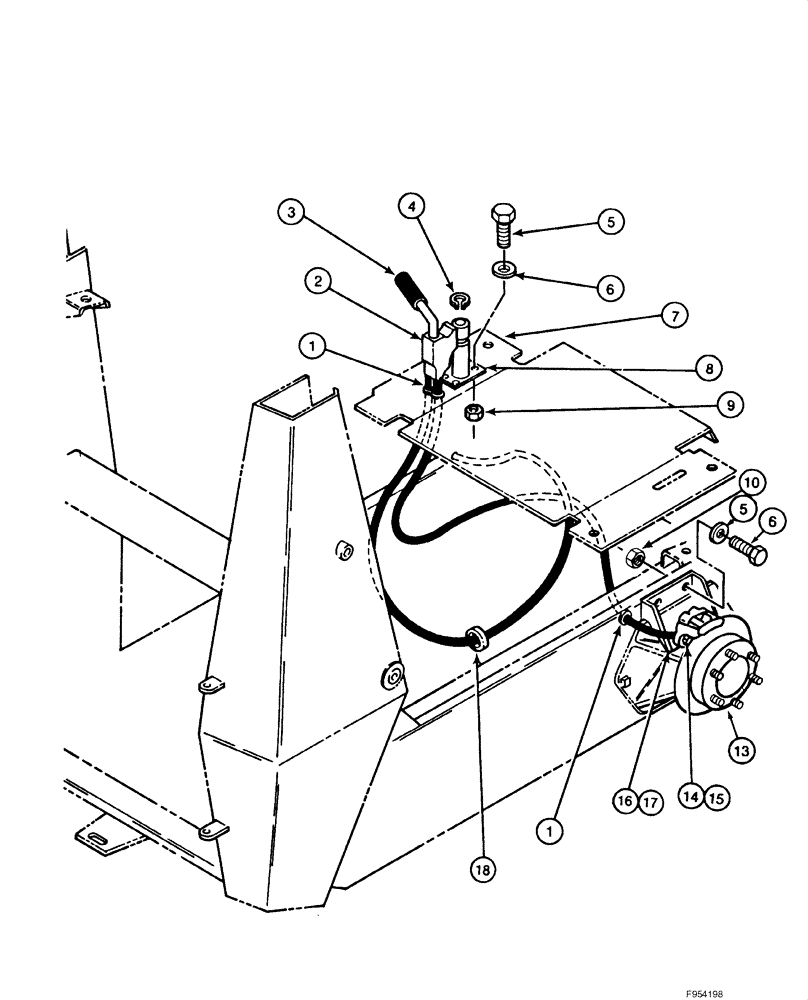

Запчасти Case IH 1840 (07-04) - DISC BRAKE, (ITALIAN D.G.M.) (07) - BRAKES

1

E122545

GROMMET

Brake

4шт.

2

E134910

BRAKE, PARKING

PARKING BRAKE Brake

1шт.

3

D126613

HANDLE

1шт.

4

100-1687

SNAP RING,#87, Ext

1шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 NC x 1-1/4 in

3шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

7

104857A1

Cover; Brake

1шт.

8

104181A1

Mount; Brake Control

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

11

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32")

4шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

13

104433A1

Disc; Brake

2шт.

14

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

8шт.

15

892-11008

LOCK WASHER,8mm ID

8шт.

16

104650A1

Support; Brake; Left Hand

1шт.

17

104651A1

Support; Brake; Right Hand

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.
