Запчасти Case IH 1840 (07-03) - PARKING LATCH - SEAT BAR, SINGLE (07) - BRAKES

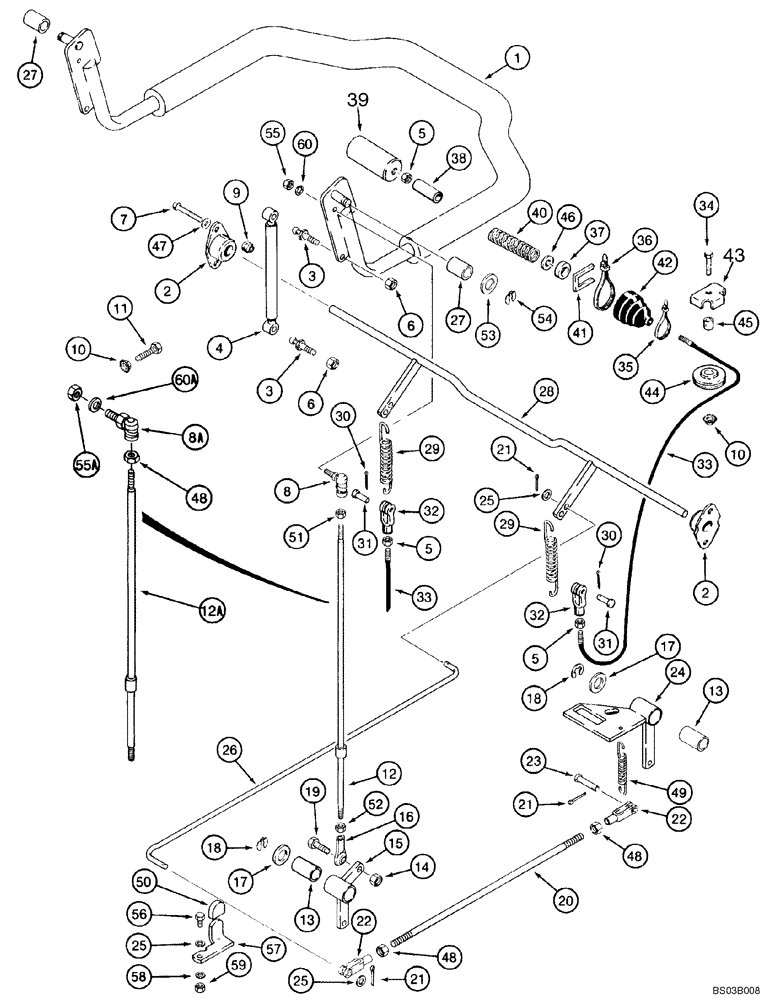

Схема запчастей Case IH 1840 - (07-03) - PARKING LATCH - SEAT BAR, SINGLE (07) - BRAKES
50
19
6
17
59
40
38
36
11
14
2
60
31
12
22
25
17
10
9
49
21
51
30
30
27
54
52
21
2
48
5
4
33
20
32
16
32
55a
23
1
7
33
18
55
10
57
56
29
53
21
44
25
39
31
3
8a
60a
58
13
22
24
48
3
8
26
35
28
13
41
4
46
18
29
27
47
25
48
5
45
37
43
42
6
15
12a
5

Артикул

Название

Примечание

Количество

1

128561A1

BAR ASSY.

Restraint; Used With 8, 12, 51, 55, 60; No Longer Available, Models With Brown Trim

1шт.

1

128561A2

BAR ASSY.

Restraint; Used With 8A, 12A, 48, 55A, 60A; Models With Brown Trim

1шт.

1

179833A1

BAR ASSY.

Seat; Models With Gray Trim

1шт.

2

R29593

FLANGED BEARING,1.125" OD x 0.562"

2шт.

3

1340345C1

BALL STUD

BALL PIN Replaces F44882

2шт.

4

128461A2

GAS STRUT

Seat Bar

1шт.

5

425-144

JAM NUT,Jam, 1/4"-20, G5

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

8

H358374

PIVOT,1/4" - 28 x 1-1/3"

1/4 in; Female; Used With 128561A1; Replaces H169920

1шт.

8a

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

5/16 in; Female; Used With 128561A2 or 179833A1

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

12

140424A1

THREADED ROD

Seat Bar; To Control Pivot; Used With REF 8 and 128561A1; No Longer Available, Order 140424A2, REF 12A and H289652, REF 8A

1шт.

12a

140424A2

ROD

Seat Bar; To Control Pivot; Used With 8A and 128561A2 or 179833A1

1шт.

13

119616A1

BUSHING

2шт.

14

232-4116

NUT,3/8"-16, GC

1шт.

15

132431A1

PITMAN

Cross Shaft

1шт.

16

A32398

BALL JOINT

3/8 in; Female; Replaces D59922

1шт.

17

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

4шт.

18

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

Replaces D95097

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

132444A1

STEM

Control Pivot

1шт.

21

432-610

COTTER PIN,3/32" x 5/8"

3шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

23

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

24

132437A1

PITMAN

1шт.

25

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

26

136217A1

ROD

Brake Actuating

1шт.

27

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

Pivot

2шт.

28

132440A1

LEVER

Parking Brake

1шт.

29

D127347

SPRING

Cable Connecting

2шт.

30

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

31

D23693

AXLE PIN

1/4 x 1 in

2шт.

32

H169300

CLEVIS

1/4 in

2шт.

33

H438180

CABLE

At Pulleys; Lower

2шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

37

D70742

SPACER

2шт.

38

H435266

SPACER

Parking Brake

2шт.

39

D64228

PIN,25.45mm OD x 53.34mm L

Parking Brake Latch; Not Illustrated

2шт.

40

D91040

SPRING

Parking Brake Latch

2шт.

41

H438614

CLIP

2шт.

42

D70018

BOOT

2шт.

43

D124466

RETAINER

Cable Pulley

2шт.

44

D124465

PULLEY,54mm OD

Cable

2шт.

45

D95743

SPACER

Cable Pulley; Replaces D95559

2шт.

46

495-81108

WASHER,.281" x 1" x .109"

2шт.

47

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

48

425-155

JAM NUT,Jam, 5/16"-24, G5

Used with Ref 8A and 128561A2 or 179833A1

3шт.

49

D124939

SPRING

Control Lever

1шт.

50

140377A1

HANDLE

1шт.

51

425-154

JAM NUT,Jam, 1/4"-28, G5

Used with Ref 8 and 128561A1

1шт.

52

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

53

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

Replaces 195-2051, 95-81207

2шт.

54

D143415

SNAP RING,0.50” ID, Klipring

2шт.

55

425-114

NUT,1/4"-28, G5

Used with Ref. 8 and 128561A1

1шт.

55a

425-115

NUT,5/16"-24, G5

Used with Ref 8A and 128561A2 or 179833A1

1шт.

56

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

57

140013A1

LATCH

Seat Bar

1шт.

58

140381A1

WASHER

1шт.

59

232-4115

LOCK NUT,5/16"-18, GC

1шт.

60

492-11025

LOCK WASHER,1/4"

Used with Ref 8 and 128561A1

1шт.

60a

492-11031

LOCK WASHER,5/16"

Used with Ref 8A and 128561A2 or 179833A1

1шт.

120923A1

SET

Service Kit; Parking Brake Rod; Incl. Instruction Sheet; Not Illustrated

1шт.

61

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 in; Not Illustrated

1шт.

62

119616A1

BUSHING

Not Illustrated

1шт.

63

119815A1

LARGE PLATE

PLATE, LARGE Not Illustrated

1шт.

64

120777A1

COLLAR

With Set Screw; Not Illustrated

1шт.

65

120950A1

DECAL

Danger, Before Leaving The Seat; English; See Figure 09-42

1шт.

Выбрано товаров: 72
