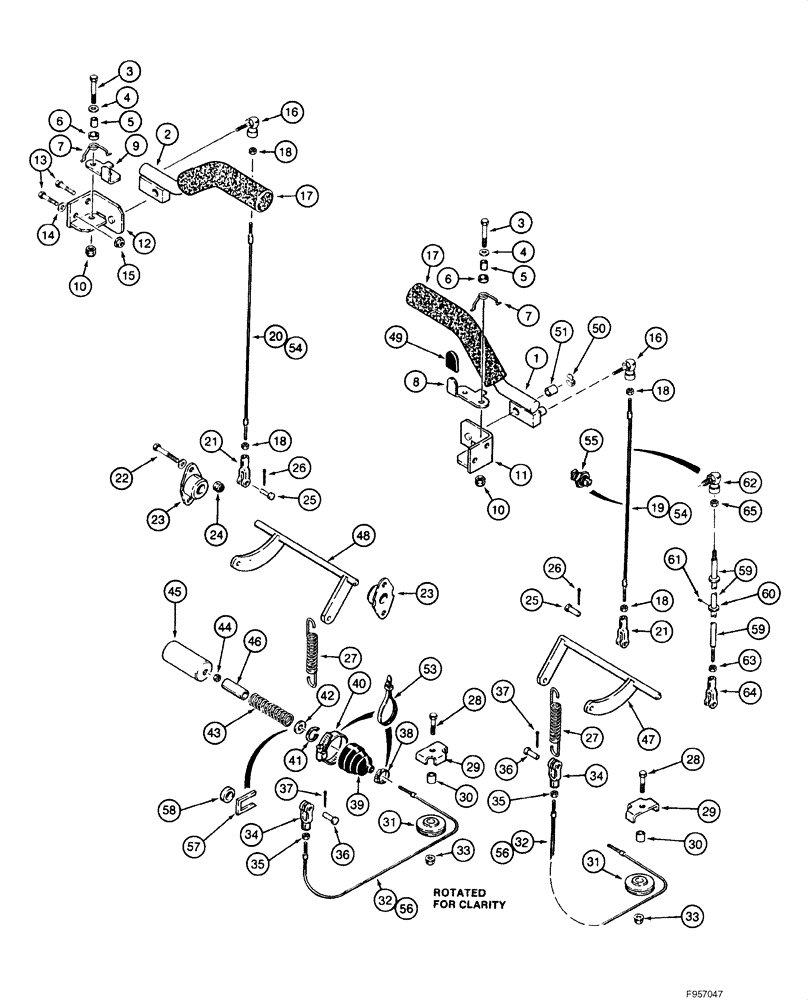

Запчасти Case IH 1840 (07-01) - PARKING LATCH - SEAT BARS, DUAL, - JAF0100496 (07) - BRAKES

1

H673609

BAR

Right Hand; Restraint; With Cushion; North American Models; European Models, JAF0098065 -

1шт.

1

E20952

BAR

Right Hand; Restraint; European Models, - JAF0098064

1шт.

2

H673608

BAR

Left Hand; Restraint; With Cushion; North American Models; European Models, JAF0098065 -

1шт.

2

E20953

BAR

Left Hand; Restraint; European Models, - JAF0098064

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

5

H270777

SPACER

At Latch

2шт.

6

D44352

BUSHING

At Latch

2шт.

7

D134464

SPRING

Latch

2шт.

8

D131228

LATCH

Parking; Right Hand

1шт.

9

D131229

LATCH

Parking; Left Hand

1шт.

10

232-4116

NUT,3/8"-16, GC

2шт.

11

H435879

BRACKET

Mounting; Right Hand; North American Models

1шт.

11

E20840

BRACKET

Mounting; Right Hand; European Models

1шт.

12

H435880

BRACKET

Mounting; Left Hand; North American Models

1шт.

12

E20839

BRACKET

Mounting; Left Hand; European Models

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

14

H426775

WASHER

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

16

H358374

PIVOT,1/4" - 28 x 1-1/3"

1/4 in; Female; Replaces H169920

2шт.

17

H436484

GRIP

Restraint Bar; North American Models

2шт.

17

E99830

COVER

Restraint Bar; European Models; No Longer Available, Order H436484

2шт.

18

425-114

NUT,1/4"-28, G5

4шт.

19

D134898

CABLE ASSY.

Right Hand; Upper; No Longer Available, Order H438179

1шт.

19

H438179

CABLE ASSY.

Replaces D134898, 120923A1

1шт.

20

D134899

CABLE ASSY.

Left Hand; Upper; No Longer Available, Order H438179

1шт.

21

A18709

CLEVIS

Cable End

2шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

23

R29593

FLANGED BEARING,1.125" OD x 0.562"

Pivot Shaft

4шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

25

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

26

432-68

COTTER PIN,3/32" x 1/2"

2шт.

27

D127347

SPRING

Cable Connecting

2шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

29

D124466

RETAINER

Cable Pulley

2шт.

30

D95743

SPACER

Cable Pulley

2шт.

31

D124465

PULLEY,54mm OD

Cable

2шт.

32

H435824

CABLE

Lower; At Pulleys; No Longer Available, Order H438180

2шт.

33

231-5146

FLANGE NUT,3/8"-16

2шт.

34

H169300

CLEVIS

1/4 in

2шт.

35

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

36

D23693

AXLE PIN

1/4 x 1 inch

2шт.

37

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

38

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Cable End to Boot; No Longer Used, Order L18337

2шт.

39

D70018

BOOT

2шт.

40

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

At Latch Pin; No Longer Used, Order L18337

2шт.

41

100-21100

SNAP RING,1.00", Int, #100

JAF0078296

2шт.

42

495-81108

WASHER,.281" x 1" x .109"

2шт.

43

D91040

SPRING

At Latch Pin

2шт.

44

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

45

D64228

PIN,25.45mm OD x 53.34mm L

2шт.

46

H435266

SPACER

2шт.

47

H673555

PIVOT

Parking Latch; Right Hand

1шт.

48

H673554

PIVOT

Parking Latch; Left Hand

1шт.

49

D134924

HANDLE

2шт.

50

D143415

SNAP RING,0.50” ID, Klipring

2шт.

51

H435837

BUSHING,12.7mm ID x 14.45mm OD x 19.05mm L

2шт.

52

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

53

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

54

H438179

CABLE ASSY.

At Latch

2шт.

55

102411A1

RETAINER

Right Hand Latch Cable; Upper; Replaces H438181

1шт.

56

H438180

CABLE

At Pulleys; Lower

2шт.

57

H438614

CLIP

JAF0078296 -

2шт.

58

T28521

SPACER

JAF0078296 -

2шт.

59

123237A1

ROD

Seat Bar; Right Hand

1шт.

60

120777A1

COLLAR

With Set Screw

2шт.

61

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 NC x 1/4 in

2шт.

62

H358374

PIVOT,1/4" - 28 x 1-1/3"

1/4 in; Female; Replaces H169920

2шт.

63

425-115

NUT,5/16"-24, G5

2шт.

64

213-115

ADJUSTABLE CLEVIS,5/16" - 24

2шт.
