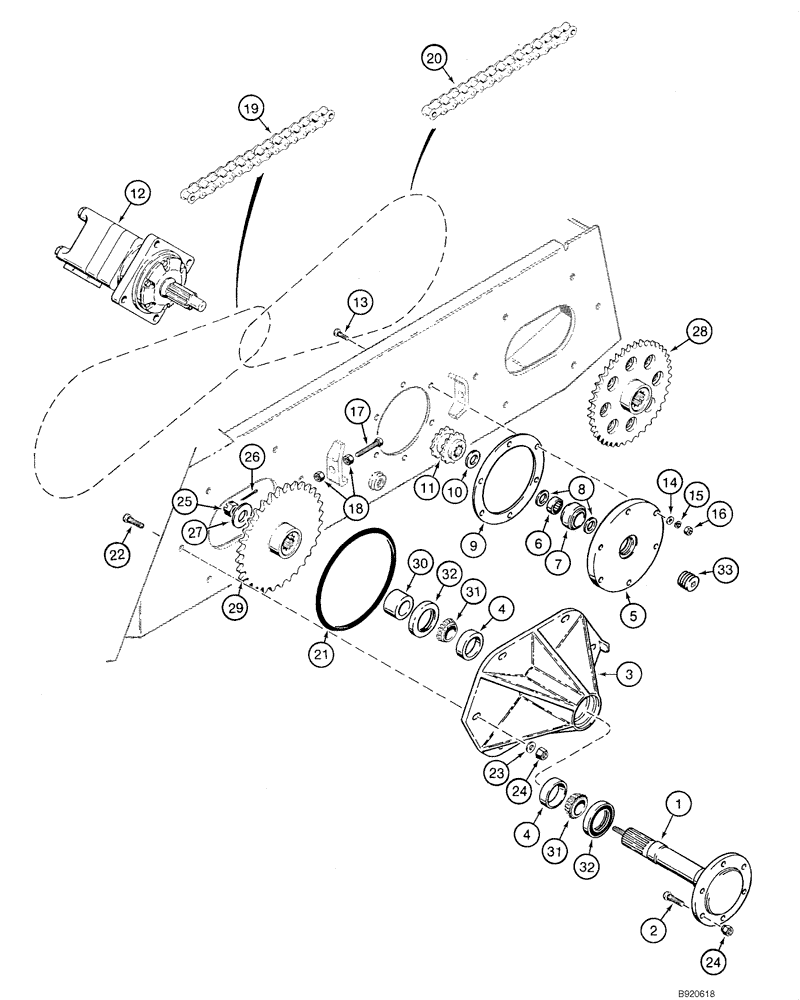

Запчасти Case IH 1840 (06-13) - AXLES - DRIVE CHAINS, JAF0098608 - (06) - POWER TRAIN

1

103825A1

AXLE

Axle; Wheel, JAF0098608, Incl 2

1шт.

2

130782A1

WHEEL BOLT,Rnd Hd, 9/16" - 18 x 40mm, Gr 5

9/16" x 1.575"; Replaces H439302, Incl in 1

6шт.

3

199283A1

HUB

Axle; Incl. 4; Replaces H438366

4шт.

4

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

2-57/64 in; Replaces D53762

8шт.

5

H439300

BEARING HOUSING

Bearing

2шт.

6

D80554

NEEDLE BEARING CAGE

Hydraulic Motor Shaft

2шт.

7

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

Self-Aligning

2шт.

8

D132922

BEARING WASHER,28.57mm ID x 38.27mm OD x 3.05mm Thk

4шт.

9

D136535

GASKET,1.57mm Thk

Bearing Housing

2шт.

10

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

Thrust Drive Sprocket

2шт.

11

H436803

DRIVE SPROCKET

10 teeth

2шт.

12

H673449

MOTOR, HYDRAULIC

JAF0098608 - JAF0134061; No Longer Available, Order 231815A1; See Figure 08-15

2шт.

6.3" Diameter Pilot

1шт.

231815A1R

1840 JAF0098608 - JAF0134061, Reman For New P/N H673449

REMAN-HYD MOTOR

2шт.

231815A1C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

12

231815A1

MOTOR, HYDRAULIC

See Figure 08-15

2шт.

6.3" Diameter Pilot

1шт.

231815A1R

1840 JAF0098608-

REMAN-HYD MOTOR

2шт.

231815A1C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

12

230459A1

MOTOR, HYDRAULIC

JAF0134061 - ; See Figure 08-17; Replaces 141387A2

2шт.

5" Diameter Pilot

1шт.

230459A1R

1840 JAF0098608-

REMAN-HYD MOTOR

2шт.

230459A1C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

12

135858A2

MOTOR, HYDRAULIC

With Hydraulic Brakes; European Models; See Figure 08-18; No Longer Available, Order 230460A1

2шт.

12

230460A1

MOTOR, HYDRAULIC

With Hydraulic Brakes; European Models; See Figure 08-18A

2шт.

13

H435895

BOLT

Pressed In Type; Bearing Housing To Chassis

12шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

13/32 x 13/16 x 1/16"; Replaces 495-11041

12шт.

15

492-11038

LOCK WASHER,3/8"

If used

12шт.

16

232-4116

NUT,3/8"-16, GC

Replaces 425-106

12шт.

17

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

8шт.

19

H435116

CHAIN,#80H, 62 Links x 25.4mm = 1574.8mm

62 pitches; Endless; Rear

2шт.

20

H435117

CHAIN (CE)

56 pitches; Endless; Front

2шт.

21

238-5445

O-RING,0.275" Thk x 7.97" ID, -445, Cl 5, 75 Duro

Hub; if used

4шт.

22

H439302

WHEEL BOLT

9/16 inch NF 47.5 mm; Hub To Chassis; Pressed In Type

24шт.

23

H439308

WASHER,16mm ID x 33.3mm OD x 4.7mm Thk

24шт.

24

G49041

WHEEL NUT

9/16 in

48шт.

25

25-1316

NUT,1"-14, G5

Replaces 425-1316

4шт.

26

432-1028

COTTER PIN,5/32" x 1 3/4"

Replaces 32-1028

4шт.

27

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

1шт.

28

H435243

DRIVE SPROCKET

33 teeth; Axle; Front

2шт.

29

H435258

DRIVE SPROCKET

33 teeth; Axle; Rear

2шт.

30

H438367

SPACER,42.97mm ID x 57.23mm OD x 30mm L

43 x 57 x 30 mm

4шт.

31

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

1-25/32 inch ID; Replaces D53766

8шт.

32

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

8шт.

33

591780

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

Replaces 221-846

1шт.

34

B93176

BEARING,45.24mm ID x 73.46mm OD

Kit P/N B93176 CONSISTS OF: QTY. 2, 399933C91 CONE; QTY. 2, 399934C1 CUP; QTY. 2 D53767 SEAL. APPLICATIONS: CASE UNI-LOADER MODELS: 1830, 1835, 1835B, 1835C, 1840. (Not Shown)

1шт.
