Запчасти Case IH 1840 (06-09D) - TANDEM PUMP ASSEMBLY, JAF0343519 - (06) - POWER TRAIN

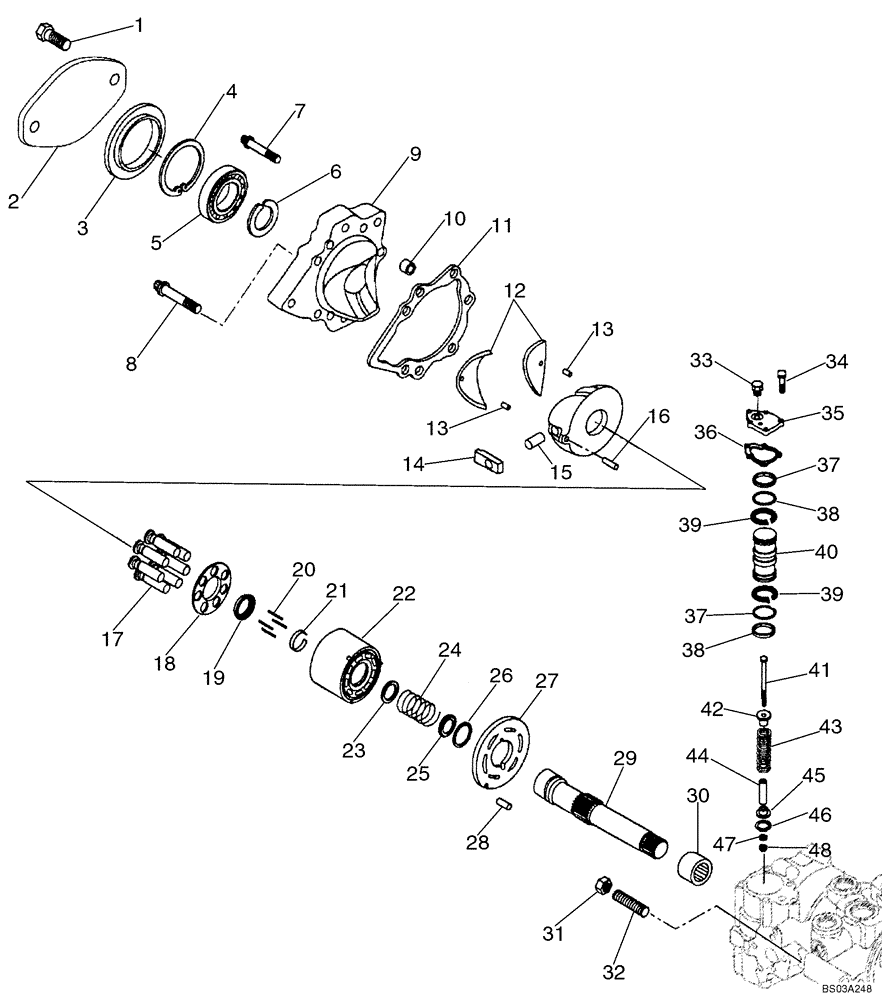

Схема запчастей Case IH 1840 - (06-09D) - TANDEM PUMP ASSEMBLY, JAF0343519 - (06) - POWER TRAIN
25
15
39
38
38
19
21
37
47
14
36
40
33
29
45
20
10
22
17
42
30
37
13
32
5
2
43
7
9
39
41
16
18
48
3
4
11
13
35
46
23
31
44
27
12
28
6
26
8
1
34
24

Артикул

Название

Примечание

Количество

388795A1

PUMP,45.88 CC

Tandem; See Figure 06-13; Incl. 06-09 - 06-09D; JAF0343519 -

1шт.

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

H438063

LARGE PLATE

PLATE, LARGE

1шт.

3

251661A1

SEAL

1шт.

4

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

5

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

6

100-11137

SNAP RING,#137, Ext

Shaft, bearing

1шт.

7

223680A1

SPECIAL BOLT,Torx, 3/8"

1шт.

8

223677A1

SCREW,Torx, 7/16"

6шт.

9

H436705

COVER

1шт.

10

N13994

SPACER

1шт.

11

H436704

GASKET,0.79mm Thk

Front Cover

1шт.

12

193488A1

BEARING LINER

2шт.

13

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

14

N13224

SLEEVE

1шт.

178632A1

COVER

Incl. 15, 16

1шт.

15

N13254

PIN

1шт.

16

324610A1

PIN

1шт.

402366A1

KIT

Cylinder Block; Incl. 17 - 26

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Assy

7шт.

18

NSS

NOT SOLD SEPARAT

Slipper Guide

1шт.

19

NSS

NOT SOLD SEPARAT

Retainer Guide

1шт.

20

NSS

NOT SOLD SEPARAT

Pin; Slipper Hold-Down

3шт.

21

NSS

NOT SOLD SEPARAT

Retainer

1шт.

22

NSS

NOT SOLD SEPARAT

Cylinder Block

1шт.

23

NSS

NOT SOLD SEPARAT

Washer

1шт.

24

NSS

NOT SOLD SEPARAT

Spring

1шт.

25

NSS

NOT SOLD SEPARAT

Washer

1шт.

26

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

27

128929A1

LARGE PLATE

PLATE, LARGE Valve; Left Hand

1шт.

28

138-217

LOCK PIN,3/16" OD x 7/16" L, Slotted

1шт.

29

N13222

SHAFT

1шт.

30

1277297C1

NEEDLE BEARING

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

1шт.

32

K608432

STUD,1/2" - 13 x 4-1/2"

1шт.

33

76349

PLUG,9/16" - 18 ORB

1шт.

34

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

5шт.

35

H436053

COVER

Servo

1шт.

36

N14063

GASKET

Servo Cover

2шт.

H673773

KIT

Incl. 37, 38

1шт.

37

NSS

NOT SOLD SEPARAT

Piston Ring

2шт.

38

NSS

NOT SOLD SEPARAT

O-ring

2шт.

39

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

4шт.

40

H435772

PISTON

Servo

1шт.

41

370531A1

SCREW

1шт.

42

N14666

GUIDE,1.292" OD

1шт.

43

N13226

SPRING

1шт.

44

N13242

SLEEVE

1шт.

45

N13241

GUIDE,1.292" OD

1шт.

46

N13255

RING

1шт.

47

425-116

NUT,3/8" - 24, Gr 5

1шт.

48

324604A1

NUT,Lock

5шт.

Выбрано товаров: 52
