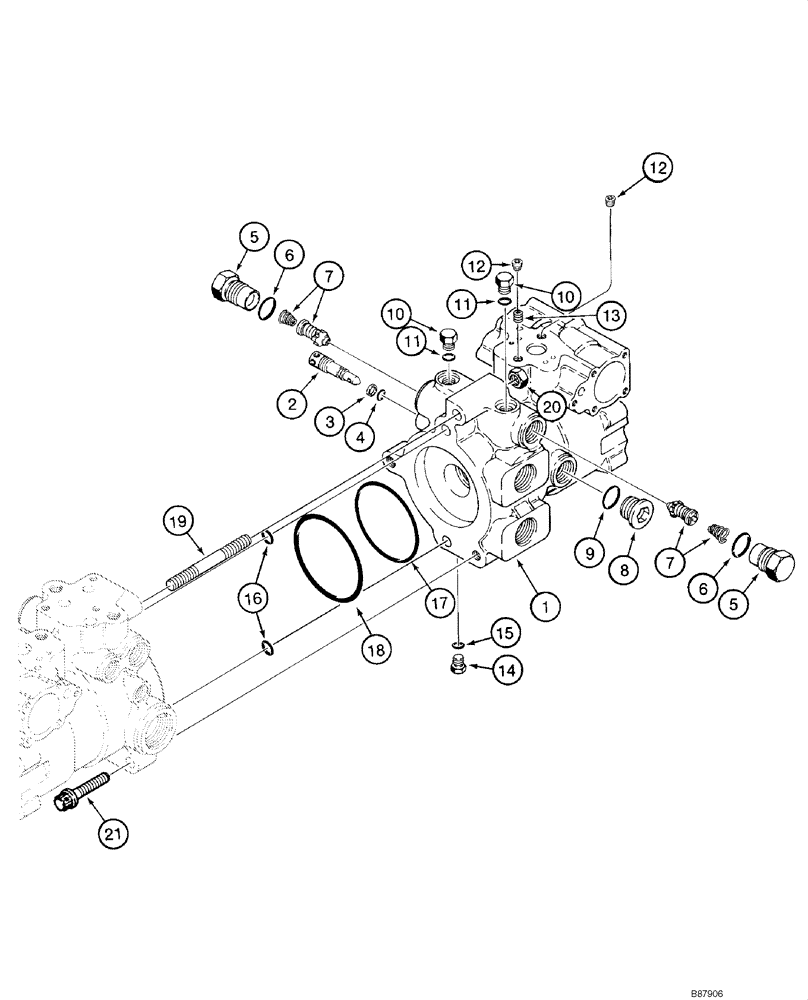

Запчасти Case IH 1840 (06-08) - TANDEM PUMP ASSEMBLY, FRONT DRIVE PUMP, JAF0119226 - JAF0343518 (06) - POWER TRAIN

127931A2

PUMP

Tandem; Incl. 1 - 21; JAF0119226 - JAF0343518; Also Incl. Figure 06-08 - 06-08E; Replaces 127931A1; No Longer Available, Order 388795A1, See Figure 06-09 - 06-09D

1шт.

1

NSS

NOT SOLD SEPARAT

Housing; Front Drive Pump

1шт.

2

H436008

BY-PASS VALVE

1шт.

3

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Bypass Valve

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

H436258

VALVE, PRESSURE RELI

EF Incl. 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

Plug; Incl. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, Relief; Pump

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Incl. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. 11

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

12

F23137

PLUG

2шт.

13

H436007

PLUG

0.062 in

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Front Housing, small

2шт.

17

238-6238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

Front Housing

1шт.

18

H437190

O-RING

Front Housing To Rear Housing; Quad

1шт.

19

K608432

STUD,1/2" - 13 x 4-1/2"

Lifting Bracket

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.

21

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

12 point flange

2шт.

140008A1

GASKET KIT

Complete Overhaul; Incl. Parts On Figure 06-08 - 06-08E

1шт.
