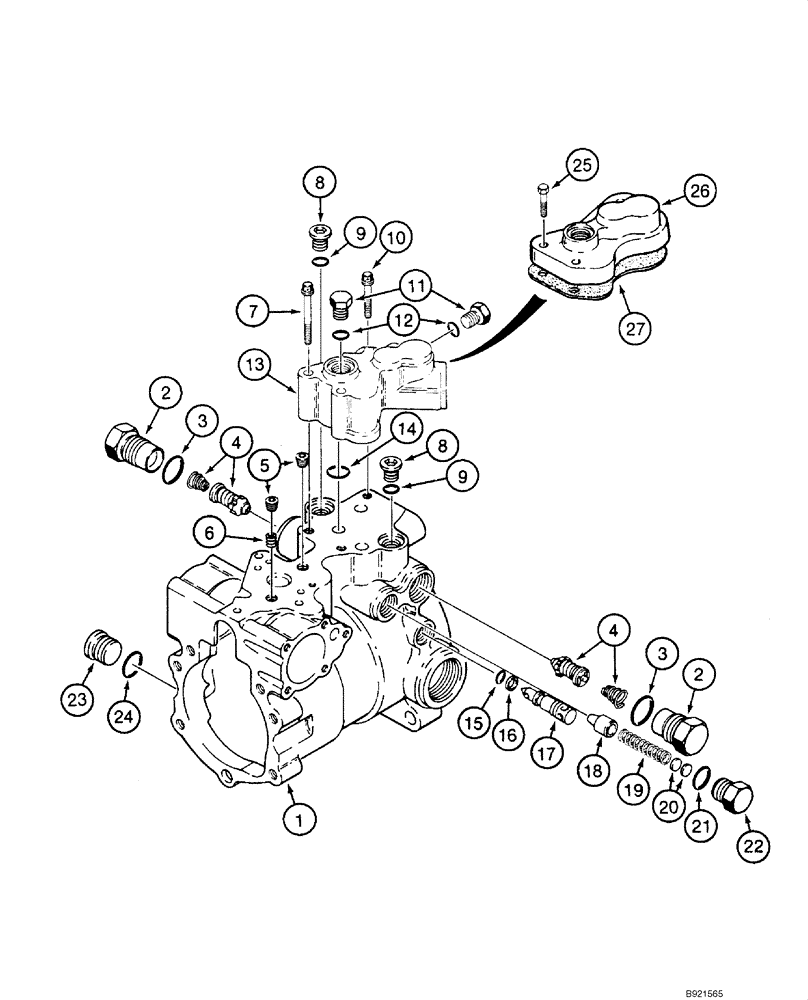

Запчасти Case IH 1840 (06-07C) - TANDEM PUMP ASSEMBLY, REAR DRIVE PUMP, - JAF0119226 (06) - POWER TRAIN

H673333

PUMP

Tandem; Incl. 1 - 27; - JAF0119226; Also Incl. Figure 06-07 - 06-07E; No Longer Available, Order 388795A1; See Figure 06-09 - 06-09D

1шт.

1

NSS

NOT SOLD SEPARAT

Housing; Rear Drive Pump

1шт.

H436258

VALVE, PRESSURE RELI

EF Incl. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

Plug; Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Valve; Relief, Pump

1шт.

5

F23137

PLUG

2шт.

6

H436007

PLUG

0.062 in

1шт.

7

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

If Used

2шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl. 9

2шт.

10

27690R1

12 PT SCREW,Flg, 5/16"-18 x 1 1/2"

12 point flange 5/16 x 1-1/2 in; 8; If Used

1шт.

11

76349

PLUG,9/16" - 18 ORB

Incl. 12

2шт.

13

N13998

ADAPTER

Filter; Requires (2) REF 7, (1) REF 10, (3) REF 14, (2) REF 11; If Used; See REF 26

1шт.

14

H438322

O-RING

Filter Adapter; Replaces N13987; If Used

3шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Bypass valve

1шт.

16

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Bypass Valve

1шт.

17

H436008

BY-PASS VALVE

1шт.

18

V38371

VALVE

Relief Valve

1шт.

19

V38370

SPRING

Relief Valve

1шт.

20

H407767

KIT

Shim; Relief Valve

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

N13266

PLUG

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Incl. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used

3шт.

26

101462A1

ADAPTER

Filter; Requires (3) REF 25, (1) REF 27; If Used; See REF 13

1шт.

27

101463A1

SEAL

Adapter; Used With 101462A1; If Used

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
