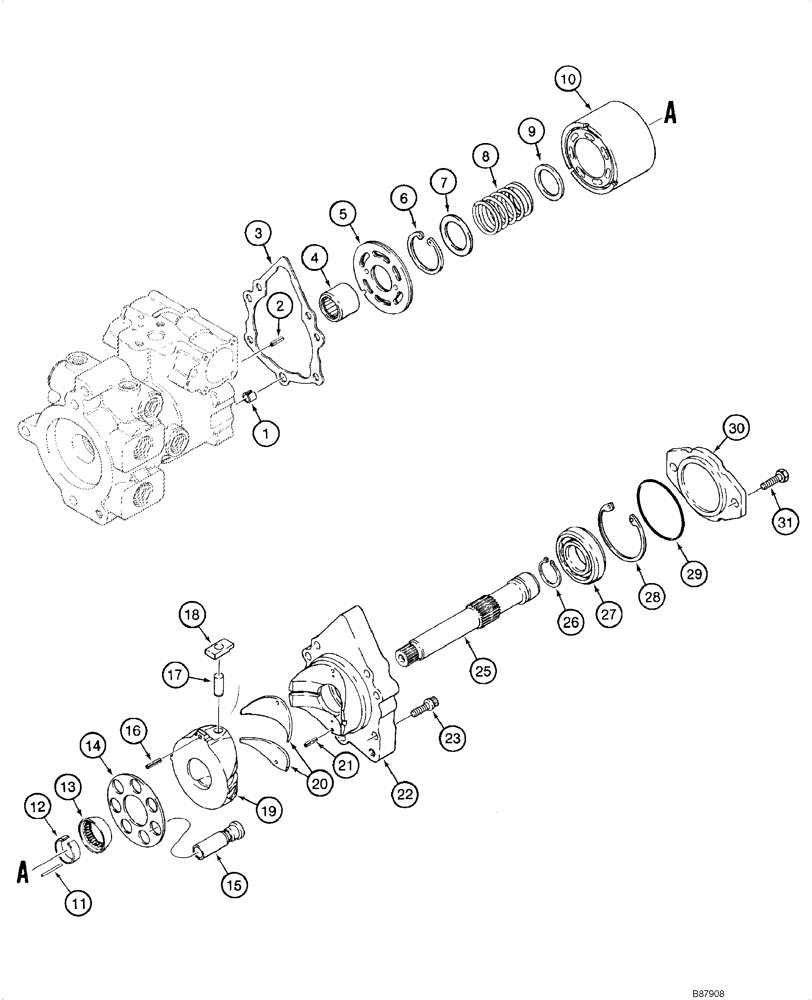

Запчасти Case IH 1840 (06-07B) - TANDEM PUMP ASSEMBLY, FRONT DRIVE PUMP, - JAF0119226 (06) - POWER TRAIN

H673333

PUMP

Tandem; Incl. 1 - 31; - JAF0119226; Also Incl. Figure 06-07 - 06-07E; No Longer Available, Order 388795A1; See Figure 06-09 - 06-09D

1шт.

1

N13994

SPACER

Cover; Locating

1шт.

2

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

3

N14064

GASKET

Pump Housing Cover; Used With N14665, REF 22; No Longer Available, Order H436704

1шт.

3

H436704

GASKET,0.79mm Thk

Cover

1шт.

4

1277297C1

NEEDLE BEARING

Needle Shaft; Replaces N13199

1шт.

5

128929A1

LARGE PLATE

PLATE, LARGE Valve; Left Hand Inner; Cylinder Block; Counter Clockwise Rotation; Replaces N14468

1шт.

115952A1

SET

Block Assy; Replaces 4902/10015

1шт.

6

NSS

NOT SOLD SEPARAT

Ring

1шт.

7

115950A1

WASHER

Spring; Inner; Replaces 4902/10014

1шт.

8

115948A1

SPRING

Cylinder Block; Replaces 4902/10013

1шт.

9

115946A1

WASHER

Spring; Outer; Replaces 4902/10012

1шт.

10

115944A1

CYLINDER BLOCK

Replaces 4902/10011

1шт.

11

110873A1

PIN,2.38mm OD x 33.53mm L

Retaining, Serial Range: guide-shaft

3шт.

12

115943A1

SNAP RING

Retaining Guide; Replaces 4902/10009

1шт.

13

115942A1

GUIDE

Retainer; Replaces 4902/10008 guide

1шт.

14

NSS

NOT SOLD SEPARAT

Retainer; Piston

1шт.

15

NSS

NOT SOLD SEPARAT

Piston; Cylinder Block

7шт.

16

138-130

LOCK PIN,1/4" x 3/4", Slotted

1шт.

17

N13254

PIN

Swash Plate

1шт.

18

N13224

SLEEVE

Pin Retaining

1шт.

19

178632A1

COVER

Incl. 16, 17; Replaces N14469

1шт.

20

N14472

BEARING

2шт.

21

138-51

LOCK PIN,1/8" x 3/8", Slotted

2шт.

22

N14665

COVER

Front; Uses 3/8 in Bolt, 27279R1, REF 23; If Used

1шт.

22

H436705

COVER

Front; Uses 7/16 in Bolt, 80-1716, REF 23; If Used

1шт.

23

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

6шт.

23

80-1716

12 PT SCREW,Flg, 7/16" - 14 x 1", Gr 8

Gr 8

6шт.

25

N13222

SHAFT

Front; Tandem Pump

1шт.

26

100-11137

SNAP RING,#137, Ext

Shaft, bearing

1шт.

27

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

Front Cover; Replaces N13193

1шт.

28

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Front cover, brg

1шт.

29

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

Use with N14665, Ref 22 Only

1шт.

29

H438062

SHAFT SEAL

Plate; Use With H436705, REF 22

1шт.

30

N13258

PLATE

Cover; Use With N14665, REF 22 Only; No Longer Available, Order H438062, REF 29 and H438063, REF 30

1шт.

30

H438063

LARGE PLATE

PLATE, LARGE Cover; Use With H436705 , REF 22 Only

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
