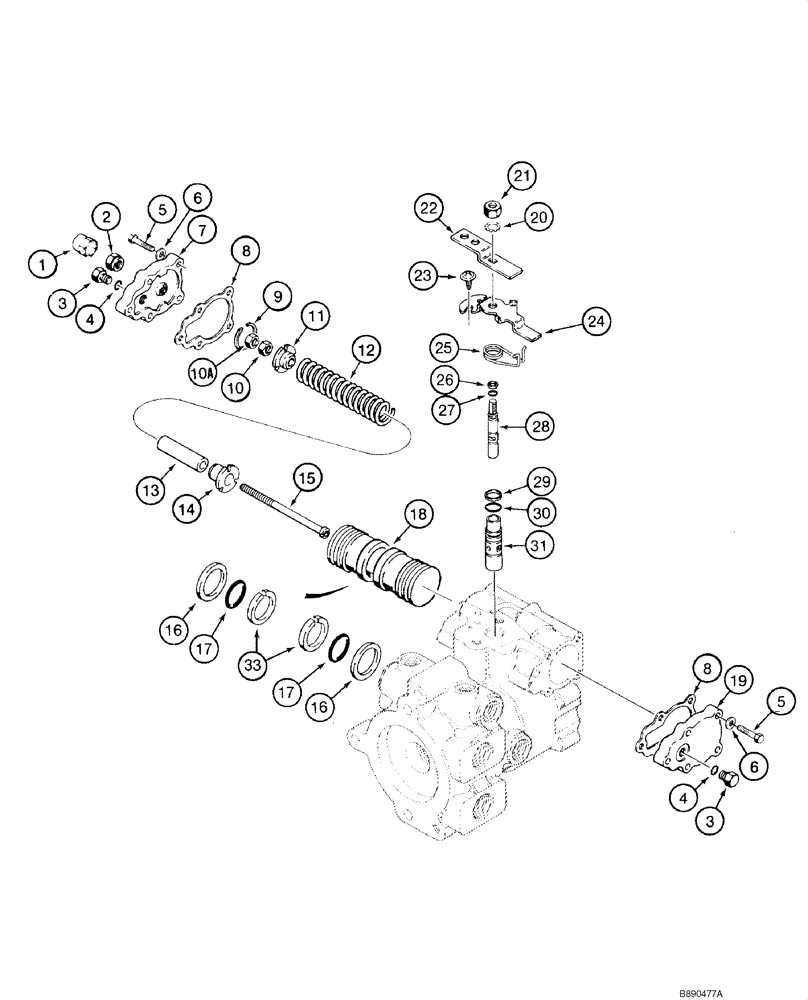

Запчасти Case IH 1840 (06-07A) - TANDEM PUMP ASSEMBLY, FRONT DRIVE PUMP, - JAF0119226 (06) - POWER TRAIN

H673333

PUMP

Tandem; - JAF0119226; Incl. 1 - 33; Also Incl. Figure 06-07 - 06-07E; No Longer Available, Order 388795A1; See Figure 06-09 - 06-09D

1шт.

1

N13249

CAP

Servo Adjusting Nut

1шт.

2

N13260

NUT,Inverted Lock

5/8 in; Adjusting

1шт.

3

76349

PLUG,9/16" - 18 ORB

Servo Cover

2шт.

5

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

1/4 NC x 1-1/4 inch; 8

10шт.

6

492-11025

LOCK WASHER,1/4"

Replaces 495-11025

10шт.

7

H436053

COVER

Servo; Adjusting End

1шт.

8

N14063

GASKET

Servo Cover

2шт.

9

N13255

RING

Retaining; Servo

1шт.

10

425-116

NUT,3/8" - 24, Gr 5

Inner

1шт.

10a

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

11

N14666

GUIDE,1.292" OD

Spring; Outer

1шт.

12

N13226

SPRING

Servo

1шт.

13

N13242

SLEEVE

Bolt

1шт.

14

N13241

GUIDE,1.292" OD

Spring; Inner

1шт.

15

N13267

SCREW

Servo

1шт.

H673773

KIT

Ring; Incl. 16, 17

1шт.

16

N14668

RING, PISTON

Servo; No Longer Available, Order H673773

2шт.

17

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

18

H435772

PISTON

Servo

1шт.

19

H436065

COVER

Servo; Non-adjusting End

1шт.

20

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

21

H436054

SPECIAL NUT,Lock, 5/16" - 18

Incl. Lock Washer

1шт.

22

N13251

HANDLE

Control

1шт.

23

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

1шт.

24

N13250

BRACKET

Neutral

1шт.

25

N13248

SPRING,3/4" OD

Neutral

1шт.

26

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Control Spool

1шт.

27

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Control Spool

1шт.

28

H435769

SPOOL

Control; Rotary

1шт.

29

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

Control Sleeve

1шт.

30

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

31

N14477

SLEEVE VALVE

Control Spool; Black; No Longer Used, For Service, Order 110671A1

1шт.

31

110671A1

SLEEVE

Control Spool; Gold

1шт.

33

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

Servo Piston

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
