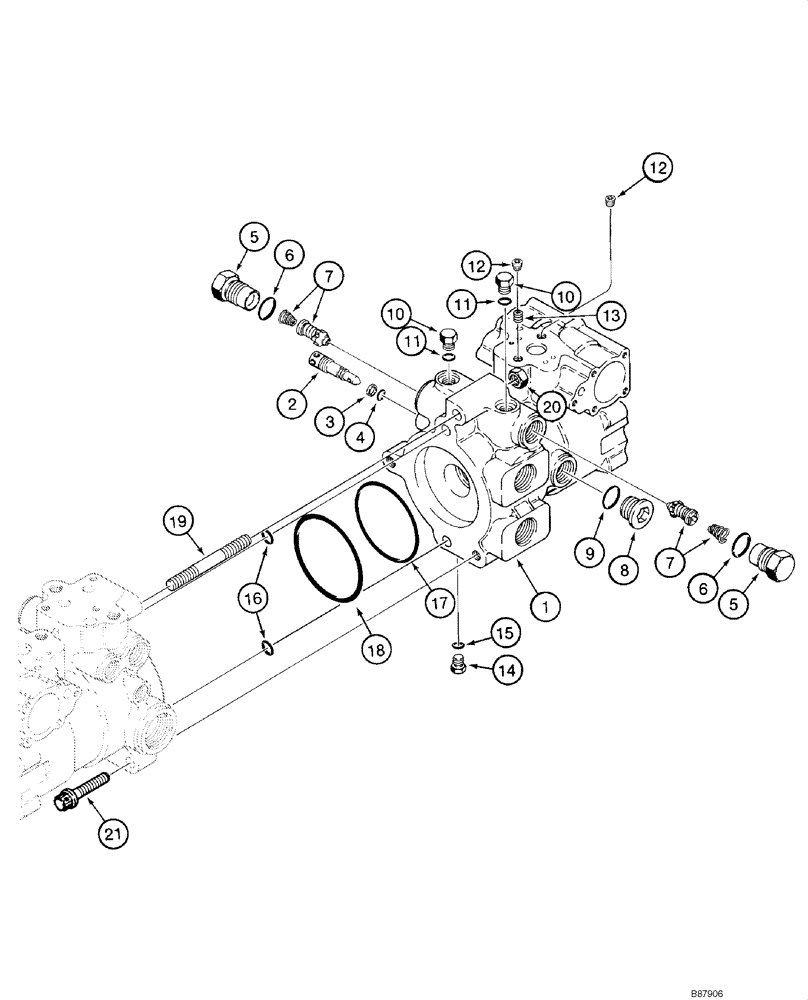

Запчасти Case IH 1840 (06-07) - TANDEM PUMP ASSEMBLY, FRONT DRIVE PUMP, - JAF0119226 (06) - POWER TRAIN

H673333

PUMP

Tandem; Incl. 1 - 21; Also Incl. Figure 06-07 - 06-07E; - JAF0119226; No Longer Available, Order 388795A1; See Figure 06-09 - 06-09D

1шт.

1

NSS

NOT SOLD SEPARAT

Housing; Front Drive Pump

1шт.

2

H436008

BY-PASS VALVE

1шт.

3

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Backup Bypass Valve

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

H436258

VALVE, PRESSURE RELI

EF Incl. 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

Plug; Incl. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Valve; Relief, Pump

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Incl. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. 11

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

F23137

PLUG

2шт.

13

H436007

PLUG

0.062 in

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

17

H436094

SEAL,Square, 3.4mm Thk x 75.34mm ID

Front Housing; Large

1шт.

18

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

4 ID x 1/10 in; Front Housing To Rear Housing; If Used

1шт.

18

H437190

O-RING

Front Housing To Rear Housing; Quad; If Used

1шт.

19

K608432

STUD,1/2" - 13 x 4-1/2"

Lifting Bracket

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.

21

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

12 point flange 1/2 NC x 2 in; 8

2шт.
