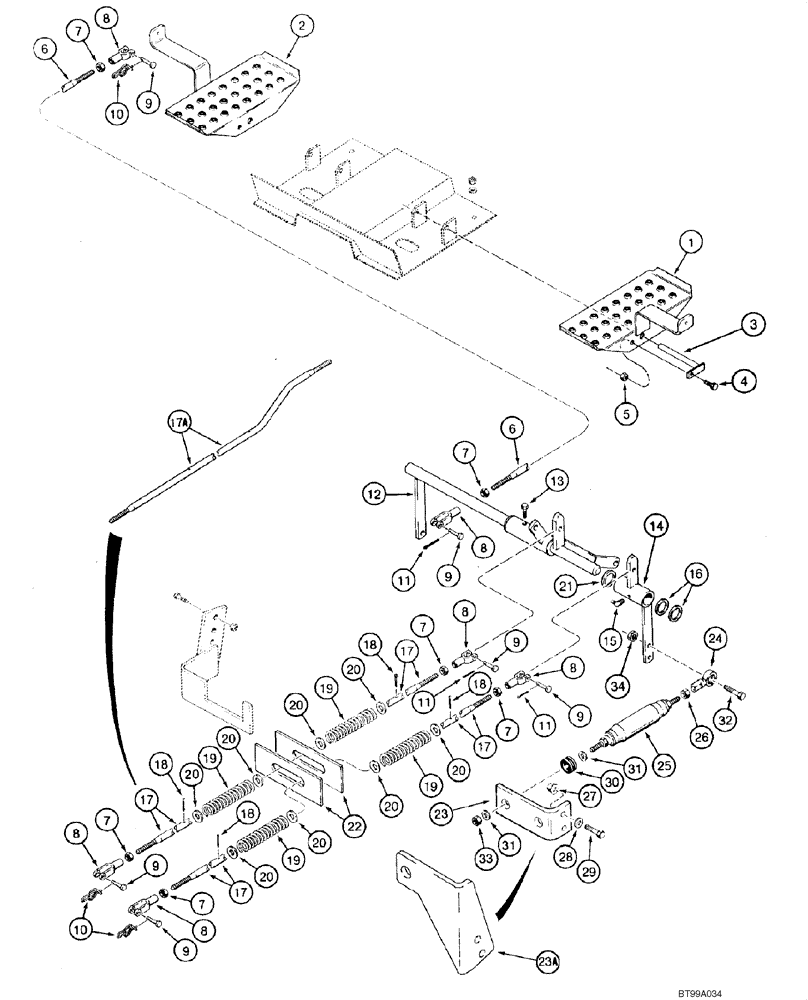

Запчасти Case IH 1840 (06-04) - LOADER CONTROLS, MODELS WITH FOOT CONTROLS (06) - POWER TRAIN

1

H673772

PEDAL

Foot Control; Right Hand

1шт.

2

H673783

PEDAL

Foot Control; Left Hand

1шт.

3

H673771

PIN,12.7mm OD x 140mm L

Pedal Mounting

2шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

6

H436801

ROD ASSY.

Foot Pedal

2шт.

7

425-115

NUT,5/16"-24, G5

8шт.

8

H382283

YOKE,5/16" - 24

UNIVERSAL JOINT YOKE Replaces E20573

8шт.

9

D50559

CLEVIS,9.53mm OD x 28.32mm L

8шт.

10

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

4шт.

11

432-412

COTTER PIN,1/16" x 3/4"

4шт.

12

H674386

SHAFT

Cross; Loader

1шт.

13

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

1шт.

14

H674388

CONTROL LEVER

Cross Shaft

1шт.

15

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

90 degree, 1/8 PT x 3/4 in

1шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

3/4 in; Replaces H426817

2шт.

17

H437515

ROD

Loader Valve Connecting; Straight; Models Without Self Leveling, - JAF0120445

2шт.

17a

H437737

ROD

Loader Valve Connecting; Two Bends; Models With Self Leveling; All Models JAF0120445 -

2шт.

18

432-816

COTTER PIN,1/8" x 1"

4шт.

19

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

4шт.

20

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

8шт.

21

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1шт.

22

H436963

LARGE PLATE

PLATE, LARGE Centering

2шт.

23

345787A1

ANGLE BAR

Shock Mount; Replaces 114834A1

2шт.

23a

345787A1

ANGLE BAR

Shock Mount; Models With Fuel Injection Pump J935679; See Figure 03-07

2шт.

24

A32398

BALL JOINT

3/8 in; Female; Replaces K59922

2шт.

25

D66538

SHOCK ABSORBER

2шт.

26

425-116

NUT,3/8" - 24, Gr 5

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

28

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

30

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in

2шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

6шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

33

231-2446

NUT,3/8"-24, GB

3/8 in

2шт.

34

231-5146

FLANGE NUT,3/8"-16

4шт.

35

H437462

DECAL

LH Pedal; Not Illustrated

1шт.

36

H437463

DECAL

RH Pedal; Not Illustrated

1шт.
