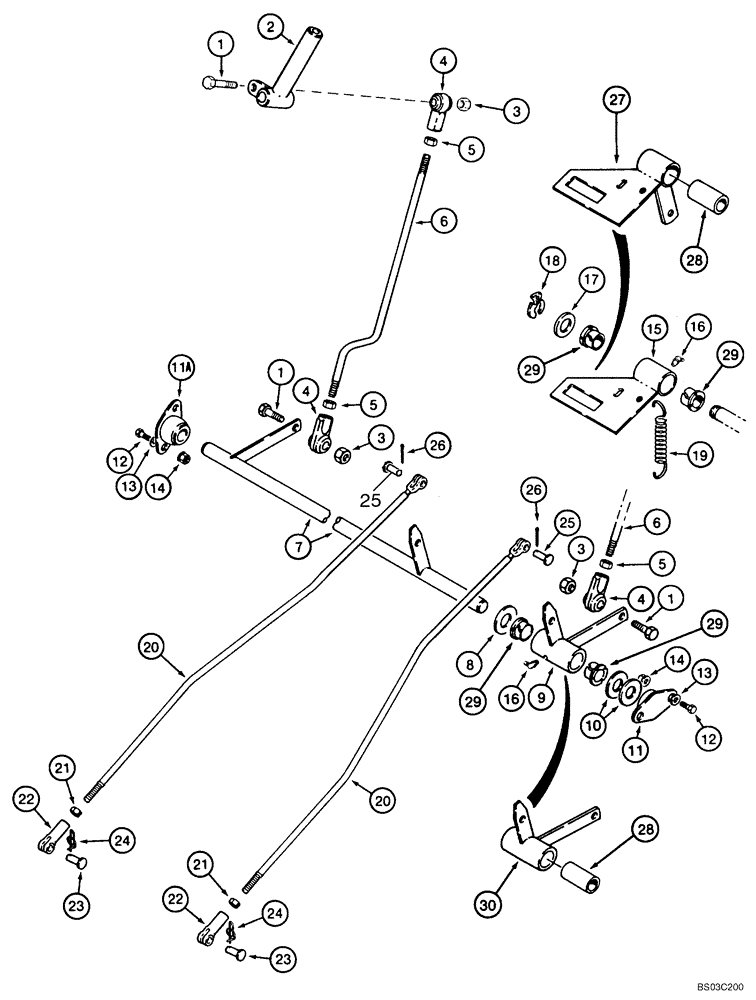

Запчасти Case IH 1840 (06-03) - LOADER CONTROLS, MODELS WITH HAND CONTROLS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
4шт.
2
H439164
LEVER
Pump Control; Replaces D128278
2шт.
3
232-4116
NUT,3/8"-16, GC
4шт.
4
A32398
BALL JOINT
Female; Rod End; Replaces D59922
4шт.
5
425-116
NUT,3/8" - 24, Gr 5
4шт.
6
D128257
ROD
Control Lever To Cross Shaft
2шт.
7
H673557
SHAFT ASSY.
Cross; Loader
1шт.
8
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
1шт.
9
H674387
LEVER
Cross Shaft
1шт.
10
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
3/4 inch
2шт.
11
D139039
BEARING ASSY,19mm ID
Cross Shaft Mounting
2шт.
12
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
11a
R29593
FLANGED BEARING,1.125" OD x 0.562"
Cross Shaft Mounting; 1-3/4 Inch Spacing Between Mounting Holes
2шт.
13
H426775
WASHER
4шт.
14
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
15
H672918
LOCK
Loader Lock; No Longer Available, Order 120923A1; See Figure 07-03
1шт.
16
219-92
LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF
90 degree, 1/8 PT x 3/4 in; Used With REF 9, 15; Replaces 219-55
2шт.
17
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
1шт.
18
D143416
CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk
1шт.
19
D124939
SPRING
Control Lever
1шт.
20
H435759
ROD
Loader Valve Connecting; Straight; Models Without Self Leveling, - JAF0120445; Not Illustrated
2шт.
20
H436766
ROD
Loader Valve Connecting; Two Bends; Models With Self Leveling; All Models JAF0120445 -
2шт.
22
H382283
YOKE,5/16" - 24
UNIVERSAL JOINT YOKE Loader Valve Connecting Rod; Replaces E20573
2шт.
23
D50559
CLEVIS,9.53mm OD x 28.32mm L
Loader Rod
2шт.
24
D131983
COTTER PIN,1.04mm OD x 21.4mm L, Ring
2шт.
25
427-5094
CLEVIS PIN,7.92mm OD x 23.88mm L
2шт.
26
432-610
COTTER PIN,3/32" x 5/8"
2шт.
27
132437A1
PITMAN
Models With Single Seat Bars
1шт.
28
119616A1
BUSHING
Used With REF 15, 27, 30
1шт.
29
72323
BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L
If Used
4шт.
Выбрано товаров: 31
