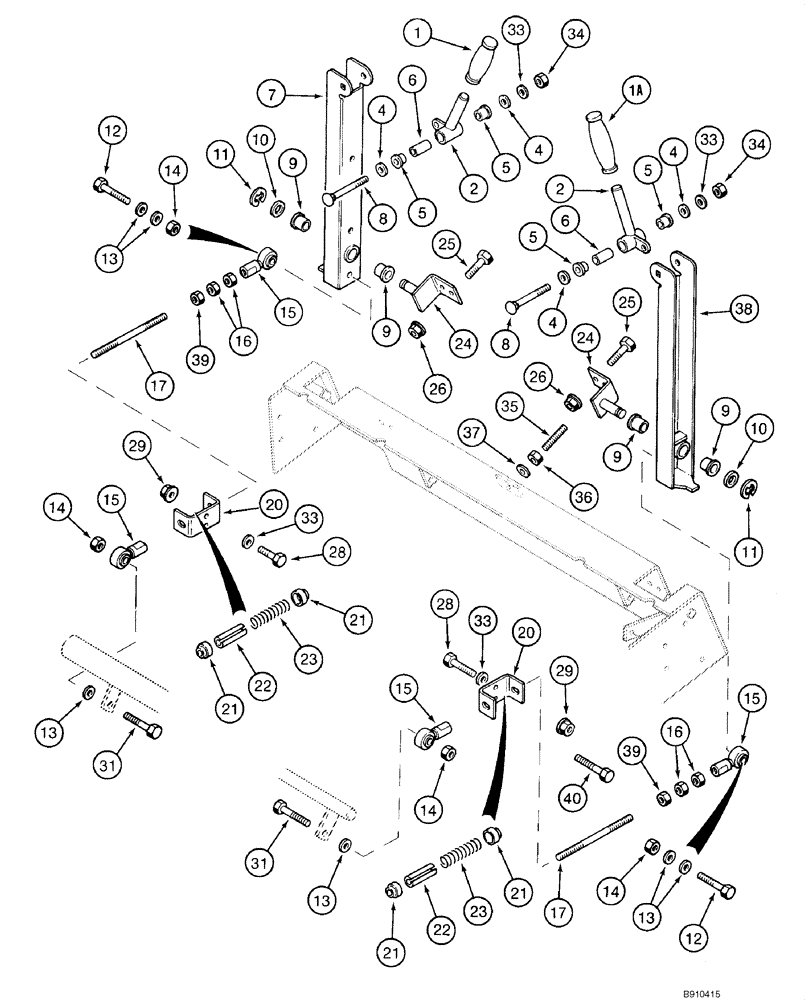

Запчасти Case IH 1840 (06-02) - PUMP CONTROLS, FORWARD AND REVERSE - LINKAGE (EUROPE, - JAF0098065) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
E99358
HANDLE
Control Lever; Left Hand
1шт.
1a
E99359
HANDLE
Control Lever; Right Hand
1шт.
2
D133283
LEVER
Pump; Control
2шт.
4
D128964
WASHER
If Used
4шт.
5
E20959
BUSHING
Control Lever
4шт.
6
H435707
SPACER,11.66mm ID x 15.88mm OD x 53mm L
Control Lever
2шт.
7
H673190
ARM
Control Lever; Left Hand
1шт.
8
711-8070
CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 70mm, Cl 8.8
8 - 1.25 x 70 mm; No Longer Available, Order 411-544, 234-10431
2шт.
9
72323
BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L
4шт.
10
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
1шт.
11
D143416
CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk
2шт.
12
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
2шт.
13
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
6шт.
14
232-4116
NUT,3/8"-16, GC
4шт.
15
A32398
BALL JOINT
3/8 in; Female
4шт.
16
425-156
JAM NUT,Jam, 3/8"-24, G5
4шт.
17
H435920
ROD
Control; Pump Cross Shaft
2шт.
20
D127561
BRACKET
Spring Retaining
2шт.
21
D63156
SPRING CUP
4шт.
22
D127563
PIN, SPLIT (COTTER)
PIN, COTTER
2шт.
23
D70304
COMPRESSION SPRING,0.955" OD x 4.00" L
Rod
2шт.
24
D128237
PIVOT
Control Lever Arm; With Shaft
2шт.
25
413-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
4шт.
26
231-5146
FLANGE NUT,3/8"-16
4шт.
28
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
3шт.
29
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
31
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
2шт.
33
H426775
WASHER
4шт.
34
30674R1
CROWN NUT,Crown, M8, Cl6
8 - 1.25 mm
2шт.
35
481-33832
SET SCREW,3/8"-16 x 2", Slotted
3/8 NC x 2 in
4шт.
36
425-146
JAM NUT,3/8" - 16, Gr 5
8шт.
37
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
8шт.
38
H673191
ARM
Control Lever; Right Hand
1шт.
39
425-116
NUT,3/8" - 24, Gr 5
2шт.
40
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
5/16 NC x 1-1/4 in
1шт.
Выбрано товаров: 35
