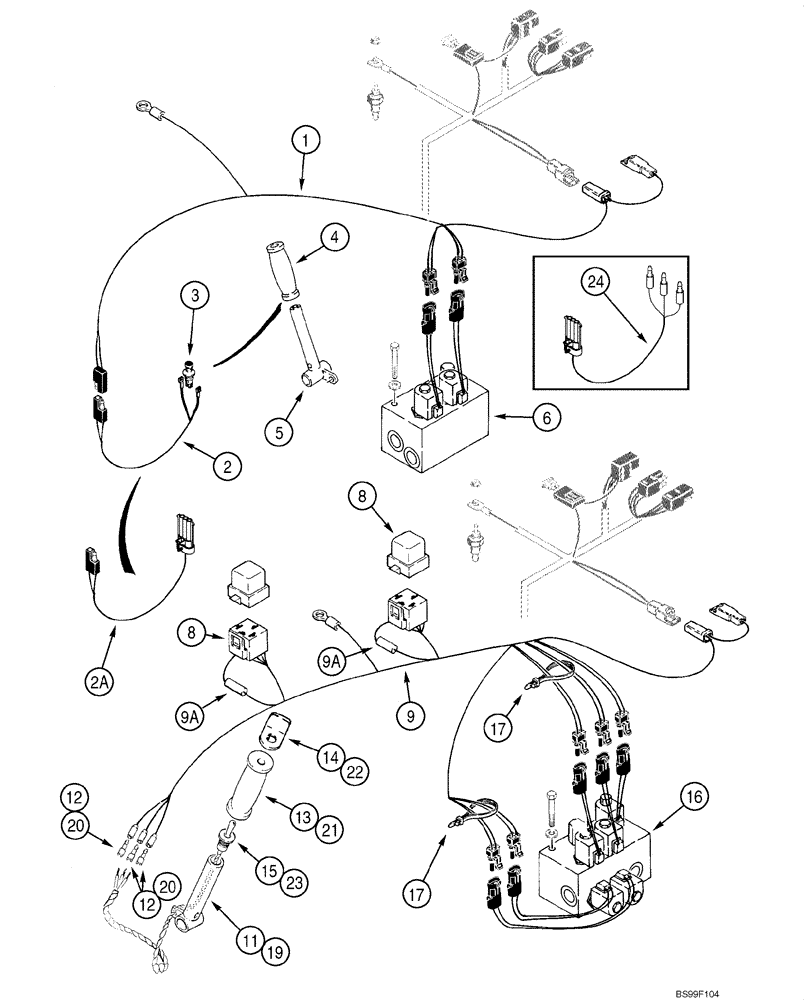

Запчасти Case IH 1840 (04-23) - HARNESS - OPTIONAL HIGH FLOW HYDRAULICS (04) - ELECTRICAL SYSTEMS

1

112654A1

HARNESS

High Flow; REF 1 - 7 Used With Single Directional Solenoid Valve

1шт.

2

D134076

HARNESS

Horn Switch

1шт.

2a

348168A1

HARNESS

Jumper

1шт.

3

112653A1

SWITCH

High Flow

1шт.

4

D133282

HANDLE

Control Lever

1шт.

5

D133283

LEVER

Control; Pump

1шт.

6

117870A1

SOLENOID

High Flow; Single Directional; See Figure 08-64

1шт.

7

120558A1

DECAL

High Flow; Single Directional; Not Illustrated, See Figure 09-41

1шт.

8

D128310

RELAY

30 amp; High Flow; REF 8 - 18 Used With Single Directional Solenoid Valve

2шт.

119858A1

HARNESS

High Flow; Bi-Directional

1шт.

9

NSS

NOT SOLD SEPARAT

Harness

1шт.

9a

113699A1

RECTIFIER

2-5/8

2шт.

120225A1

LEVER

Control, With Toggle Switch; Incl. 11 - 15; No Longer Available, Order Components Separately

1шт.

11

H439164

LEVER

Control

1шт.

12

E20680

TERMINAL CONNECTOR,Male

Male

3шт.

13

D133282

HANDLE

Control Lever

1шт.

14

123676A1

SHIELD

Switch

1шт.

15

177673A1

PRESSURE SWITCH

Toggle; Replaces 101615A2

1шт.

16

111479A1

SOLENOID VALVE

High Flow; Bi-Directional; See Figure 08-65

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

18

120559A1

DECAL

High Flow; Bi-Directional; Not Illustrated, See Figure 09-41

1шт.

182100A1

LEVER ASSY.

Control; Incl. 19 - 23; Not Available As An Assembly, Order Components; Models With Emissions Certified Engine

1шт.

19

H439164

LEVER

1шт.

20

E20680

TERMINAL CONNECTOR,Male

3шт.

21

D133282

HANDLE

1шт.

22

182099A1

SHIELD

1шт.

23

177673A1

PRESSURE SWITCH

1шт.

24

348169A1

Jumper

1шт.

A149801

FUSE,Lt Blue, 15 Amp

15 amp; Not Illustrated

1шт.
