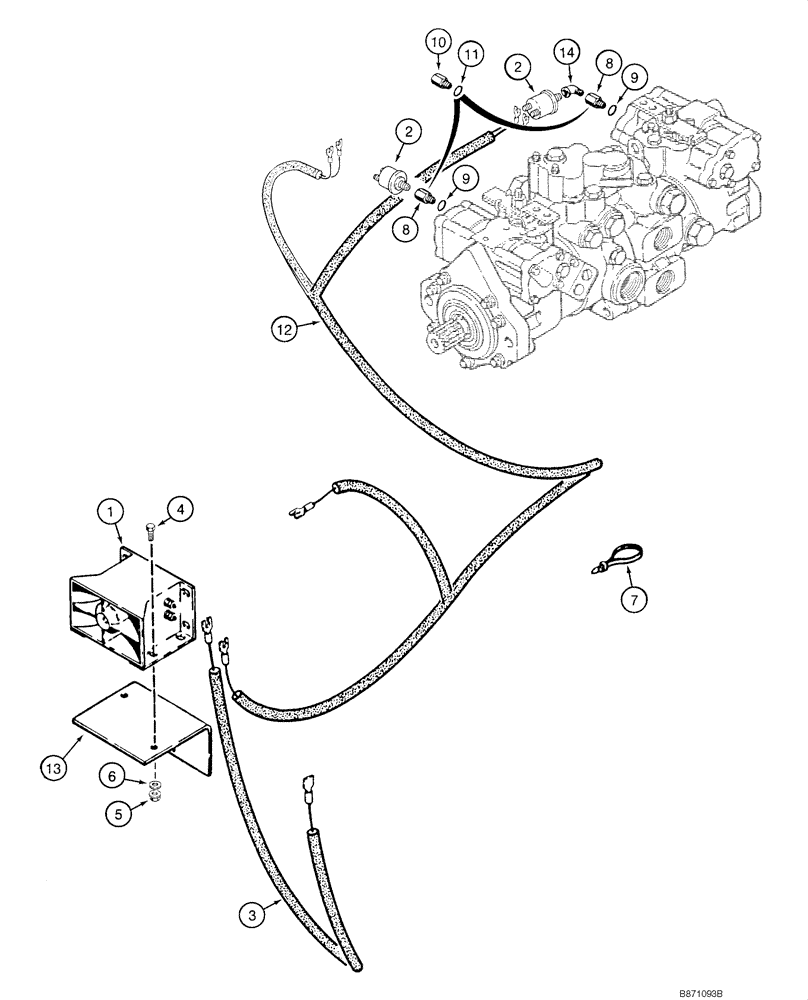

Запчасти Case IH 1840 (04-22) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

Backup; If Used

1шт.

1

283178A1

BUZZER

If Used; No Longer Available, Order 325258A1

1шт.

1

325258A1

ALARM

Service Kit For 283178A1

1шт.

1

324299A1

ALARM

Backup; If Used

1шт.

2

135960A1

PRESSURE SWITCH

Pressure; Replaces H436246; Used With D131972

2шт.

2

333268A1

SWITCH, PRESSURE

PRESSURE SWITCH Used With 325258A1 or 324299A1

2шт.

3

H436672

ELECTRICAL WIRE

WIRE 540 mm; Alarm; At Hydraulic Oil Filter

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

8

218-5098

FITTING

7/16-20 O-ring boss x 1/8 in; Female; Incl. 9; If Used

2шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

D137424

FITTING

9/16-18 O-ring x 1/8 in; Female; Incl. 11; If Used

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

H436121

HARNESS

Backup Alarm

1шт.

13

D139818

BRACKET

Mounting

1шт.

14

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

A42502

GROMMET

Not Illustrated

1шт.
