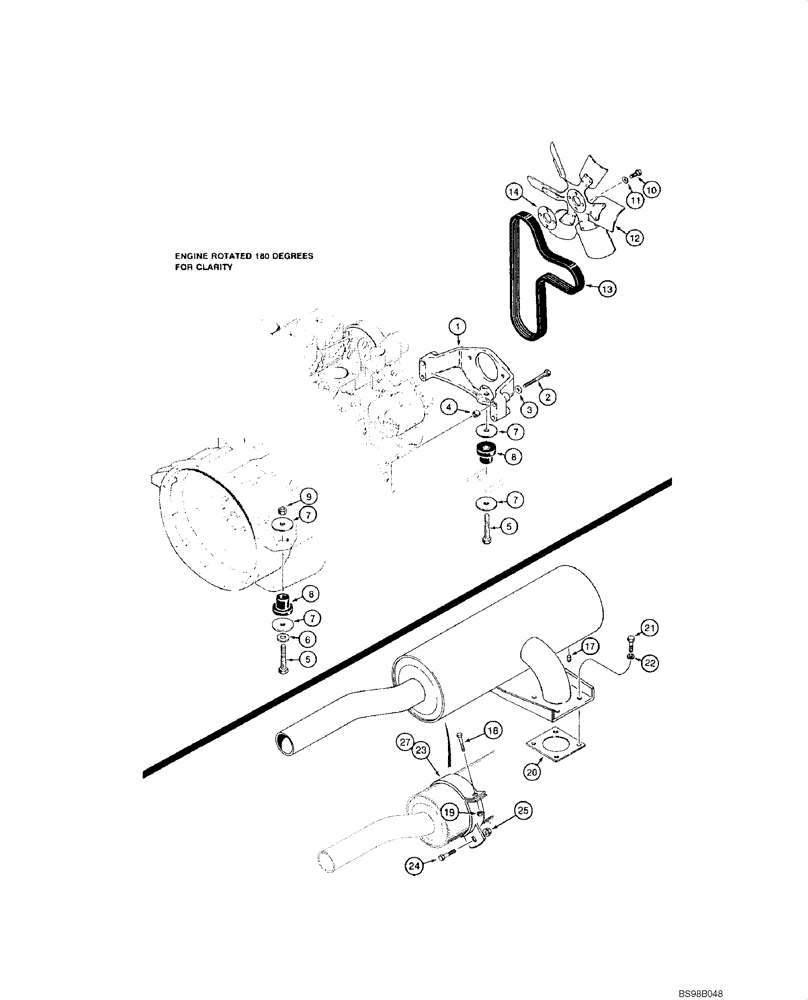

Запчасти Case IH 1840 (02-02) - ENGINE MOUNTING - EXHAUST SYSTEM (02) - ENGINE

1

247421A1

SUPPORT

Rear; Replaces D131504

1шт.

2

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

12 - 1.75 x 85 mm

4шт.

3

495-11053

WASHER,1/2", SAE

Replaces 195-533

4шт.

4

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

2шт.

5

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

Replaces 413-1056

3шт.

6

495-21069

WASHER,5/8"

11/16 x 1-3/4 x 9/64 in

2шт.

7

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

5-6шт.

8

A140221

MOUNTING PARTS

North American Models

3шт.

8

308706A1

SUPPORT

European Models

1шт.

9

832-10416

NUT,M16 x 2, Cl 8

Replaces 232-14110

2шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

Models Without Emissions Certified Engine; Replaces 614-10030

4шт.

10

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

Models With Emissions Certified Engine With Fuel Injection Pump J933090, See Figure 03-07

4шт.

10

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

10 - 1.5 x 80 mm; Models With Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-08

4шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

12

1998736C1

FAN,7 Blades, 450mm OD

Models Without Emissions Certified Engine; Replaces A173543

1шт.

12

301849A1

FAN

Models With Emissions Certified Engine; Replaces A173543, 1998736C1

1шт.

13

J911558

V-BELT,27.92mm W x 1498.6mm L, 8 Ribs

European Models, JAF0098065, North American Models, JAF0118968, Used With Sound Package Option

1шт.

13

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

89DBA Noise Kit, European Models JAF0098065, North American Models JAF0118968, Standard Speed Fan

1шт.

13

J911558

V-BELT,27.92mm W x 1498.6mm L, 8 Ribs

Models With Emissions Certified Engine, Used with Sound Package Installed

1шт.

14

H437716

SPACER

Aluminum; Models Without Emissions Certified Engine; If Used

1шт.

14

H437612

SPACER

Steel; Models Without Emissions Certified Engine; If Used

1шт.

14

A184545

SPACER

Models With Emissions Certified Engine With Fuel Injection Pump J933090, See Figure 03-07

1шт.

14

A184523

SPACER

Models With Emissions Certified Engine With Fuel Injection Pump J935679, See Figure 03-08; Replaces D142327

1шт.

15

A189113

MUFFLER

Standard; Models Without Emissions Certified Engine

1шт.

16

117000A1

MUFFLER,W/ Spark Arrester

Spark Arresting; Replaces 103319A1; Models Without Emissions Certified Engine; Incl. 17 - 19

1шт.

26

298119A1

MUFFLER

Spark Arresting; Models With Emissions Certified Engine; Incl. Ref 17 - 19, 27; Replaces 103319A1

1шт.

17

217-77

PLUG

3/8 inch PT

1шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19

232-4616

LOCK NUT,3/8"-24, GC

1шт.

20

J912220

GASKET,0.4mm Thk

Steel

1шт.

21

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

22

892-11010

LOCK WASHER,M10

4шт.

23

1347886C1

SUPPORT

Models Without Emissions Certified Engine

1шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used

1-2шт.

25

231-5146

FLANGE NUT,3/8"-16

If used

1-2шт.

27

NSS

NOT SOLD SEPARAT

BRACKET; Muffler; Models With Emissions Certified Engine

1шт.
