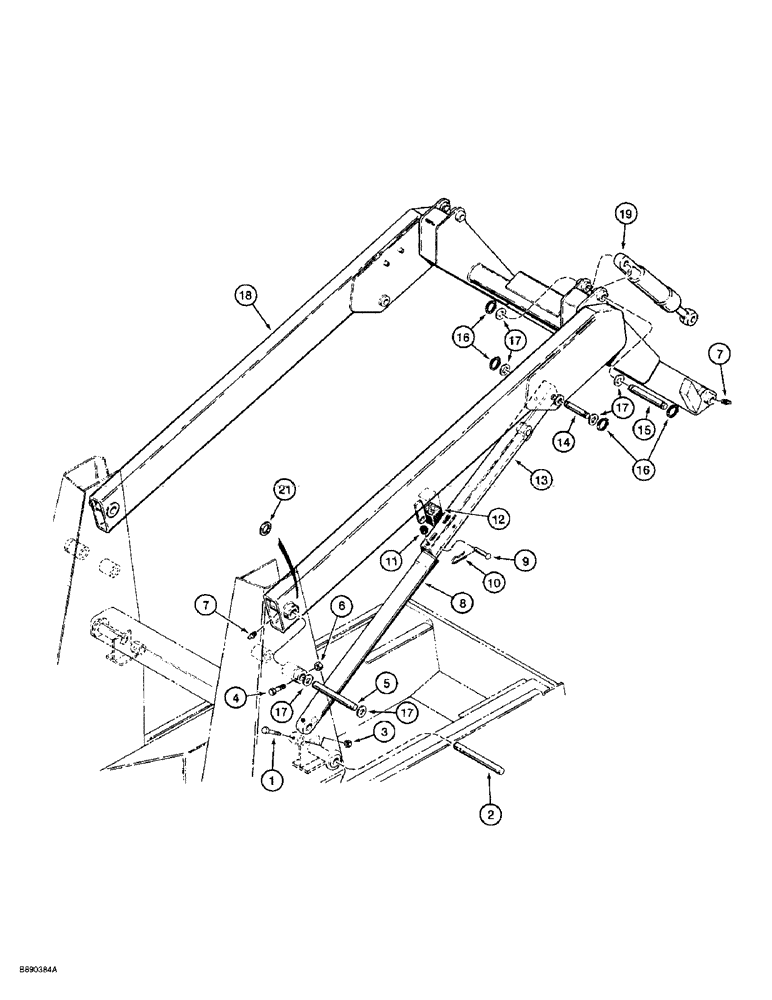

Запчасти Case IH 1838 (9-04) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

1

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

2

D134003

PIN,25.4mm OD x 164mm L

lift, Serial Range: cylinder-chassis

2шт.

3

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

4

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

hex, 3/8 NC x 2-1/2 inch, grade 8

2шт.

5

D124397

PIN,31.75mm OD x 235mm L

loader lift, Serial Range: frame-chassis

2шт.

6

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

7

219-86

LUBE NIPPLE,1/8" NPTF

FITTING grease, straight, self tap 1/8 PT x 5/8 inch

4шт.

8

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

ASSEMBLY, 64 mm 2-1/2 inch ID x 679 mm, 26-3/4 inch stroke, parts list Figure 8-26

2шт.

9

D79998

PIN

strut lock

1шт.

10

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

11

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

rubber, 5/8 inch groove diameter, Replaces: 49566

1шт.

12

D79692

PAD

lift arm, 51 x 51 x 19 mm

1шт.

13

D124937

STRUT

lift frame support

1шт.

14

D137151

PIN,25.4mm OD x 122.6mm L

pivot, strut to loader lift frame, 1 x 4-13/16 inch long

2шт.

15

D137594

PIN,25.4mm OD x 134.5mm L

bucket tilt cylinder to loader lift frame

2шт.

16

100-1698

SNAP RING,#98, Ext

Ring, Snap, , Pin (Replaces H753244) #98, Ext

8шт.

17

495-81187

WASHER,1 1/16" x 1 5/8" x .065"

flat, 1-1/16 x 1-5/8 x 1/16 inch

8шт.

18

229570A1

ARM

KIT loader arm, service, Replaces: 185327A1, Includes: decals : Ref. 6 and 8 on Figure 9-32, Ref. 14A on Figure 9-34

1шт.

19

118110A1

CYLINDER,Double Acting, 31.8mm Rod, 402.6mm Stroke

ASSEMBLY, 65 mm, 2-1/2 inch ID x 403 mm, 15-7/8 inch stroke, parts list Figure 8-28

2шт.

19

118110A1R

REMAN-HYD CYLINDER

1838 CASE UNI LOADER SKID STEER LOADER, ASSEMBLY

2шт.

19

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

20

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching pad to metal surfaces, not shown

1шт.
