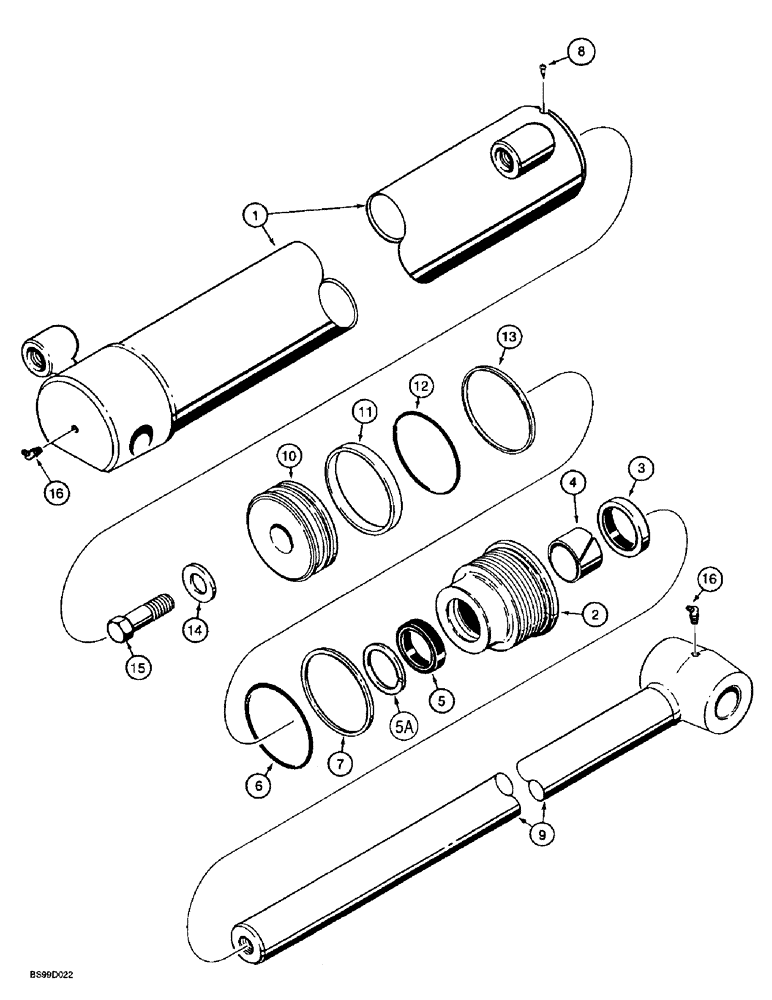

Запчасти Case IH 1838 (8-56) - BACKHOE DIPPER CYLINDER, USED WITH D100XR BACKHOE (08) - HYDRAULICS

G109376

CYLINDER BLOCK

CYLINDER ASSEMBLY, backhoe dipper, 76 mm, 3 inch ID x 605 mm, 23-13/16 inch stroke, Includes Ref. 1, 8, 9, 14, 15, 16 and Gland Assembly and Piston Assembly

1шт.

1

G109377

TUBE,76.2 mm DIA x 759 mm L

cylinder

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes Ref. 2-4, 6-7, P/N 152874C1

1шт.

2

1542962C1

GLAND

cylinder

1шт.

3

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of seal kit 1543313C1

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of seal kit 1543313C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Incl Ref 5-5A

1шт.

Part of seal kit 1543313C1

1шт.

5

1542997C1

SEALING RING

rod, NSS

1шт.

5a

1542996C1

SEAL

buffer, NSS

1шт.

6

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of seal kit 1543313C1

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit 1543313C1

1шт.

8

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

9

G34179

ROD

piston, 38 mm, 1-1/2 inch diameter

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY, cylinder, Includes Ref. 10-13

1шт.

10

G33747

PISTON

cylinder

1шт.

11

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear

1шт.

Part of seal kit 1543313C1

1шт.

12

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit 1543313C1

1шт.

13

G32034

RING

backup, piston O-ring

1шт.

Part of seal kit 1543313C1

1шт.

14

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special, hardened

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 45 degree, 1/8 PT x 7/8 inch

2шт.

1543313C1

SEAL KIT

KIT seal, Includes: Ref. 3, 4, 6, 7, 11, 12, 13, and P/N 1542874C1

1шт.
