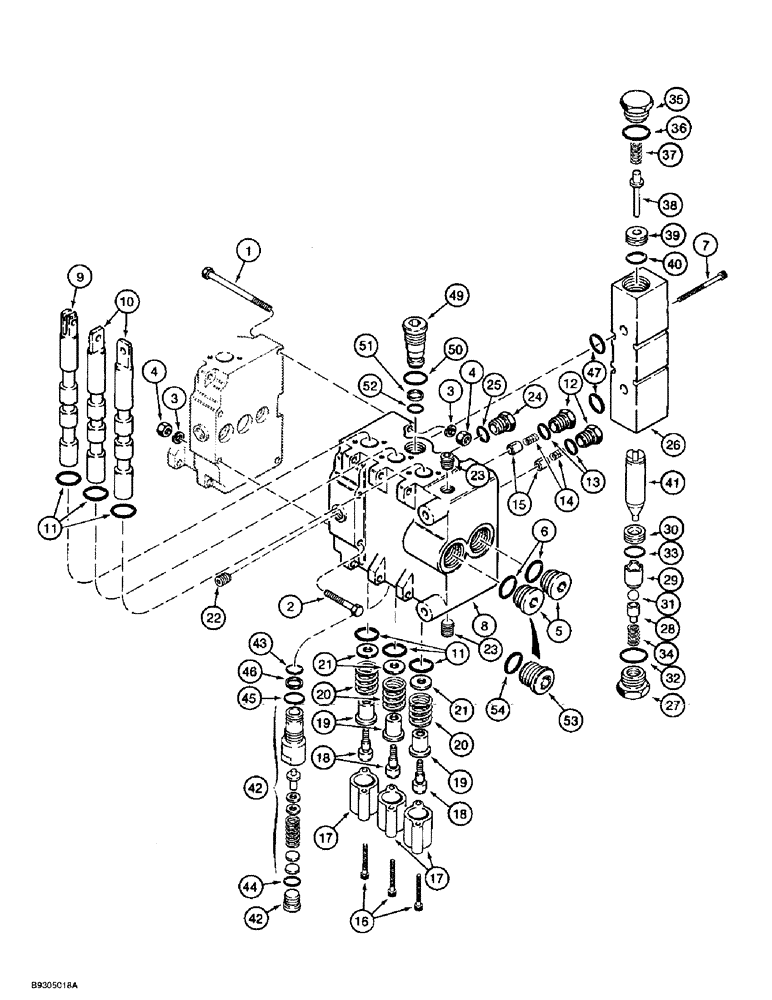

Запчасти Case IH 1838 (8-50) - BACKHOE CONTROL VALVE - DUKES, OUTLET SECTION, D100 OR D100XR BACKHOE (08) - HYDRAULICS

H674300

VALVE

ASSEMBLY, control, backhoe, parts list Figures 8-44 through 8-50, Includes Ref. 1, 2, 3, 4, 5, 7, 47, 48, 53 and P/N H674528, 100405A2, H674533, H438954

1шт.

1

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

hex, 1/4 NF x 3 inch

2шт.

2

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

3

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

4

425-114

NUT,1/4"-28, G5

4шт.

5

86625138

PLUG,7/18" - 14

Includes Ref. 6 Hex Soc, 7/8"-14 ORB

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

BOLT hex socket, No. 10 NF x 2-1/2 inch

4шт.

H674528

HYD VALVE SECTION

SECTION ASSEMBLY, outlet, Includes Ref. 8-11, 22-24, and P/N H438024, H438021

1шт.

8

NSS

NOT SOLD SEPARAT

BODY outlet section

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL stabilizer

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL dual control

2шт.

11

H438030

O-RING

spool

6шт.

H438024

SET

KIT load check, Includes Ref. 12, 14, 15

2шт.

12

H438231

PLUG

load check, Includes Ref. 13

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

H438021

SET

KIT spring centering, Includes Ref. 16-21

3шт.

16

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT hex socket, No. 10 NF x 1-1/2 inch

2шт.

17

NSS

NOT SOLD SEPARAT

CAP end

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT shoulder, special

1шт.

19

NSS

NOT SOLD SEPARAT

SPACER spring

1шт.

20

N9539

TENSION SPRING

SPRING centering

1шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

22

H438960

PLUG

seal

1шт.

23

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

hex socket headless, 1/4 inch PT

2шт.

24

H438231

PLUG

load check, Includes Ref. 25

1шт.

100405A2

BLOCK ASSY.

VALVE ASSEMBLY, pilot check, Includes Ref. 26-41

1шт.

26

NSS

NOT SOLD SEPARAT

BODY pilot check

1шт.

27

H438031

PLUG

pilot check

1шт.

28

H438032

SLEEVE VALVE

SLEEVE pilot check

1шт.

29

H438033

CUP

RETAINER check ball

1шт.

30

113746A1

SEAT

pilot check

1шт.

31

113748A1

BALL

pilot check

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

102712A1

SPRING

pilot check

1шт.

35

113751A1

PLUG

pilot check

1шт.

Part of plunger kit 111935A1

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of plunger kit 111935A1

1шт.

37

113747A1

SPRING

poppet

1шт.

Part of plunger kit 111935A1

1шт.

38

H438334

VALVE

POPPET cartridge

1шт.

Part of plunger kit 111935A1

1шт.

39

113750A1

SEAT

poppet

1шт.

Part of plunger kit 111935A1

1шт.

40

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Seat -016, 90 Duro, .614" ID x .070" Thk

1шт.

Part of plunger kit 111935A1

1шт.

41

113749A1

PLUNGER

pilot check

1шт.

Part of plunger kit 111935A1

1шт.

H674533

VALVE

ASSEMBLY, circuit relief, Includes Ref. 42 and P/N H674536

1шт.

42

NSS

NOT SOLD SEPARAT

VALVE relief

1шт.

H674536

O-RING

KIT seal, circuit relief valve, Includes Ref. 43-46

1шт.

43

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

46

NSS

NOT SOLD SEPARAT

RING backup

1шт.

47

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Check assembly -113, 90 Duro, .549" ID x .103" Thk

2шт.

48

H438039

LARGE PLATE

PLATE orifice, round, bottom port of stabilizer section, not shown

1шт.

H438954

PLUG

ASSEMBLY, body, Includes Ref. 49-52

1шт.

49

NSS

NOT SOLD SEPARAT

PLUG body

1шт.

50

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

51

H438339

GASKET

RING backup, O-ring

1шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

53

H438953

PLUG

hex socket, special, optional outlet port, if used, 3/4 inch NF, Includes Ref. 54

1шт.

54

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

111935A1

SET OF PARTS

KIT plunger, Includes: Ref. 35-41

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

44

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
