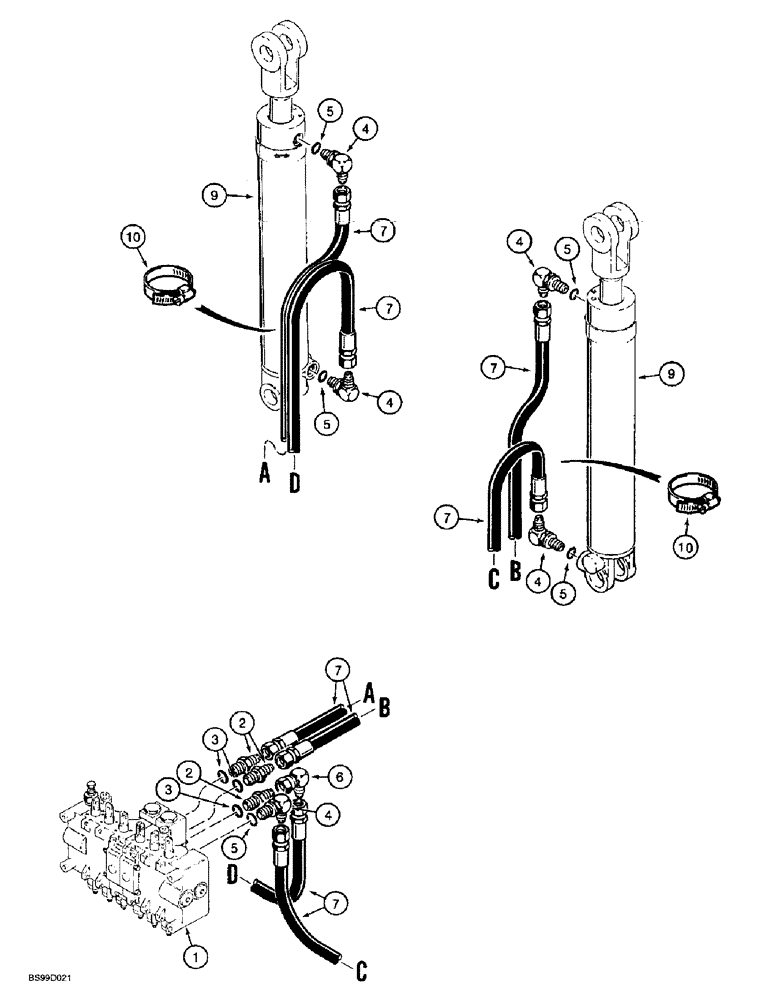

Запчасти Case IH 1838 (8-40) - STABILIZER CYLINDER HYDRAULIC CIRCUIT, D100 OR D100XR (08) - HYDRAULICS

1

H674300

VALVE

ASSEMBLY, control, backhoe, manufactured by Dukes, parts list Figures 8-44 through 8-50

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes Ref. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

90 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Incl. Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

90 degree, 9/16-18 inch flare x swivel

1шт.

7

139517C1

HYDRAULIC HOSE

HOSE to stabilizer cylinder, 2032 mm, 80 inch long

4шт.

9

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY, stabilizer, 76 mm, 3 inch ID x 406 mm, 16 inch stroke, parts list Figure 8-58

2шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP adj., 3-1/16 - 4 inch dia.

2шт.
