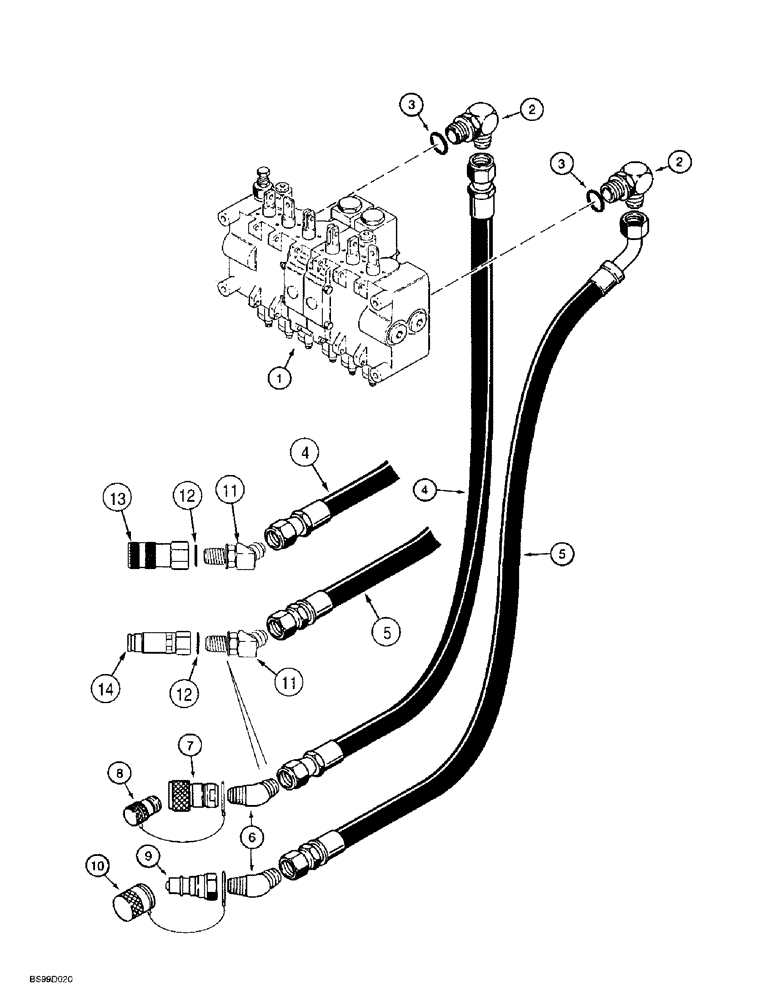

Запчасти Case IH 1838 (8-32) - BACKHOE SUPPLY AND RETURN HYDRAULIC CIRCUIT, D100 OR D100XR BACKHOE (08) - HYDRAULICS

1

H674300

VALVE

ASSEMBLY, control, backhoe, manufactured by Dukes, parts list Figures 8-44 through 8-50

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

L46723

HOSE

supply, 1067 mm, 42 inch long

1шт.

5

D137255

HOSE ASSY.

HOSE return, 1150 mm, 45-1/4 inch long

1шт.

6

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

45 degree, 7/8-14 flare x 1/2 inch PT, if used

2шт.

7

H436396

COUPLING

COUPLER self sealing, female, if used

1шт.

8

T40274

CAP

PLUG dust, female quick disconnect, if used

1шт.

9

1272770C2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, if used

1шт.

10

T40759

PLUG

dust, male quick disconnect, if used

1шт.

11

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, 7/8-14 inch flare x adj. O-ring boss, if used, Incl. Ref 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, If used

1шт.

13

143431A1

COUPLING, QUICK, FEM

COUPLING quick disconnect, female, if used

1шт.

14

238243A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, if used

1шт.
