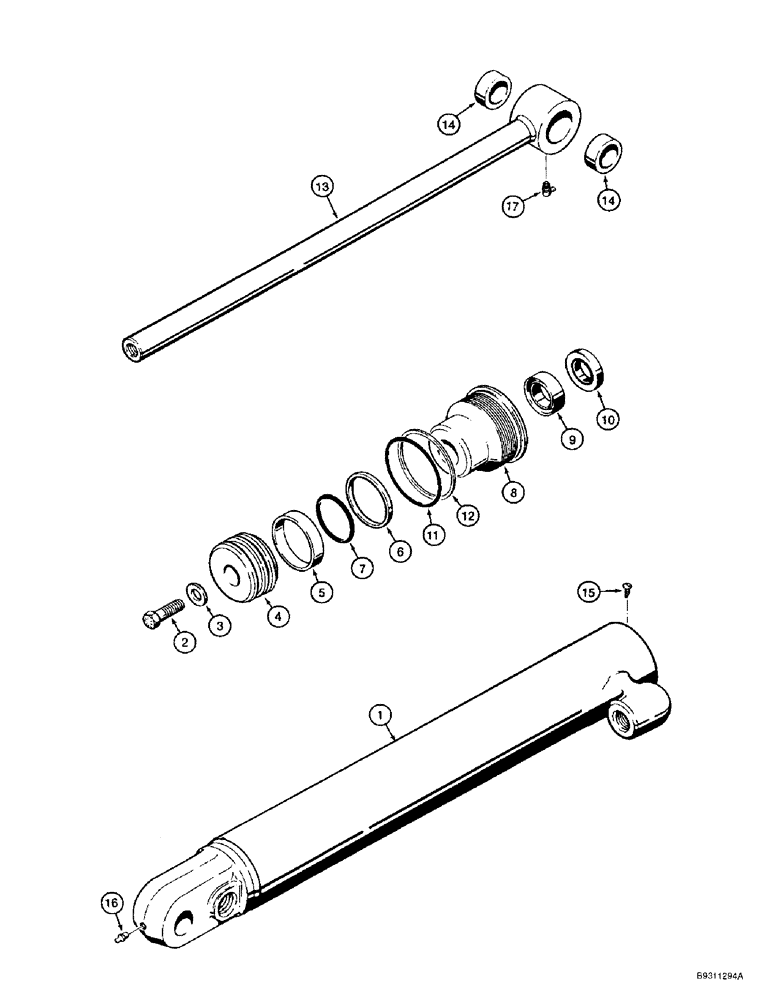

Запчасти Case IH 1838 (8-28) - LOADER BUCKET TILT CYLINDER (08) - HYDRAULICS

118110A1

CYLINDER,Double Acting, 31.8mm Rod, 402.6mm Stroke

ASSEMBLY, bucket tilt, 65 mm, 2-1/2 ID x 403 mm 15-7/8 inch stroke, see Figure 9-5 for mounting hardware, Includes Ref. 1, 2, 3, 13, 15, 16, 17 and Piston Assembly and Gland Assembly

2шт.

118110A1R

REMAN-HYD CYLINDER

1838 CASE UNI LOADER SKID STEER LOADER, Piston Assembly and Gland Assembly

2шт.

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

118111A1

TUBE,63.42 mm ID, 575.6 mm Length

cylinder

1шт.

2

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

3

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, hardened, special

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY, cylinder, Includes Ref. 4-7

1шт.

4

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

cylinder, single groove

1шт.

5

G100714

RING

wear

1шт.

Part of seal kit 128728A1

1шт.

6

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL piston

1шт.

Part of seal kit 128728A1

1шт.

7

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Piston -226, 70 Duro, 1.984" ID x .139" Thk

1шт.

Part of seal kit 128728A1

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder, Includes Ref. 8-12

1шт.

8

118115A2

GLAND

cylinder, Replaces: 118115A1 gland

1шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit 128728A1

1шт.

10

D95141

WIPER SEAL

WIPER piston rod, outer

1шт.

Part of seal kit 128728A1

1шт.

11

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Gland -228, 70 Duro, 2.234" ID x .139" Thk

1шт.

Part of seal kit 128728A1

1шт.

12

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of seal kit 128728A1

1шт.

13

242315A1

PISTON ROD

ROD ASSEMBLY, piston, 32 mm, 1-1/4 inch diameter, Replaces: G103408 and 175661A1 piston assembly, Includes Ref. 2

1шт.

14

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

rod

2шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

17

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

128728A1

SEAL KIT

KIT seal, Includes: Ref. 5, 6, 7, 9, 10, 11, and 12, Includes an instruction sheet and 238-5230 O-ring and G32129 backup ring not used in this cylinder

1шт.
