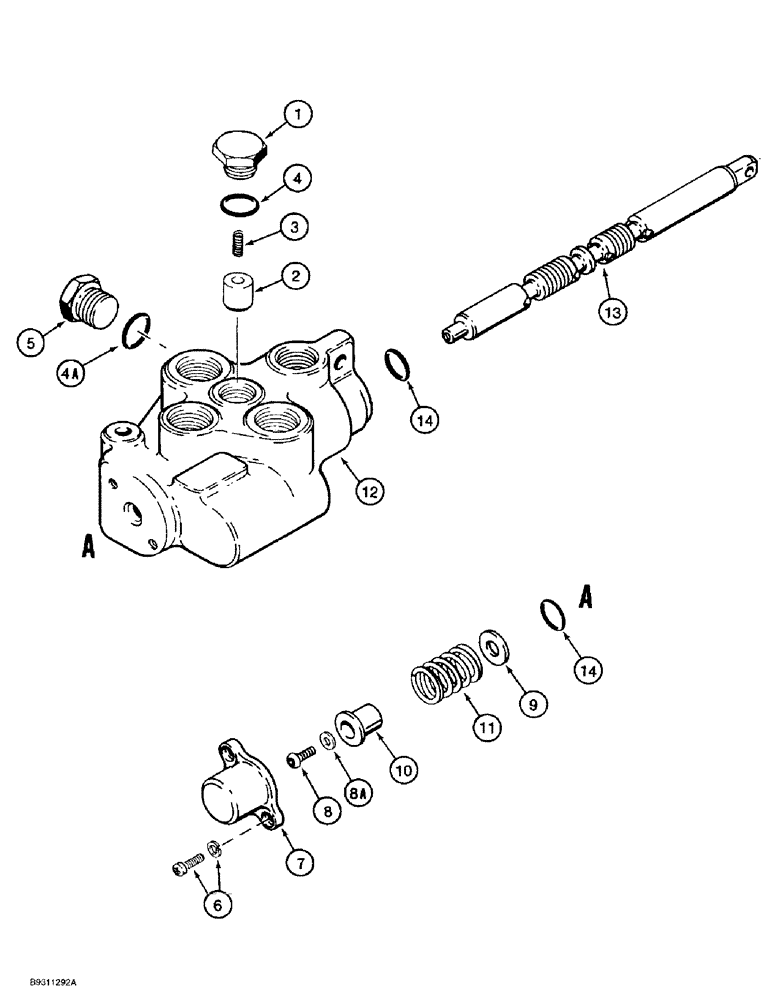

Запчасти Case IH 1838 (8-24) - AUXILIARY CONTROL VALVE (08) - HYDRAULICS

H674465

VALVE

CYLINDER ASSEMBLY, loader lift, 64 mm, 2-1/2 ID x 679 mm, 26-3/4 inch stroke, see Figure 9-4 for mounting hardware, Includes P/N H673572 and H674816 and Ref. 4A, 5, 12-14

1шт.

H673572

KIT

load check, Includes Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

2

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING load check

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Load check plug

1шт.

4a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Power beyond plug

1шт.

5

132547A1

PLUG

hex, power beyond

1шт.

H674816

KIT

centering spring, Includes instruction sheet, Includes Ref. 6-11

1шт.

6

221655A1

CAPTIVE WASHER SCREW,Phillips Drive, Round HD, #12 - 24 x 1/2"

SCREW end cap, Includes lock washer

2шт.

7

N9528

CAP

bucket spool end

1шт.

8

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

BOLT hex socket, No. 10 NF x 1/2 inch

1шт.

8a

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

10

N9529

SEAT

spring, spool

1шт.

11

N9539

TENSION SPRING

SPRING centering, spool

1шт.

12

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

14

H438030

O-RING

5/8 ID x 13/16 inch

2шт.
