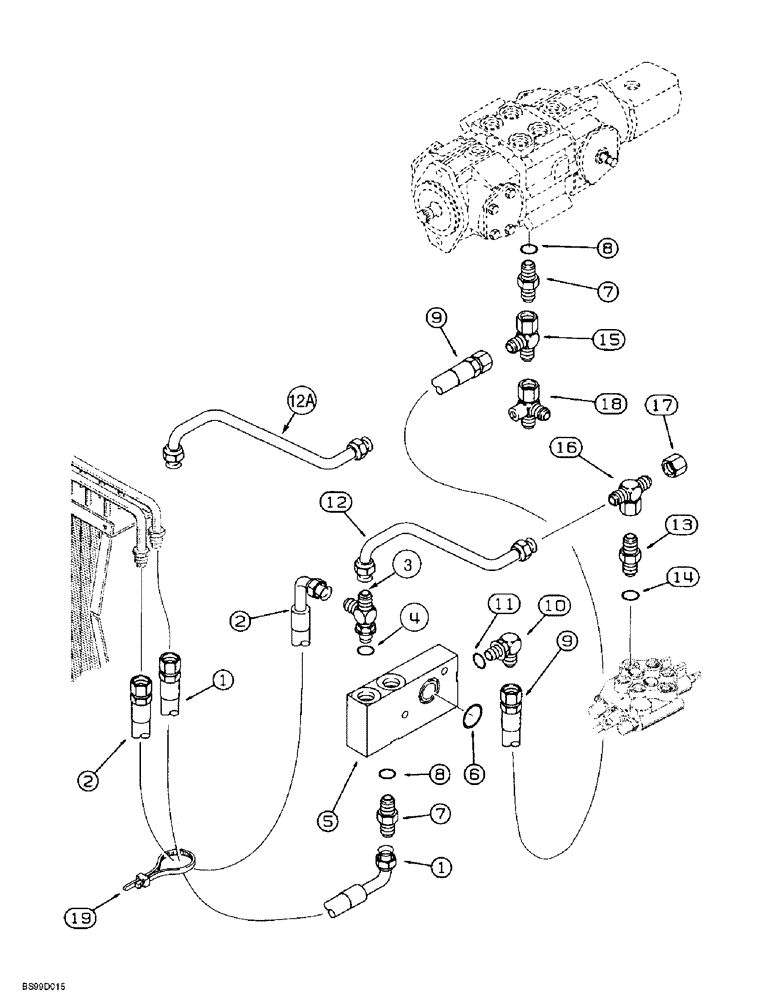

Запчасти Case IH 1838 (8-14) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, RETURN LINES TO CHECK VALVE MANIFOLD & OIL COOLER (08) - HYDRAULICS

1

D135863

HOSE,19.05mm ID x 750mm L, SAE 100R3

from oil cooler, 750 mm, 29-1/2 inch long

1шт.

2

D137610

HOSE ASSY.,19.05mm ID x 890mm L, SAE 100R3

HOSE to oil cooler, 890 mm, 35 inch long

1шт.

3

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16-12 inch flare branch x flare x adj. O-ring boss, Includes Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

124460A1

TUBE ASSY.

MANIFOLD ASSEMBLY, check valve, components not serviced separately

1шт.

6

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

at check valve -219, 70 Duro, 1.296" ID x .139" Thk

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 8

2шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

132996A1

HOSE

manifold check valve to drain, 1100 mm, 43-5/16 inch long

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj. O-ring boss, Incl. Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

113806A1

TUBE,19.05 mm OD, 369, 148 mm Length

loader control valve to manifold check valve, if used

1шт.

12a

292229A1

TUBE,369, 136 mm Length

loader control valve to manifold check valve, if used

1шт.

13

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

at tandem pump, 1-1/16-12 flare branch x swivel x 3/4-16 inch flare

1шт.

16

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

at loader control valve, 1-1/16-12 inch swivel branch x flare x flare

1шт.

17

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch

1шт.

18

H435873

TEE

MANIFOLD adapter

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.
