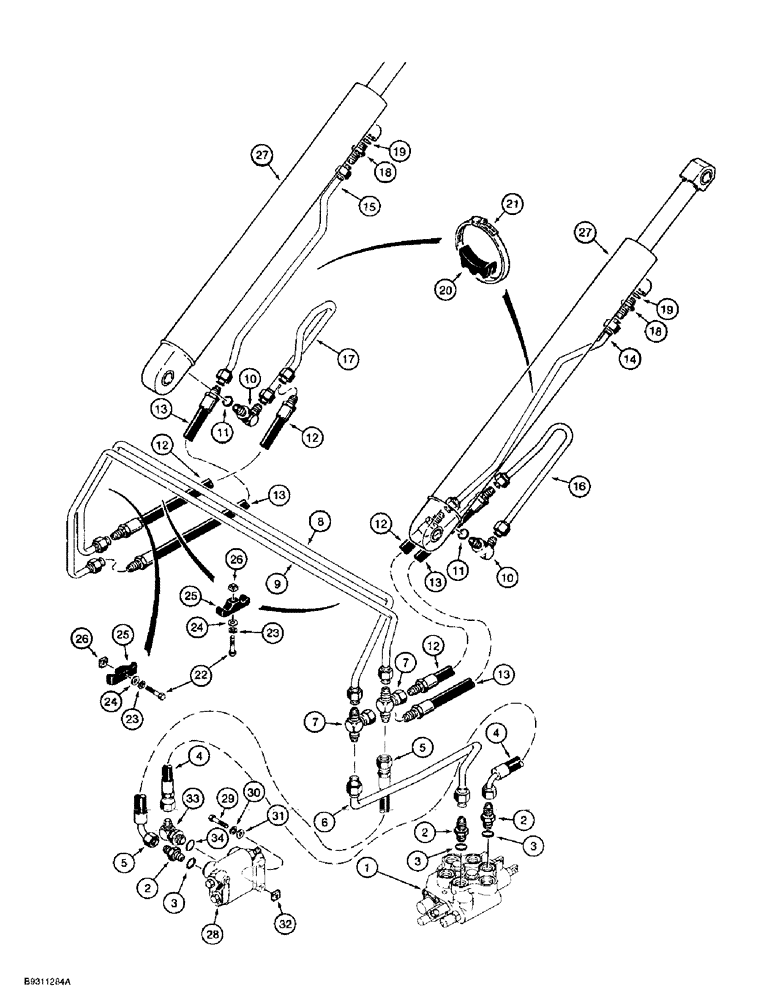

Запчасти Case IH 1838 (8-04) - LOADER LIFT HYDRAULIC CIRCUIT USED ON MODELS W/ SELF-LEVELING (08) - HYDRAULICS

1

108222A1

VALVE

ASSEMBLY, loader control, parts list Figure 8-10

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H437670

HOSE

loader control valve to self leveling valve, 600 mm, 23-5/8 inch long

1шт.

5

H437669

HOSE

self leveling valve to crossover tube, 780 mm, 30-11/16 inch long

1шт.

6

292682A1

TUBE,346, 232 mm Length

loader control valve to crossover tube, Replaces: H673924 tube

1шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4-16 inch swivel branch x flare x flare

2шт.

8

H673695

TUBE,12.7 mm OD

crossover, to closed end of lift cylinders

1шт.

9

H673696

TUBE,0.5" OD

crossover, to rod end of lift cylinders

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj O-ring boss, Includes Ref. 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

H436410

HYDRAULIC HOSE,9.53mm ID x 400mm L

- To closed end of LH lift cylinder and rod end of RH lift cylinder 9.52 mm ID x 400.00 mm

2шт.

13

H436409

HYDRAULIC HOSE,9.53mm ID x 475mm L

- To rod end of LH lift cylinder and to closed end of RH lift cylinder 9.52 mm ID x 475.00 mm

2шт.

14

D125480

TUBE ASSY.

TUBE to rod end of right hand lift cylinder

1шт.

15

H673439

TUBE ASSY.,0.5" OD

TUBE to rod end of left hand lift cylinder

1шт.

16

D125488

TUBE ASSY.

TUBE to closed end of right hand lift cylinder

1шт.

17

H673438

TUBE ASSY.,0.5" OD

TUBE to closed end of left hand lift cylinder

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

R24703

SUPPORT

rubber, tubes to lift cylinder

2шт.

21

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP adj., tube support, 3-1/16 - 4 inch dia.

2шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

3шт.

23

492-11038

LOCK WASHER,3/8"

3шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

25

D120679

CLAMP,Tube, 1/2"

plastic, tube

3шт.

26

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

3шт.

27

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

ASSEMBLY, loader lift, 64 mm, 2-1/2 ID x 679 mm, 26-3/4 inch stroke, parts list Figure 8-26

2шт.

28

H673705

VALVE

ASSEMBLY, self leveling, parts list Figure 8-12

1шт.

29

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

32

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

2шт.

33

H439269

ELBOW

90 degree, special, Includes Ref. 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
