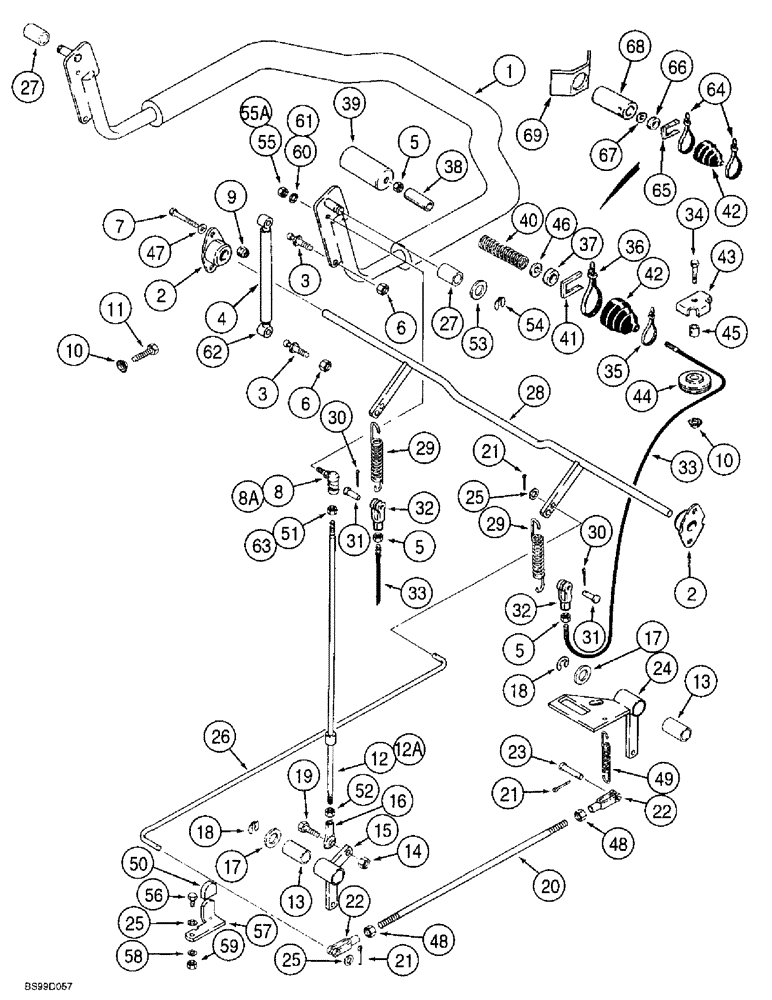

Запчасти Case IH 1838 (7-02) - PARKING LATCH AND SEAT BAR (07) - BRAKES

1

128561A2

BAR ASSY.

BAR restraint, used on models with brown trim

1шт.

1

179833A1

BAR ASSY.

BAR seat, used on models with grey trim

1шт.

2

R29593

FLANGED BEARING,1.125" OD x 0.562"

BEARING flange

2шт.

3

F44882

BALL

STUD ball

2шт.

4

128461A2

GAS STRUT

CYLINDER seat bar

1шт.

5

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

8

H169920

BALL JOINT

JOINT ball, 1/4 inch NF, used with 140424A1 only

1шт.

8a

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT ball, female, 5/16 inch NF, used with 140424A2 only

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

12

140424A1

THREADED ROD

ROD seat bar to control pivot, no longer available, for service order 140424A2 and H289652

1шт.

12a

140424A2

ROD

seat bar to control pivot

1шт.

13

119616A1

BUSHING

bronze

2шт.

14

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

15

132431A1

PITMAN

BELLCRANK cross shaft

1шт.

16

D59922

BALL JOINT

JOINT ball, 3/8 inch NF

1шт.

17

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened, spacer

4шт.

18

D95097

RING, SNAP

RING retaining

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

1шт.

20

132444A1

STEM

ROD control pivot to lock plate

1шт.

21

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), (Replaces 432-68 pin) 3/32" x 5/8"

3шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

2шт.

23

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

CYLINDER ASSEMBLY, loader lift, 64 mm, 2-1/2 ID x 679 mm, 26-3/4 inch stroke, parts list Figure 8-26

1шт.

24

132437A1

PITMAN

PLATE lock

1шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

26

136217A1

ROD

brake actuating

1шт.

27

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

pivot

2шт.

28

132440A1

LEVER

SHAFT parking brake

1шт.

29

D127347

SPRING

cable connecting, at shaft

2шт.

30

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin, special

2шт.

31

D23693

AXLE PIN

PIN clevis, special, 1/4 x 1 inch long

2шт.

32

H169300

CLEVIS

adjustable, 1/4 inch NC

2шт.

33

H438180

CABLE

at pulleys, lower

2шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

37

D70742

SPACER

SLEEVE spring

2шт.

38

H435266

SPACER

tubular

2шт.

39

D64228

PIN,25.45mm OD x 53.34mm L

2шт.

40

D91040

SPRING

2шт.

41

H438614

CLIP

retaining

2шт.

42

D70018

BOOT

rubber, seal

2шт.

43

D124466

RETAINER

cable pulley

2шт.

44

D124465

PULLEY,54mm OD

cable

2шт.

45

D95559

SPACER

2шт.

46

495-81108

WASHER,.281" x 1" x .109"

flat, 9/32 x 1 x 1/8 inch

2шт.

47

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

48

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

2шт.

49

D124939

SPRING

lock, control lever

1шт.

50

140377A1

HANDLE

GRIP vinyl

1шт.

51

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF, used with 140424A1 only

1шт.

52

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8 inch NF

1шт.

53

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

flat, 17/32 x 1 x 1/16 inch, Replaces: 495-11053

2шт.

54

D143415

SNAP RING,0.50” ID, Klipring

RING retaining

2шт.

55

425-114

NUT,1/4"-28, G5

Used with140424A1 only 1/4"-28, G5

1шт.

55a

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF, Used with 140424A2 only

1шт.

56

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, Replaces 413-512

1шт.

57

140013A1

LATCH

seat bar

1шт.

58

140381A1

WASHER

special

1шт.

59

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

60

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 140424A1 only 1/4"

1шт.

61

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Used with 140424A2 only 5/16"

1шт.

62

243699A1

CONNECTOR, ELEC

CONNECTOR cylinder end

2шт.

63

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF, Used with 140424A2 only

1шт.

109017A1

SET

KIT service, parking brake tube, Includes instruction sheet, Includes Ref. 64-69

2шт.

64

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

2шт.

65

H438614

CLIP

retaining

1шт.

66

D70742

SPACER

SLEEVE spring

1шт.

67

495-81108

WASHER,.281" x 1" x .109"

flat, 9/32 x 1 x 1/8 inch

1шт.

68

108918A1

TUBE,25.91 mm ID, 44.4 mm OD

brake

1шт.

69

D136906

BRACKET

support

1шт.
