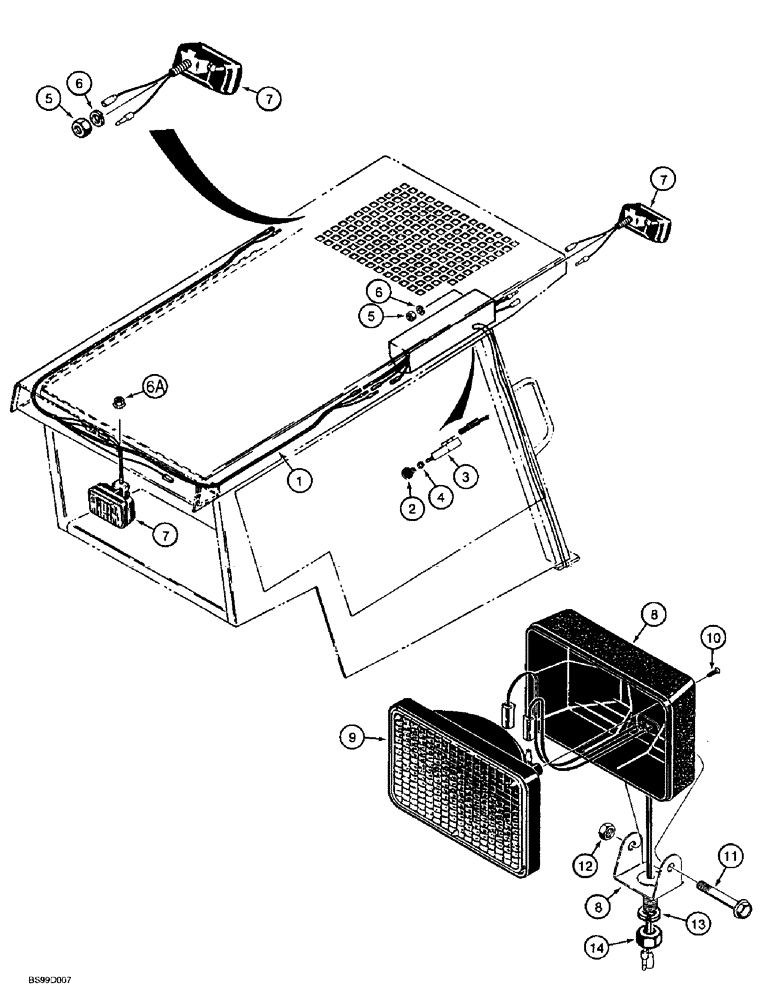

Запчасти Case IH 1838 (4-12) - WORK LAMPS AND WIRING, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

1

D139709

HARNESS

horn and lamp

1шт.

2

108314A1

BUTTON

KNOB lamp switch

1шт.

3

D74330

SWITCH

ASSEMBLY, lamp, Includes Ref. 4

1шт.

4

225-14210

NUT,#10-32

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6a

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

7

D126237

HEADLIGHT

LAMP ASSEMBLY, 12 volt, Includes Ref. 1-14

3шт.

8

NSS

NOT SOLD SEPARAT

BODY lamp, Includes mounting bracket

1шт.

9

N13125

LAMP

BULB sealed beam

1шт.

10

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW self tapping, flat head slotted, No. 8-18 x 1/2 inch

2шт.

11

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

12

230-4215

NUT,5/16"-18, GA

NUT hex, self locking, 5/16 inch NC

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
