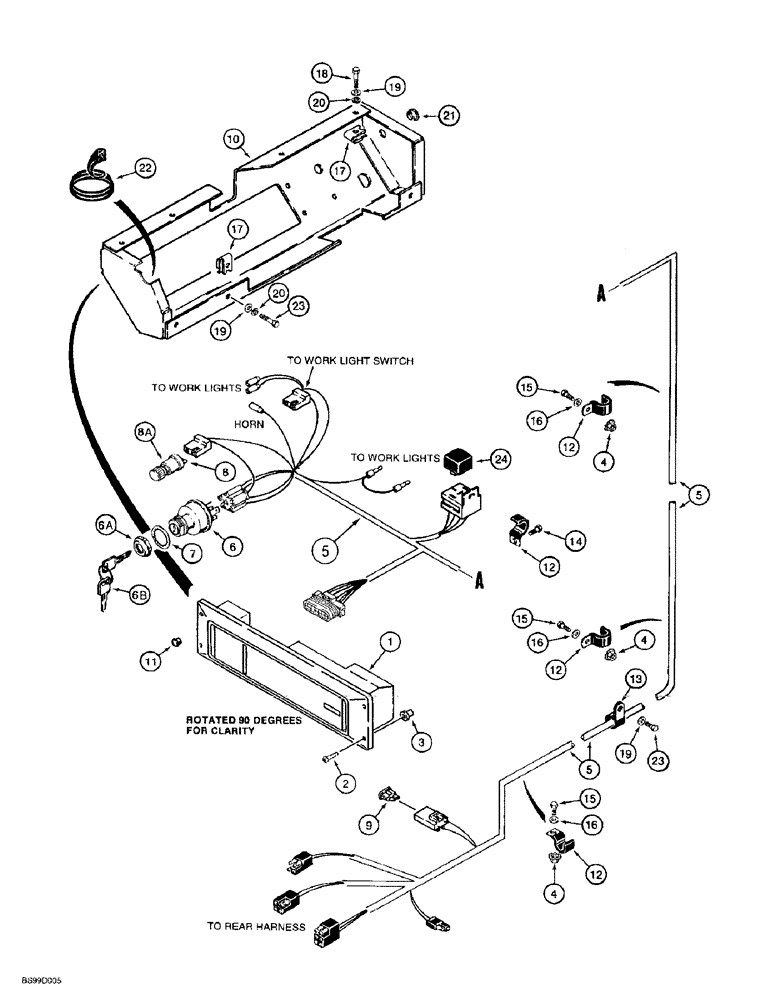

Запчасти Case IH 1838 (4-08) - INSTRUMENT HARNESS AND CLUSTER (04) - ELECTRICAL SYSTEMS

1

H438451

CLUSTER, INSTR.

CLUSTER instrument, 10 pin connector

1шт.

367530A1R

REMAN-INSTR CLUSTER

1838, Reman For New P/N H438451

1шт.

367530A1C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

machine, pan Phillips, No. 10 NF x 1 inch

4шт.

3

D122634

ISOLATOR,12.7mm OD x 14.1mm L

RETAINER screw

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

5

129001A2

HARNESS

instrument

1шт.

6

307871A1

CONNECTION,ELECTRIC

SWITCH ASSEMBLY, ignition, Includes 2 keys, Replaces: D134737 switch assembly, Includes Ref. 6A,6B

1шт.

6a

A77314

NUT

hex, special

1шт.

6b

307852A1

SET OF 2 KEYS

Metal Without Padding

1шт.

7

493-21104

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1 inch

1шт.

D90961

SWITCH

ASSEMBLY, cold start, not serviced as an assembly, order individual components for service, Includes Ref. 8, 8A

1шт.

8

L59682

TERMINAL CONNECTOR

TERMINAL blade, straight

2шт.

8a

L72776

SWITCH

push button

1шт.

9

A149802

FUSE

yellow, 20 ampere

1шт.

10

H674342

PANEL, INSTRUMENTS

PANEL instrument

1шт.

11

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

12

H437729

CLIP

CLAMP wire harness

4шт.

13

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type 3/4", Insul, 5/16" Bolt

1шт.

14

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

3шт.

16

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

17

131-610

SPRING NUT,U, Ret, 1/4"-20

3шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch

1шт.

22

D52412

RUBBER STRIP

TRIM edge, cut from F42827 bulk trim, see below, 1270 mm, 50 inch long

1шт.

23

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

2шт.

24

D128310

RELAY

30 ampere

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm, 116 inch long

1шт.
