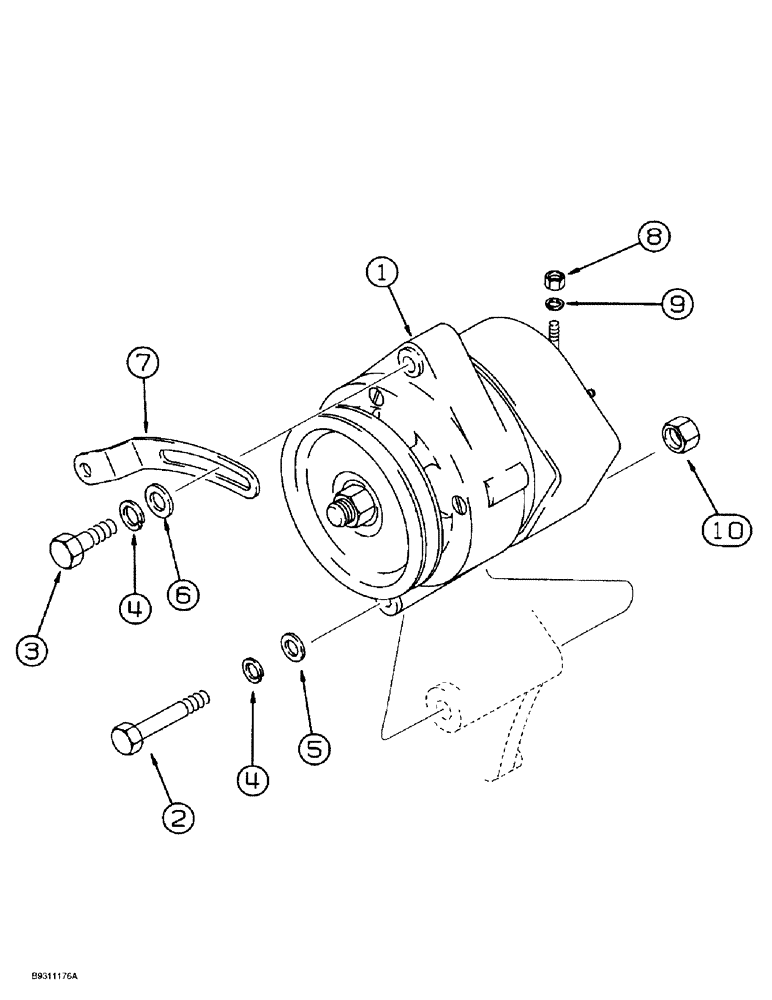

Запчасти Case IH 1838 (4-06) - ALTERNATOR MOUNTING, KUBOTA V2203 ENGINE (04) - ELECTRICAL SYSTEMS

1

133745A1

ALTERNATOR

ALTERNATOR ASSEMBLY, engine, parts list Figure 4-2

1шт.

133745A1R

REMAN-ALTERNATOR

Remanufactured ALTERNATOR, 12 volt 40 ampere, N.A. Only

1шт.

133745A1C

CORE-ALTERNATOR

Return Number, N.A. Only

1шт.

2

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

BOLT, Hex, M8 x 100, 8.8

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT hex, full threads, 8 - 1.25 x 25 mm

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

WASHER flat, hardened, 11/32 x 11/16 x 1/16 inch

1шт.

6

496-41034

WASHER,.344" x 1" x .098", HDN

WASHER, .344" x 1" x .098", HDN

1шт.

7

202530A1

TENSIONER

BRACE alternator, Replaces: 133746A1 brace

1шт.

8

825-1406

NUT,M6, Cl 8

NUT, M6, Cl 8

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

NUT hex, 8 mm - 1.25, class 10

1шт.
