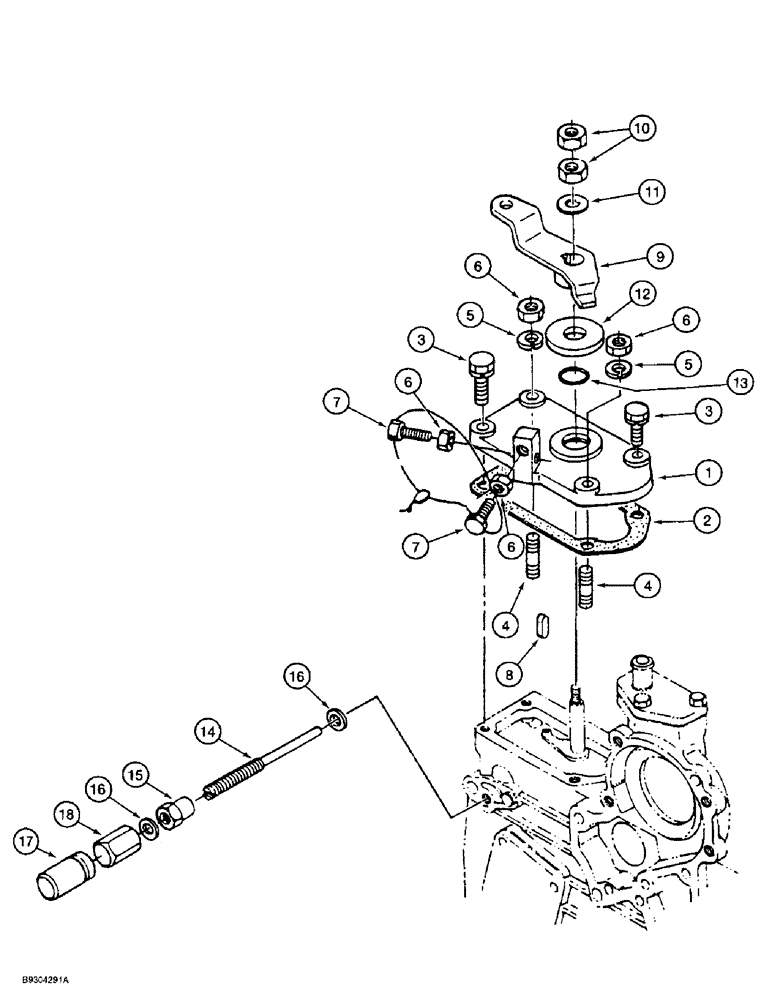

Запчасти Case IH 1838 (3-08) - SPEED CONTROL PLATE, KUBOTA V2203 ENGINE (03) - FUEL SYSTEM

1

221628A1

STOP LOCK

PLATE speed control

1шт.

2

127071A1

GASKET

speed control plate

1шт.

3

1959215C1

BOLT

hex, with lock washer, special

2шт.

4

1959204C1

STUD

mounting, speed control plate

2шт.

5

1959206C1

SPRING WASHER

lock, special

2шт.

6

1959205C1

NUT

hex, special

4шт.

7

127072A1

BOLT,Hex

hex, special

2шт.

8

127066A1

KEY

feather

1шт.

9

127065A1

LEVER

speed control

1шт.

10

127068A1

NUT

hex, special

2шт.

11

200472A1

WASHER

flat, special, Replaces: 1959497C1 washer

1шт.

12

202393A1

SPACER

COLLAR lever

1шт.

13

127067A1

O-RING

collar

1шт.

Part of Lower Gasket Kit, P/N 355815A1

1шт.

14

221627A1

BOLT

adjusting

1шт.

15

127064A1

NUT

special

1шт.

16

1959403C1

GASKET

special, 6 x 10 x 1 mm

2шт.

Part of Lower Gasket Kit, P/N 355815A1

1шт.

17

200544A1

PLUG

CAP adjusting nut

1шт.

18

1959404C1

NUT

cap

1шт.

355815A1

GASKET KIT

KIT lower gasket, Includes: Ref. 13 and 16 and Ref. shown on Figures 2-9, 2-23 and 2-11, Includes Ref. not used in this application

1шт.
