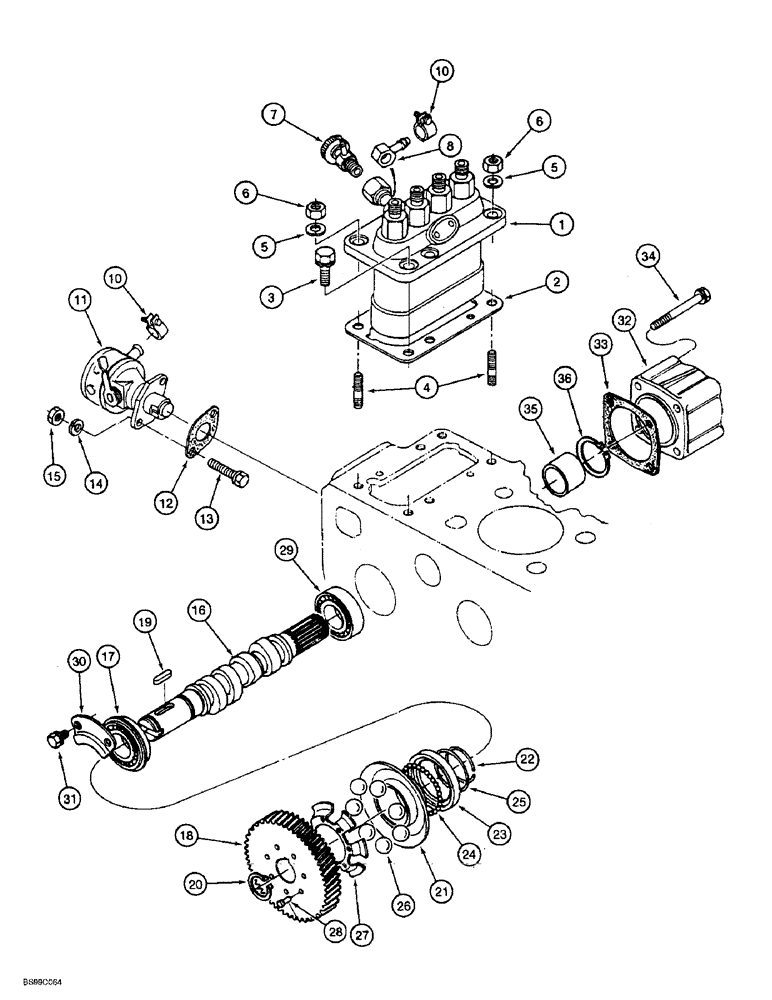

Запчасти Case IH 1838 (3-04) - INJECTION PUMP DRIVE, KUBOTA V2203 ENGINE (03) - FUEL SYSTEM

1

126964A1

PUMP

ASSEMBLY, fuel injection, parts list Figure 3-12

1шт.

2

202424A1

BLOCK

SHIM injection pump

2шт.

2

126965A1

SHIM

injection pump, 0.45 mm

1шт.

3

1959456C1

BOLT

hex, special

4шт.

4

1959457C1

STUD

pump mounting

2шт.

5

1959162C1

LOCK WASHER

lock, special

2шт.

6

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

7

1959487C1

HEATED GLASS

VALVE shutoff

1шт.

8

1959483C1

FITTING

CONNECTOR tube

1шт.

10

1959486C1

CLIP

CLAMP tube

2шт.

11

126967A1

PUMP

fuel transfer

1шт.

12

126969A1

GASKET

fuel transfer pump

1шт.

13

1959319C1

BOLT

hex, special

2шт.

14

221638A1

SPRING WASHER

spring

2шт.

15

1959205C1

NUT

hex, special

2шт.

221620A1

CAMSHAFT

ASSEMBLY, fuel pump drive, Includes Ref. 16-28

1шт.

16

126996A1

CAMSHAFT

fuel pump

1шт.

17

126998A1

BEARING, BALL

BEARING ball

1шт.

18

221644A1

PINION

GEAR injection pump

1шт.

19

127002A1

KEY

camshaft

1шт.

20

127003A1

RING

snap

1шт.

21

202454A1

SLEEVE

governor

1шт.

22

127033A1

RING

retaining, governor sleeve

1шт.

23

127034A1

CASE

HOUSING governor ball

1шт.

24

1959466C1

BALL

governor

39шт.

25

127035A1

OIL SEAL

RING retaining

1шт.

26

202458A1

BALL

governor

7шт.

27

127037A1

GUIDE

governor ball

1шт.

28

127038A1

RIVET

gear

7шт.

29

127055A1

BEARING, BALL

BEARING ball

1шт.

30

221622A1

STOP LOCK

STOP fuel camshaft

1шт.

31

126123A1

CAPTIVE WASHER SCREW

hex, with lock washer

2шт.

32

221623A1

COVER

fuel camshaft

1шт.

33

127059A1

GASKET

cover

1шт.

34

221624A1

BOLT

cover

4шт.

35

127060A1

COLLAR

camshaft

1шт.

36

127062A1

RING

snap

1шт.
