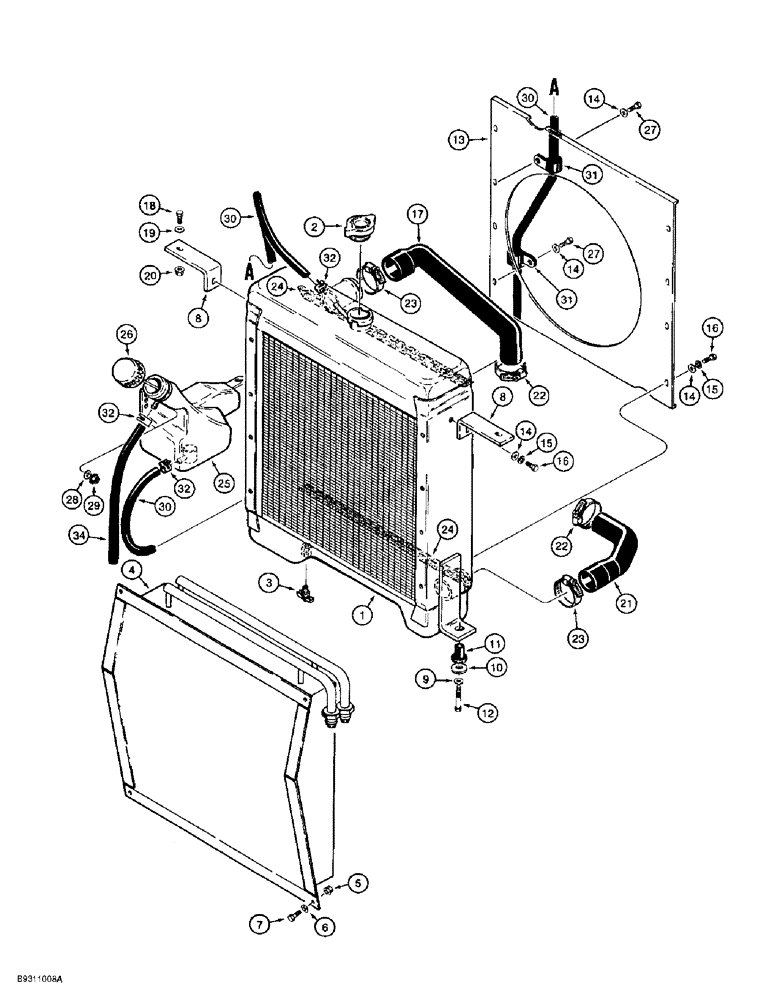

Запчасти Case IH 1838 (2-32) - RADIATOR, HOSES, AND OIL COOLER (02) - ENGINE

1

126522A1

RADIATOR

engine cooling

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, 15 psi

1шт.

3

217-92

COCK

VALVE drain, shut-off, 1/4 inch PT

1шт.

4

A184084

OIL COOLER

COOLER hydraulic oil

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex, serrated flange, 5/16 inch NC

4шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

8

H435039

BRACKET

BRACE radiator support

2шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

10

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, hardened

2шт.

11

D75755

ISOLATOR

INSULATOR rubber

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

13

127343A1

SHROUD

fan

1шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

8шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

16

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

8шт.

17

128994A1

HOSE,32.00 mm ID x 267.00 mm, SAE 20 R4 CLASS C

RADIATOR HOSE, , Upper 32.00 mm ID x 267.00 mm, SAE 20 R4 CLASS C

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

20

231-5146

FLANGE NUT,3/8"-16

2шт.

21

128999A1

HOSE,32.00 mm ID, 44.00 mm ID x 136.90 mm, SAE 20 R4 CLASS C

RADIATOR HOSE, 32.00 mm ID, 44.00 mm ID x 136.90 mm, SAE 20 R4 CLASS C

1шт.

22

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

23

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

2шт.

24

A173165

SEALING STRIP

adhesive backed, 485 mm, 19 inch long

2шт.

25

A171805

RESERVOIR

coolant recovery

1шт.

26

A184079

CAP

coolant recovery reservoir

1шт.

27

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, Full Thd, 8 - 1.25 x 30 mm

2шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

30

D94979

FUEL HOSE,7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

HOSE , Coolant recovery 7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

31

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, Coolant recover hose 9/16", Insul, 3/8" Bolt

2шт.

32

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable, Coolant hoses to radiator and reservoir, Replaces A171099 #4, 0.25/0.62 Type M Worm

2шт.

34

D128547

HOSE,7.9 mm ID x 300.00 mm, SAE 30R6

Coolant Overflow, See Below 7.9 mm ID x 300.00 mm, SAE 30R6

1шт.

S120317X

HOSE

bulk, 8 5/16 ID x 7620 mm, 300 inch long

1шт.
