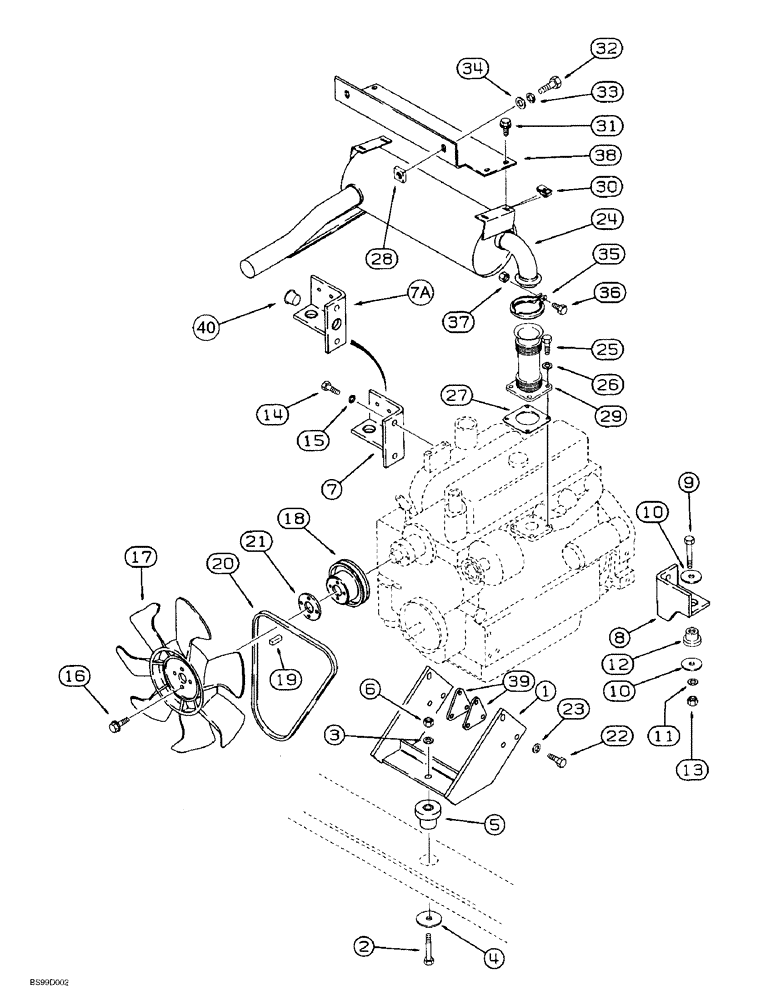

Запчасти Case IH 1838 (2-30) - ENGINE MOUNTING, FAN, FAN BELT, MUFFLER, AND EXHAUST SYSTEM (02) - ENGINE

1

127339A1

MOUNTING PARTS

MOUNT engine, rear

1шт.

2

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

3

495-21069

WASHER,5/8"

flat, 11/16 inch x 1-3/4 inch x 9/64 inch

1шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

Replaces D35009 washer 21/32" x 2 1/2" x .188", HDN

1шт.

5

A140221

MOUNTING PARTS

INSULATOR engine mount, rubber, Replaces: D133316 insulator

1шт.

6

232-14110

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

7

127342A1

MOUNTING PARTS

MOUNT engine, no longer used, order 127342A2 mount, Ref. 7A

1шт.

7a

127342A2

MOUNTING PARTS

MOUNT engine, front, left hand

1шт.

8

131078A1

SUPPORT

MOUNT engine, front, right hand

1шт.

9

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 inch NC x 2-1/2 inch

2шт.

10

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

flat, hardened, 33/64 inch x 2 inch x 1/8 inch, Replaces: B15606 washer

4шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, hardened, 17/32 inch x 1-1/16 inch x 1/8 inch

2шт.

12

H426395

MOUNTING PARTS

MOUNT engine isolation

2шт.

13

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

14

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT hex, 14 - 1.5 x 30 mm

4шт.

15

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER lock, 14 mm

4шт.

16

127109A1

FLANGE BOLT

flange

4шт.

17

133196A1

FAN

engine cooling, pusher

1шт.

This is included with the engine assembly.

1шт.

18

127152A1

FAN

PULLEY fan, water pump

1шт.

This is included with the engine assembly.

1шт.

19

126492A1

KEY

feather

1шт.

This is included with the engine assembly.

1шт.

20

127113A1

V-BELT

Fan

1шт.

This is included with the engine assembly.

1шт.

21

133197A1

SPACER

fan

1шт.

This is included with the engine assembly.

1шт.

22

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 12 - 1.25 x 30 mm

6шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, hardened, 17/32 inch x 1-1/16 inch x 1/8 inch

6шт.

24

137536A1

MUFFLER

exhaust

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

4шт.

26

H426775

WASHER

flat, special, hardened

4шт.

27

126500A1

GASKET

exhaust, Serial Range: manifold-muffler

1шт.

28

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

29

135356A1

EXHAUST SYSTEM PIPE

CONNECTOR flex

1шт.

30

H346650

NUT

U-type, 5/16 inch NC

4шт.

31

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

32

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

2шт.

35

135543A1

CLAMP,71.12mm - 71.63mm

muffler

1шт.

36

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

37

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

38

137122A1

BRACKET

mounting

1шт.

39

106418A1

SHIM

engine mount, if used

2шт.

40

353-20

PLUG

tapered, 1-3/32 inch

1шт.
