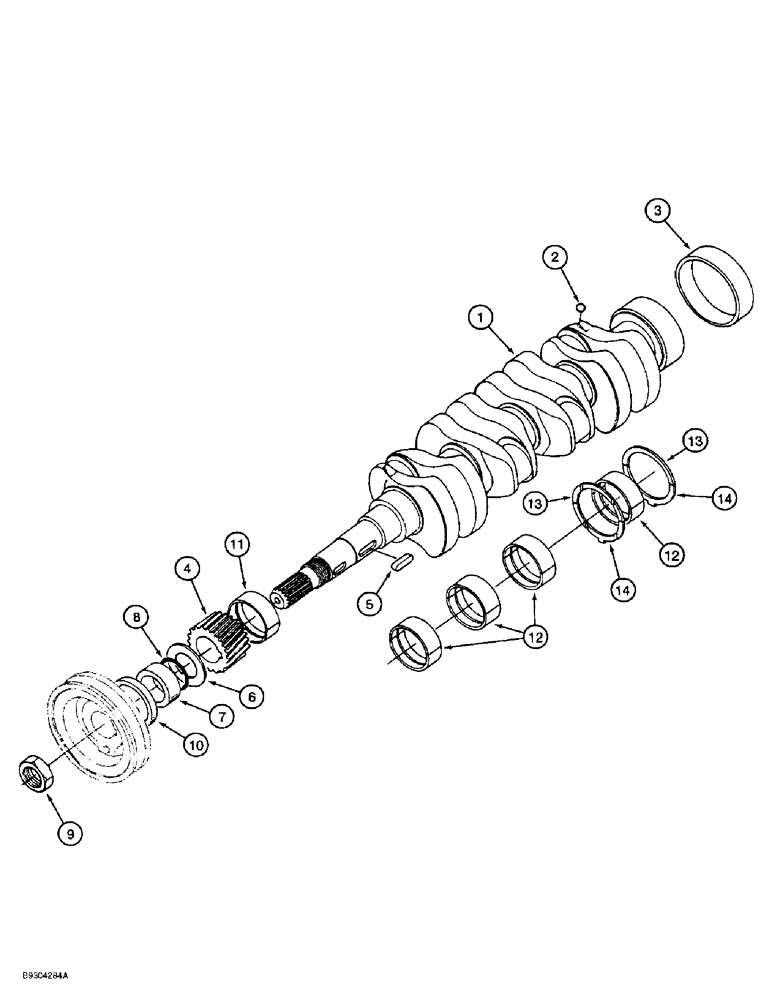

Запчасти Case IH 1838 (2-22) - CRANKSHAFT, KUBOTA V2203 ENGINE (02) - ENGINE

126512A1

CAMSHAFT

CRANKSHAFT ASSEMBLY, engine, Includes Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT engine

1шт.

2

125410A1

BALL

crankshaft

4шт.

3

126513A1

SLEEVE

crankshaft

1шт.

4

126514A1

GEAR

crankshaft

1шт.

5

126492A1

KEY

feather

1шт.

6

126515A1

SLINGER

oil

1шт.

7

126875A1

COLLAR

crankshaft

1шт.

8

126876A1

O-RING

crankshaft

1шт.

Part of Lower Gasket Kit, P/N 355815A1

1шт.

9

126877A1

NUT

crankshaft

1шт.

10

126878A1

OIL SEAL

SEAL oil

1шт.

Part of Lower Gasket Kit, P/N 355815A1

1шт.

11

126879A1

CRANKSHAFT BEARING

BEARING main crankshaft 1, standard

1шт.

11

126880A1

CRANKSHAFT BEARING

main crankshaft 1, 0.20 mm, undersize

1шт.

11

126881A1

CRANKSHAFT BEARING

main crankshaft 1, 0.40 mm, undersize

1шт.

12

126882A1

CRANKSHAFT BEARING

main crankshaft 2, standard

8шт.

12

126883A1

CRANKSHAFT BEARING

main crankshaft 2, 0.20 mm, undersize

8шт.

12

126884A1

CRANKSHAFT BEARING

main crankshaft 2, 0.40 mm, undersize

8шт.

13

125431A1

THRUST BEARING

PLATE thrust, No. 1 bearing, standard

2шт.

13

125432A1

THRUST BEARING

PLATE thrust, No. 1 bearing, 0.2 mm, oversize

2шт.

13

125433A1

THRUST BEARING

PLATE thrust, No. 1 bearing, 0.4 mm, oversize

2шт.

14

125434A1

THRUST BEARING

PLATE thrust, No. 2 bearing, standard

2шт.

14

125435A1

THRUST BEARING

PLATE thrust, No. 2 bearing, 0.2 mm, oversize

2шт.

14

125437A1

THRUST BEARING

PLATE thrust, No. 2 bearing, 0.4 mm, oversize

2шт.

355815A1

GASKET KIT

KIT lower gasket, Includes: Ref. 8 and 10 and Ref. shown on Figures 2-9, 3-9, and 3-11, Includes Ref. not used in this application

1шт.
