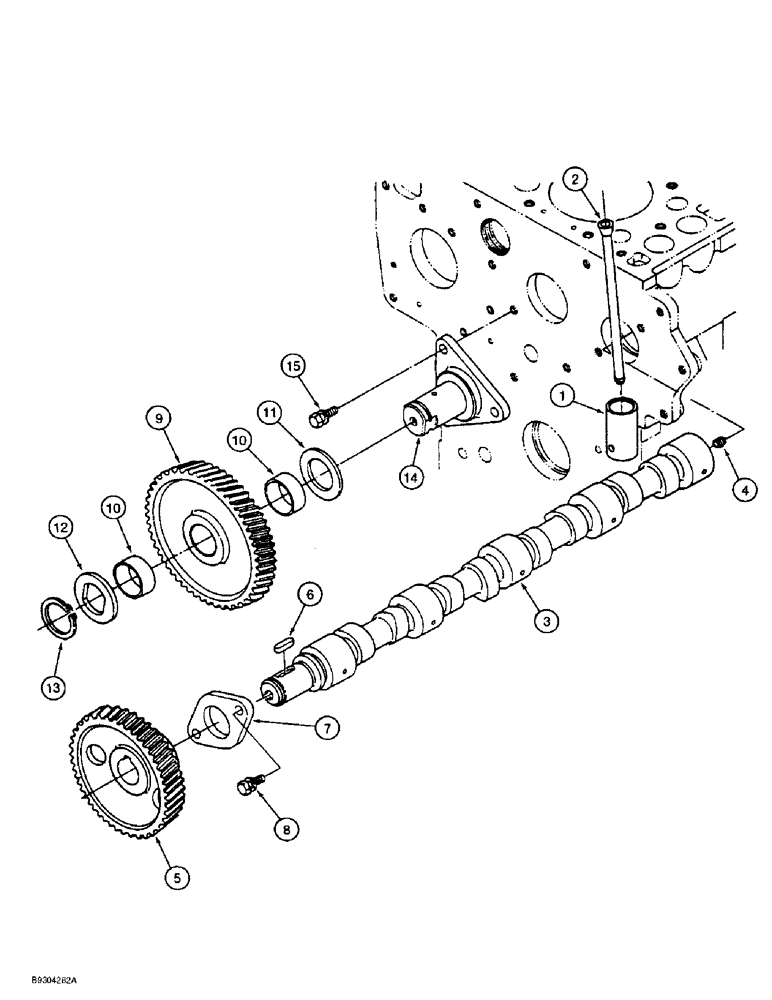

Запчасти Case IH 1838 (2-18) - CAMSHAFT, KUBOTA V2203 ENGINE (02) - ENGINE

1

126446A1

TAPPET

push rod

8шт.

2

126447A1

ROD

push

8шт.

126448A1

CAMSHAFT

ASSEMBLY, engine, Includes Ref. 3-7

1шт.

3

126489A1

CAMSHAFT

engine

1шт.

4

125339A1

SCREEN

SCREW set

1шт.

5

126491A1

CAMSHAFT

GEAR camshaft

1шт.

6

126492A1

KEY

feather

1шт.

7

126493A1

STOP

PLATE camshaft, stopper

1шт.

8

1959322C1

BOLT

hex, special

2шт.

126494A1

GEAR

ASSEMBLY, idler, Includes Ref. 9-10

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR idler

1шт.

10

126495A1

BUSHING

idler gear

2шт.

11

126496A1

COLLAR

idler gear

1шт.

12

126497A1

COLLAR

idler gear

1шт.

13

126498A1

RING

snap

1шт.

14

126499A1

SHAFT

idler gear

1шт.

15

1959322C1

BOLT

hex, special

3шт.
