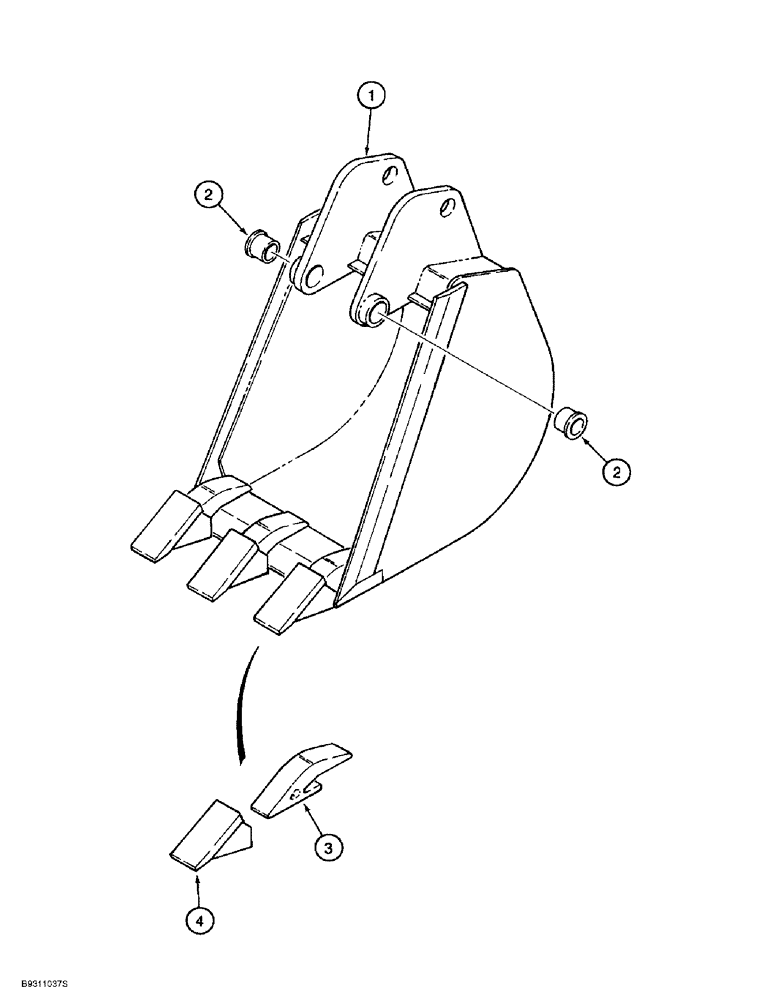

Запчасти Case IH 1838 (9-48) - BACKHOE BUCKETS, D100 OR D100XR BACKHOE, STANDARD BUCKETS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
134114A1
BUCKET
standard, order from Machinery Price List, 344 mm, 13-1/2 inch, Includes Ref. 2, P/N H672429
1шт.
2
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
bucket pivot
2шт.
H672429
TOOTH
ASSEMBLY, backhoe bucket, Includes Ref. 3-4
3шт.
3
NSS
NOT SOLD SEPARAT
SHANK tooth
1шт.
4
D27748
TOOTH
POINT bucket tooth, standard
1шт.
1
134115A1
BUCKET
standard, 458 mm, 18 inch, order from Machinery Price List, not shown, Includes Ref. 2, P/N H672429
1шт.
2
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
bucket pivot
2шт.
H672429
TOOTH
ASSEMBLY, backhoe bucket, Includes Ref. 3-4
4шт.
3
NSS
NOT SOLD SEPARAT
SHANK tooth
1шт.
4
D27748
TOOTH
POINT bucket tooth, standard
1шт.
1
134116A1
BUCKET
standard, 610 mm, 24 inch, order from Machinery Price List, not shown, Includes Ref. 2, P/N H672429
1шт.
2
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
bucket pivot
2шт.
H672429
TOOTH
ASSEMBLY, backhoe bucket, Includes Ref. 3-4
4шт.
3
NSS
NOT SOLD SEPARAT
SHANK tooth
1шт.
4
D27748
TOOTH
POINT bucket tooth, standard
1шт.
Выбрано товаров: 15
