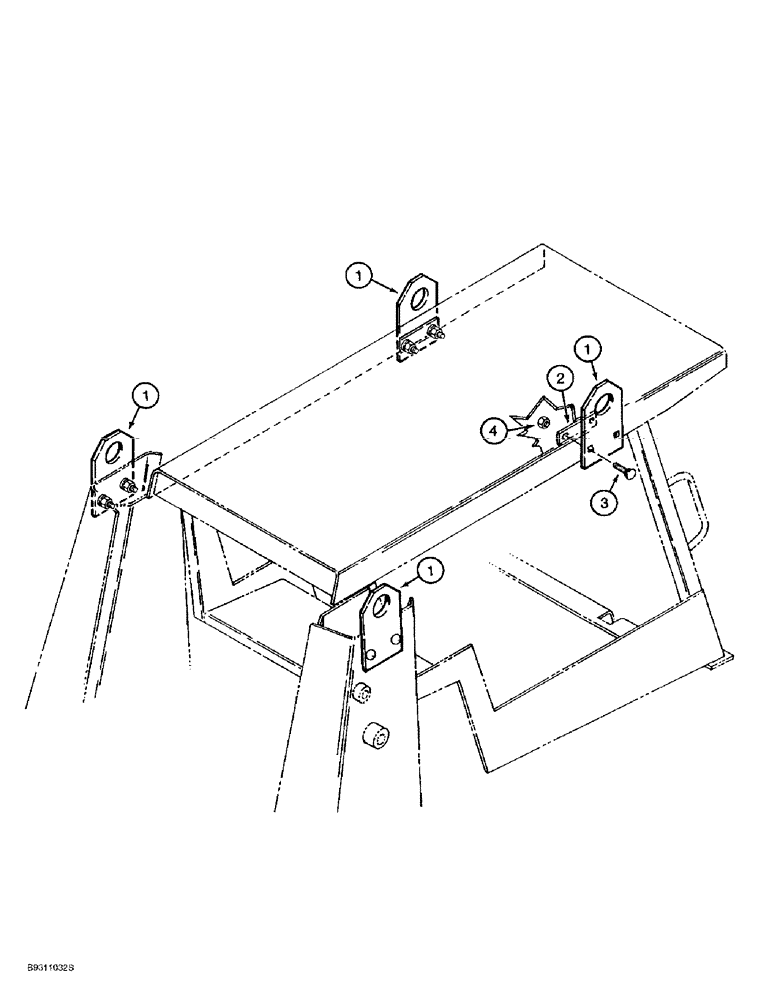

Запчасти Case IH 1838 (9-30) - LIFT BRACKETS (09) - CHASSIS/ATTACHMENTS

D102001

SET

KIT lift bracket, field attachment, order form Machinery Price List, Includes instruction sheet, Includes Ref. 1-4

1шт.

1

D132975

LIFTING RING

BRACKET lift, 229 mm tall

4шт.

2

D132976

BAR

backup, front lift bracket

2шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, if used

8шт.

4

230-4218

LOCK NUT,1/2"-13, GA

NUT hex, self locking, 1/2 inch NC, if used

8шт.
