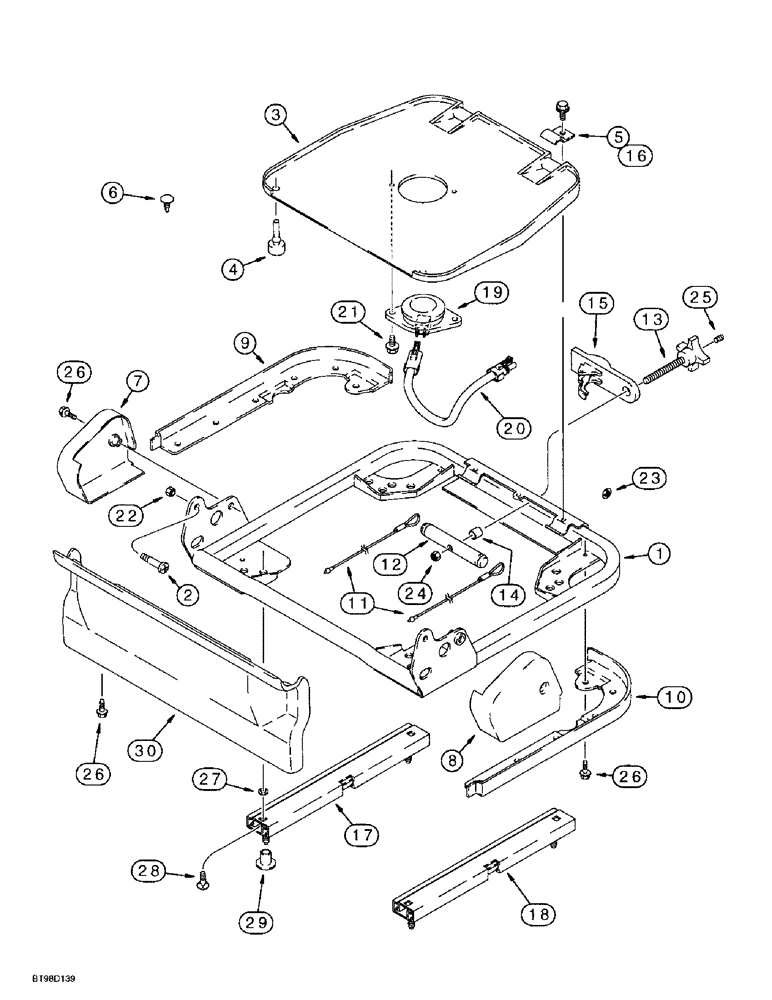

Запчасти Case IH 1838 (9-27E) - DELUXE OPERATORS SEAT, BASE AND ADJUSTING PARTS (09) - CHASSIS/ATTACHMENTS

308307A1

SEAT

ASSEMBLY, operators, deluxe, gray, Includes: Figures 9-23A and 9-27A, Includes Ref. 1-30

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME seat

1шт.

291757A1

ASSEMBLY

KIT, Includes Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BOLT special

3шт.

291758A1

ASSEMBLY

KIT seat pan, Includes Ref. 3, 5, and P/N 291752A1, 291760A1

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE base

1шт.

291752A1

ASSEMBLY

KIT bumper

1шт.

4

NSS

NOT SOLD SEPARAT

BUMPER

2шт.

5

NSS

NOT SOLD SEPARAT

CLIP

2шт.

291760A1

ASSEMBLY

KIT clip, Includes Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP

7шт.

291751A1

ASSEMBLY

KIT, Includes Ref. 7-8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER left hand

1шт.

8

NSS

NOT SOLD SEPARAT

COVER right hand

1шт.

291750A1

ASSEMBLY

KIT fender, Includes Ref. 9-10

1шт.

9

NSS

NOT SOLD SEPARAT

FENDER left hand

1шт.

10

NSS

NOT SOLD SEPARAT

FENDER right hand, not shown

1шт.

291753A1

ASSEMBLY

KIT cable, Includes Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

CABLE

2шт.

12

291772A1

BAR

weight adjustment

1шт.

291755A1

ASSEMBLY

KIT, Includes Ref. 13-14

1шт.

13

NSS

NOT SOLD SEPARAT

KNOB weight adjustment

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER

1шт.

15

291769A1

INDICATOR

weight adjuster

1шт.

291759A1

ASSEMBLY

KIT clip, Includes Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

CLIP

2шт.

291768A1

ASSEMBLY

KIT slide, Includes Ref. 17-18

1шт.

17

NSS

NOT SOLD SEPARAT

SLIDE left hand

1шт.

18

NSS

NOT SOLD SEPARAT

SLIDE right hand

1шт.

19

242306A1

SWITCH

operators presence, Replaces: 291773A1

1шт.

20

302137A2

HARNESS

seat, operator presence switch, not included in assembly, purchase separately

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT

4шт.

22

NSS

NOT SOLD SEPARAT

NUT

2шт.

23

NSS

NOT SOLD SEPARAT

NUT special

1шт.

24

NSS

NOT SOLD SEPARAT

NUT

1шт.

25

NSS

NOT SOLD SEPARAT

SETSCREW

1шт.

26

NSS

NOT SOLD SEPARAT

BOLT special

8шт.

27

NSS

NOT SOLD SEPARAT

SPACER

4шт.

28

NSS

NOT SOLD SEPARAT

BOLT special

4шт.

29

NSS

NOT SOLD SEPARAT

CAP

4шт.

30

291775A1

BELLOWS

COVER

1шт.
