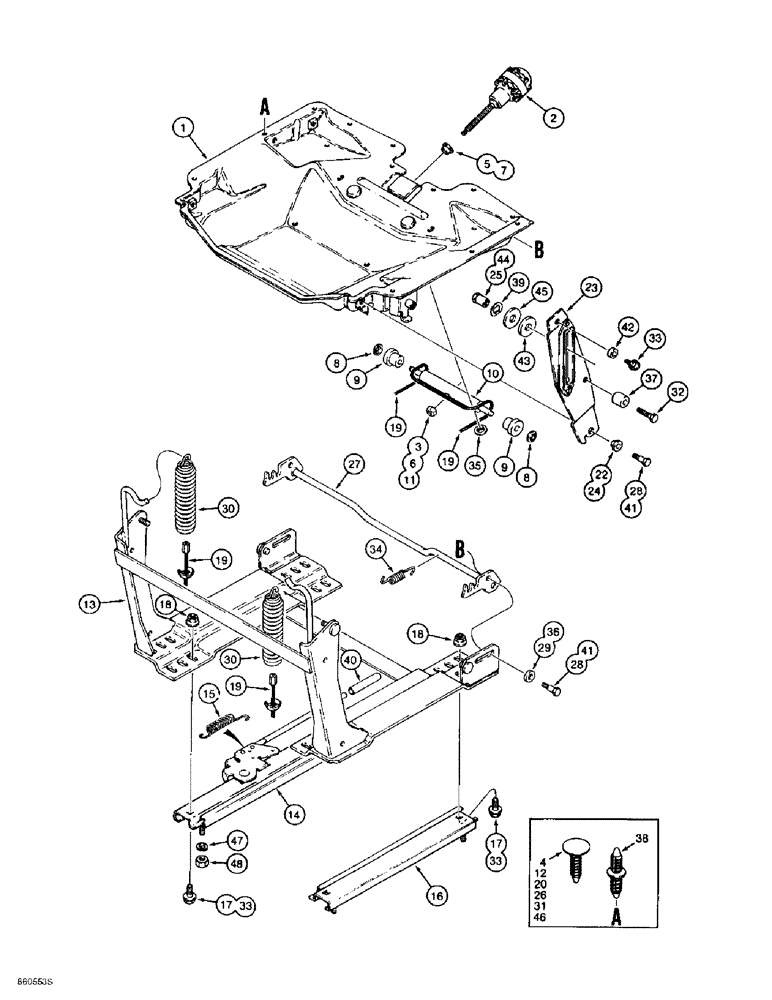

Запчасти Case IH 1838 (9-24) - DELUXE OPERATORS SEAT, BASE AND ADJUSTING PARTS (09) - CHASSIS/ATTACHMENTS

D129790

SEAT

ASSEMBLY, operators, deluxe, brown vinyl, Includes: parts on Figures 9-22, 9-27A and 9-27E

1шт.

178764A1

SEAT

ASSEMBLY, operators, deluxe, gray vinyl, Includes: parts on Figures 9-22, 9-27A and 9-27E, if used, Includes Ref. 1, 6-9, 13-18, 32-48 and P/N N13705, N13730, N13702, N13725, N13726, N13728

1шт.

1

NSS

NOT SOLD SEPARAT

BASE seat

1шт.

N13705

SET OF PARTS

KIT knob, Includes instruction sheet, Includes Ref. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

KNOB seat

1шт.

3

131-1280

JAM NUT,Jam, 1/4"-20

NUT hex, jam, self locking, 1/4 inch NC

1шт.

4

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

5

N9241

BUSHING

seat base

1шт.

6

131-1280

JAM NUT,Jam, 1/4"-20

NUT hex, jam, self locking, 1/4 inch NC

1шт.

7

N9241

BUSHING

base

1шт.

8

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8 inch

2шт.

9

N8495

RETAINER

springs, seat adjuster

2шт.

N13730

SET OF PARTS

KIT shaft, cable support, Includes instruction sheet, Includes Ref. 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT cable support

1шт.

11

131-1280

JAM NUT,Jam, 1/4"-20

NUT hex, jam, self locking, 1/4 inch NC

1шт.

12

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

13

NSS

NOT SOLD SEPARAT

FRAME seat

1шт.

14

D59695

SUPPORT

ADJUSTER seat, with handle, Replaces: N13701, Includes Ref. 15

1шт.

15

L35503

SPRING

adjuster

1шт.

16

N13607

ADJUSTER

SLIDE seat

1шт.

17

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex, 5/16 NC x 5/8 inch

4шт.

18

425-285

FLANGE NUT,Flg, 5/16"-18, G5

hex flange, 5/16 inch NC

4шт.

N13702

SET OF PARTS

KIT cable, Includes instruction sheet, Includes Ref. 19-20

1шт.

19

NSS

NOT SOLD SEPARAT

CABLE tension, operator weight

1шт.

20

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

N13725

SET OF PARTS

KIT backrest support, Includes instruction sheet, Includes Ref. 21, 23, 25, 26

1шт.

21

NSS

NOT SOLD SEPARAT

SUPPORT backrest, left hand, not shown, Includes Ref. 22

1шт.

22

N13754

BUSHING

support

1шт.

23

NSS

NOT SOLD SEPARAT

SUPPORT backrest, right hand, Includes Ref. 24

1шт.

24

N13754

BUSHING

support

1шт.

25

N13720

NUT

special

2шт.

26

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

N13726

SET OF PARTS

KIT latch, backrest tilt, Includes instruction sheet, Includes Ref. 27-29

1шт.

27

NSS

NOT SOLD SEPARAT

LATCH backrest tilt

1шт.

28

N13716

BOLT

BOLT shoulder, special, latch

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

N13728

SET OF PARTS

KIT extension spring, Includes instruction sheet, Includes Ref. 30-31

2шт.

30

NSS

NOT SOLD SEPARAT

SPRING extension

1шт.

31

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

1шт.

D129790

SEAT

ASSEMBLY, operators, deluxe, brown vinyl, Includes parts on Figures 9-22, 9-27A and 9-27E

1шт.

178764A1

SEAT

ASSEMBLY, operators, deluxe, gray vinyl, Includes parts on Figures 9-22, 9-27A and 9-27E, if used

1шт.

32

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

33

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex, 5/16 NC x 5/8 inch

2шт.

34

L35503

SPRING

seat

1шт.

35

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8 inch

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

37

K627041

BUSHING

SPACER backrest support

2шт.

38

N13712

CLIP,ELECTRICAL

CLIP rubber cover, retaining

12шт.

39

N13713

WASHER

spring, backrest support

2шт.

40

NSS

NOT SOLD SEPARAT

TIP vinyl, adjuster

1шт.

41

N13716

BOLT

BOLT shoulder, special

4шт.

42

N13718

SPACER

support

2шт.

43

N13719

WASHER

support

2шт.

44

N13720

NUT

special

2шт.

45

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

46

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

7шт.

47

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

48

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
