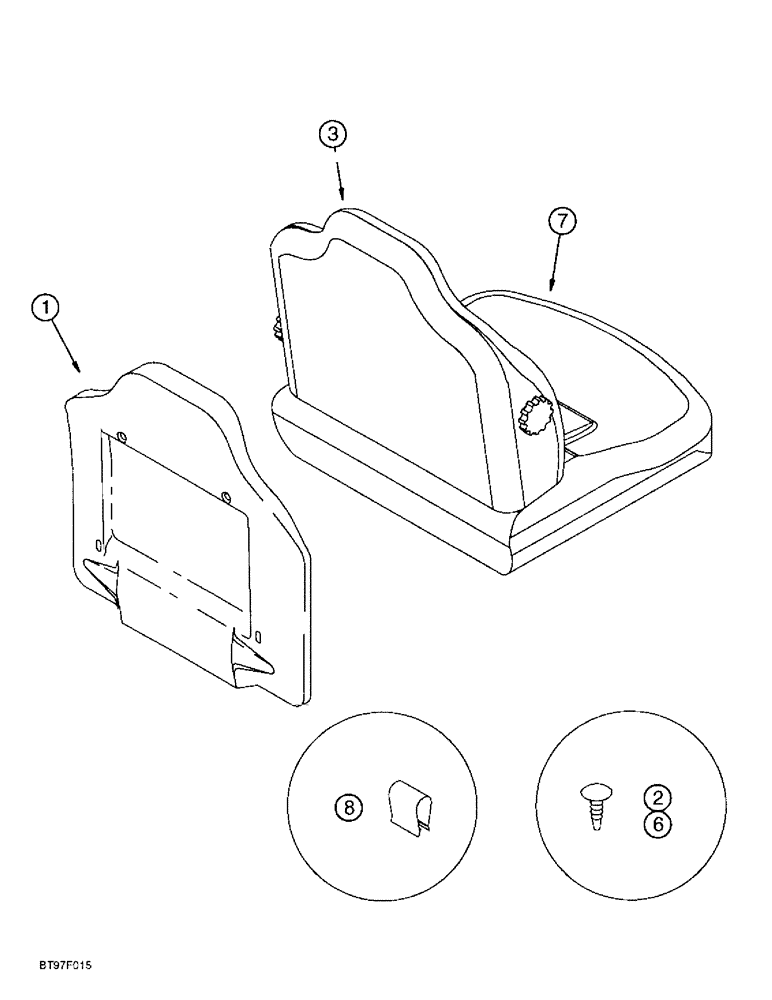

Запчасти Case IH 1838 (9-23A) - DELUXE OPERATORS SEAT, CUSHIONS AND BACKREST (09) - CHASSIS/ATTACHMENTS

308307A1

SEAT

ASSEMBLY, operators, deluxe, gray, Includes: Figures : 27A - 27E, Includes Ref. 1 and P/N 291764A1, 291763A1

1шт.

1

291770A1

PANEL

backrest

1шт.

291764A1

ASSEMBLY

KIT backrest pad, Includes P/N 291760A1, Ref. 3-5

1шт.

291760A1

ASSEMBLY

KIT clip, Includes Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

CLIP

7шт.

3

NSS

NOT SOLD SEPARAT

CUSHION backrest

1шт.

4

NSS

NOT SOLD SEPARAT

EMBLEM lumbar, not shown

1шт.

5

NSS

NOT SOLD SEPARAT

EMBLEM recliner, not shown

1шт.

291763A1

ASSEMBLY

KIT cushion, seat, Includes Ref. 7 and P/N 291760A1, 291762A1

1шт.

291760A1

ASSEMBLY

KIT clip

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP

7шт.

7

NSS

NOT SOLD SEPARAT

CUSHION seat

1шт.

291762A1

ASSEMBLY

KIT clip, Includes Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

CLIP

2шт.
