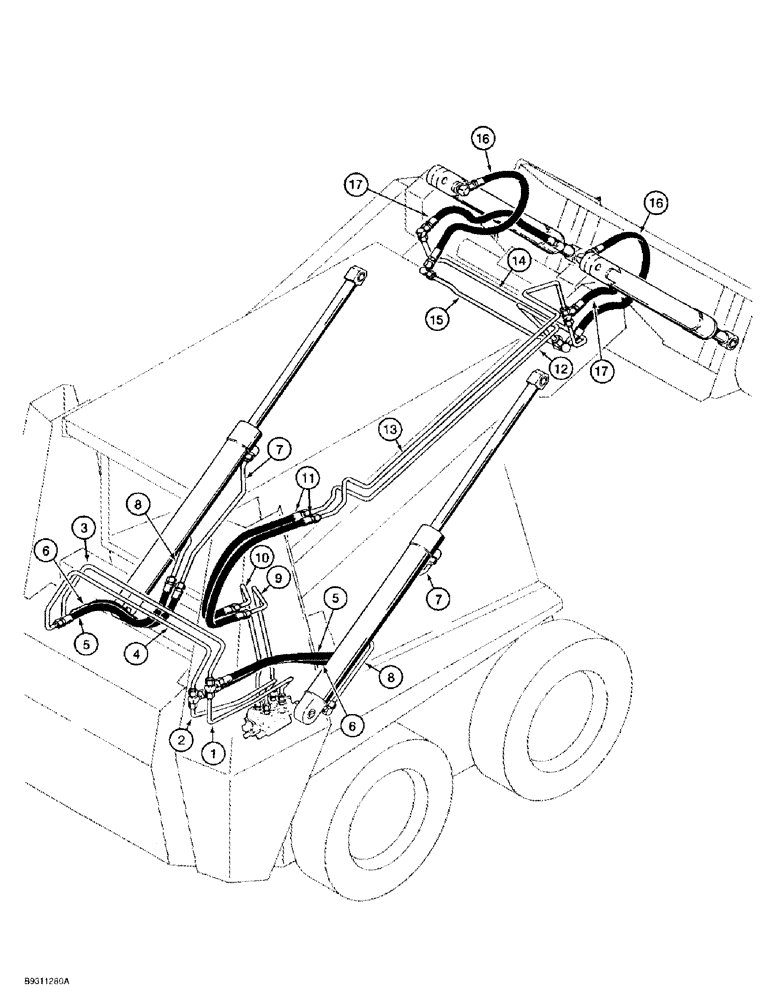

Запчасти Case IH 1838 (1-10) - PICTORIAL INDEX LOADER LIFT & BUCKET HYDRAULICS USED ON MODELS W/OUT SELF-LEVELING (00) - PICTORIAL INDEX

1

Tube at Control Valve, Port "A", Front, 8-2

1шт.

2

Tube at Control Valve, Port "B", Rear, 8-2

1шт.

3

Crossover Tube to Rod End of Lift Cylinders, 8-2

1шт.

4

Crossover Tube to Closed End of Lift Cylinders, 8-2

1шт.

5

Hoses to Rod End of Lift Cylinders, 8-2

1шт.

6

Hoses to Closed End of Lift Cylinders, 8-2

1шт.

7

Tube to Rod End of Lift Cylinders, 8-2

1шт.

8

Tube to Closed End of Lift Cylinders, 8-2

1шт.

9

Tube to Control Valve, Port "C", Front, 8-6

1шт.

10

Tube at Control Valve, Port "D", Rear, 8-6

1шт.

11

Hoses at Loader Arm, 8-6

1шт.

12

Intermediate Tube to Closed End of Bucket Tilt Cylinders, 8-6

1шт.

13

Intermediate Tube to Rod End of Bucket Tilt Cylinders, 8-6

1шт.

14

Crossover Tube to Rod End of Bucket Tilt Cylinders, 8-6

1шт.

15

Crossover Tube to Closed End of Bucket Tilt Cylinders, 8-6

1шт.

16

Hoses to Closed End of Bucket Tilt Cylinders, 8-6

1шт.

17

Hoses to Rod End of Bucket Tilt Cylinders, 8-6

1шт.
