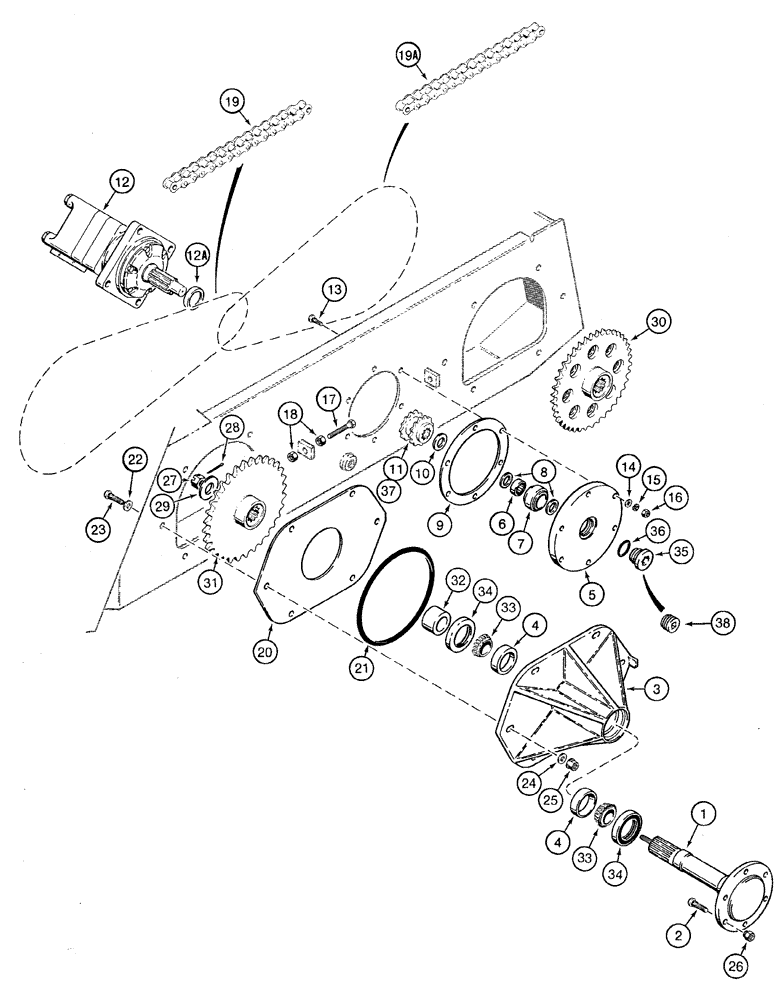

Запчасти Case IH 1835C (6-58) - AXLES AND DRIVE CHAINS, PRIOR TO P.I.N. JAF0037911 (06) - POWER TRAIN

H672982

AXLE

ASSEMBLY, wheel, no longer available, order P/N 103825A1 axle assembly, see Figure 6-60, Includes: Ref. 1 and all2's

4шт.

1

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

2

H435130

WHEEL BOLT

BOLT wheel, special, 1/2 inch NF, if used

6шт.

2

H439302

WHEEL BOLT

BOLT wheel, special, 9/16 inch NF, if used

6шт.

3

H436341

HUB,Axle

HUB axle, Replaces: P/N H435001 hub

4шт.

4

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP tapered roller bearing, 2-57/64 inch OD

2шт.

5

H435042

HOUSING

bearing, uses P/N 218-5214 plug, no longer available, order P/N H438913 housing and P/N 221-846 plug

1шт.

5

H438913

LARGE PLATE

HOUSING bearing, also order P/N 22-846 plug

2шт.

6

D80554

NEEDLE BEARING CAGE

BEARING needle, hydraulic motor shaft

1шт.

7

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

BEARING self-aligning

1шт.

8

D132922

BEARING WASHER,28.57mm ID x 38.27mm OD x 3.05mm Thk

RETAINER bearing

2шт.

9

D136535

GASKET,1.57mm Thk

bearing housing

2шт.

10

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

thrust, drive sprocket

2шт.

11

H435047

SPROCKET ASSY.

SPROCKET drive, used with P/N H435234 spacer, no longer available, order P/N H436803 sprocket

2шт.

12

REF

INSTRUCTION

MOTOR ASSEMBLY hydraulic drive, parts list see Figure 6-46 or 6-48

2шт.

12a

H435234

SPACER

drive sprocket to drive motor, used with P/N H435047 sprocket

2шт.

13

H435895

BOLT

pressed-in type, special, bearing, Serial Range: housing-chassis

12шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

12шт.

15

492-11038

LOCK WASHER,3/8"

12шт.

16

425-106

NUT,3/8"-16, Cl 5

12шт.

17

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

Hex, 1/2"-13 x 2 3/4", G5, Full Thd

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

19

H435116

CHAIN,#80H, 62 Links x 25.4mm = 1574.8mm

CHAIN drive, 62 pitches, endless, special, rear

2шт.

19a

H435117

CHAIN (CE)

CHAIN drive, 56 pitches, endless, special, front

2шт.

20

H434999

PLATE ASSY.

PLATE sealing

4шт.

21

S6042

O-RING,0.275" Thk x 9.945" ID, -449, 70 Duro

hub, 10 ID x 9/32 inch wide

4шт.

21

H436449

O-RING,255 mm ID

, Serial Range: -JAF0037367

4шт.

22

H435121

WASHER

flat, hardened, special, hub, Serial Range: bolt-chassis

24шт.

23

H435130

WHEEL BOLT

BOLT wheel, special, 1/2 inch NF, hub to chassis, pressed-in type

24шт.

24

H439308

WASHER,16mm ID x 33.3mm OD x 4.7mm Thk

flat, hardened, special

24шт.

25

131-918

FLANGE NUT,Flg, 1/2"-20, G5

large hex flange, 1/2 inch NF

24шт.

26

G49041

WHEEL NUT

wheel, special, 9/16 inch NF, if used

24шт.

26

F23214

WHEEL NUT

wheel, special, if used

24шт.

27

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

4шт.

28

32-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

4шт.

29

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

flat, special

4шт.

30

H435243

DRIVE SPROCKET

SPROCKET axle, 33 teeth

2шт.

31

H435258

DRIVE SPROCKET

SPROCKET axle, 33 teeth

2шт.

32

H435244

SPACER

axle

4шт.

33

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE tapered roller bearing, 1-25/32 inch ID

8шт.

34

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

oil

8шт.

35

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

if used Hex Soc, 1 5/16"-12 ORB

2шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

37

H436803

DRIVE SPROCKET

SPROCKET drive, Replaces: P/N H435768 sprocket, used without Ref. 12A spacer

2шт.

Has 21 teeth, two rows of ten and mates with P/N's H673449 and H673511.

1шт.

38

221-846

PLUG,Hex Soc, 1"-11 1/2

hex socket, 1 inch PT

2шт.

B93176 wheel bearing kit consists of: 2 pcs, Ref. 4 cp., 1 Ref. 33 cone and 1 Ref. 34 seal. one kit per wheel

1шт.
