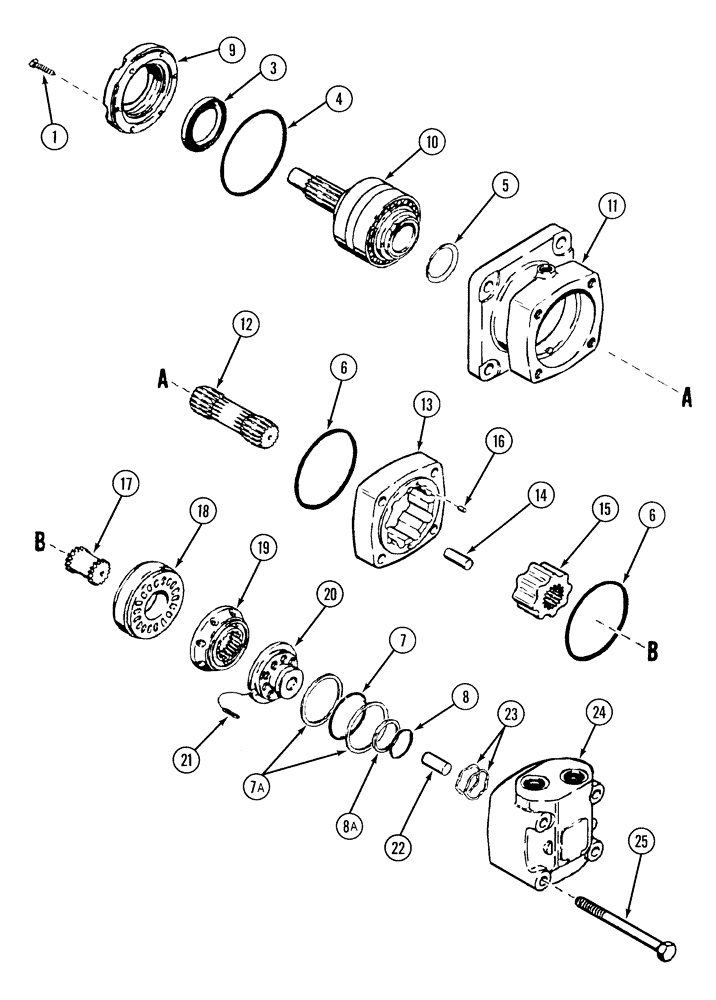

Запчасти Case IH 1835C (6-52) - HYDRAULIC DRIVE MOTOR USED ON MODELS P.I.N. JAF0283110 AND AFTER (06) - POWER TRAIN

230462A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY, hydraulic, drive, Includes: Ref. 1 - 25

1шт.

1

195268A1

SCREW

BOLT hex, full threads, special, 8-1.25 x 25 mm

6шт.

240899A1

SEAL KIT

KIT seal, motor, Includes: Ref. 3 - 8A

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING out put shaft

1шт.

5

NSS

NOT SOLD SEPARAT

RING seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING gerotor

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING thrust plate, large

1шт.

7a

NSS

NOT SOLD SEPARAT

BACKUP RING thrust plate, large

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING thrust plate, small

1шт.

8a

NSS

NOT SOLD SEPARAT

BACKUP RING thrust plate, small

1шт.

9

H436753

FLANGE

CARRIER seal

1шт.

10

195264A1

SHAFT

output, with bearings

1шт.

11

195267A1

BEARING HOUSING

HOUSING bearing

1шт.

12

H436756

SHAFT

long

1шт.

H436765

GEAR

GEROTOR ASSEMBLY, motor, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

STATOR gerotor

1шт.

14

NSS

NOT SOLD SEPARAT

ROLLER gerotor

9шт.

15

NSS

NOT SOLD SEPARAT

ROTOR gerotor

1шт.

16

E37942

GUIDE PIN

PIN guide

1шт.

17

H436757

SHAFT

short

1шт.

18

H436759

CHAMBER

MANIFOLD short shaft

1шт.

19

H436760

VALVE

disc

1шт.

20

240896A1

LARGE PLATE

PLATE thrust

1шт.

21

738-5514

LOCK PIN,M5 x 14, Slotted

PIN roll, 5 x 14 mm

1шт.

22

H436761

SPACER

port end cover

1шт.

23

240898A1

SPRING WASHER

spring

2шт.

24

240895A1

HOUSING

COVER port end

1шт.

25

195269A1

SCREW

BOLT hex, 14-2.0 x 160 mm

4шт.
